Connecting to an EA-200 Data Analyzer

You can use the CASIO Data Analyzer to sample and collect data on various everyday
natural phenomena. You can also connect the Data Analyzer to your ClassPad, and control
Data Analyzer operation from your ClassPad. You can transfer setup information from the
ClassPad to the Data Analyzer, trigger sampling from the ClassPad, and graph sample
results on your ClassPad.

Required Hardware

ClassPad: 1 unit
EA-200 Data Analyzer: 1
Special SB-62 Cable: 1
Cla Pad Operation
(1) Turn off the ClassPad and Data Analyzer.
(2) Remove the connector cover from the 3-pin communication port of the Data Analyzer,
and connect one end of the data communication cable to the port.
(3) Connect the other end of the data communication cable to the 3-pin communication
port of the ClassPad.
• For information about what you should do to transfer data, see the user
documentation that comes with the Data Analyzer.
17-2-2
Connecting the ClassPad to Another Device
20060301

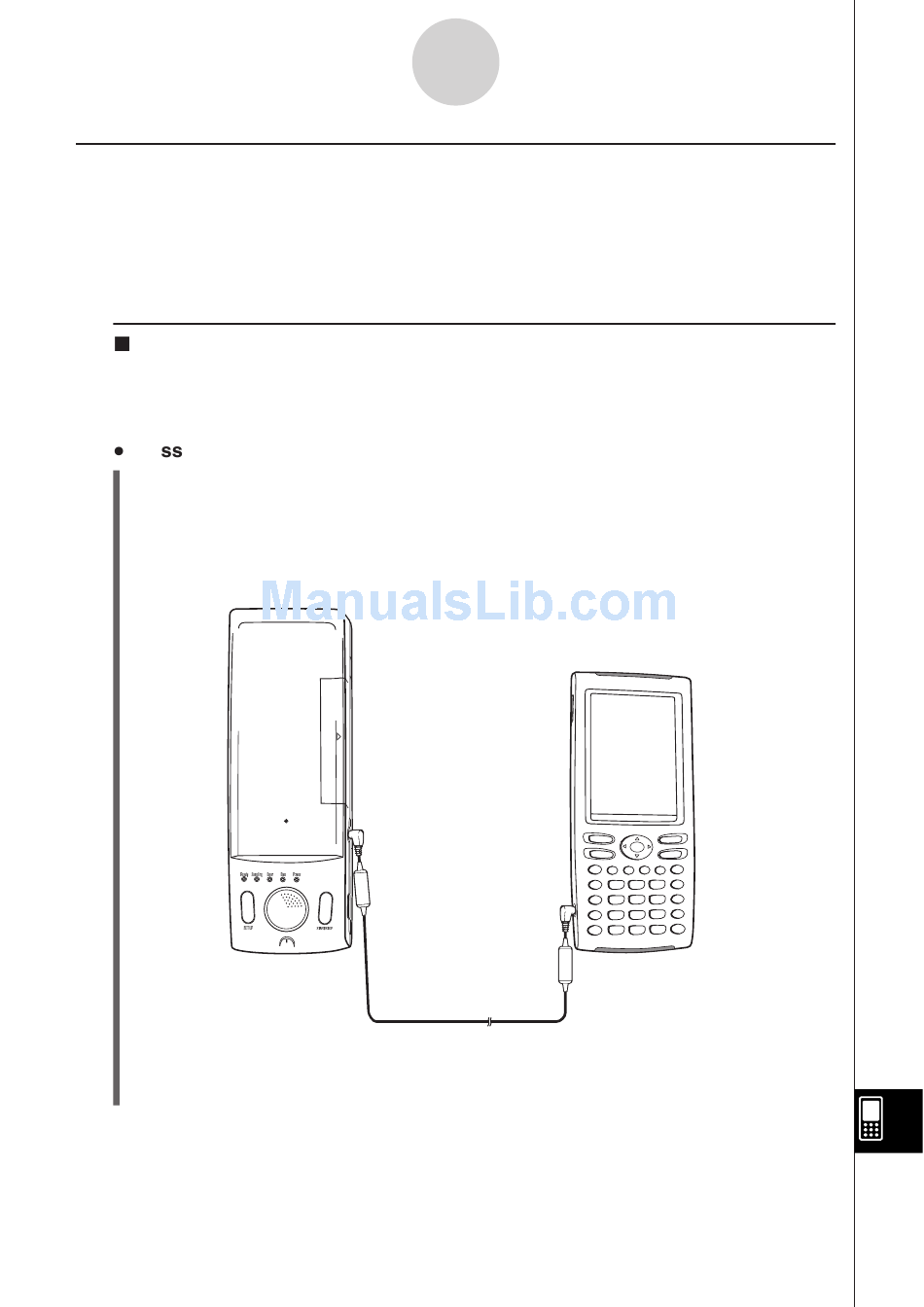

Cable
