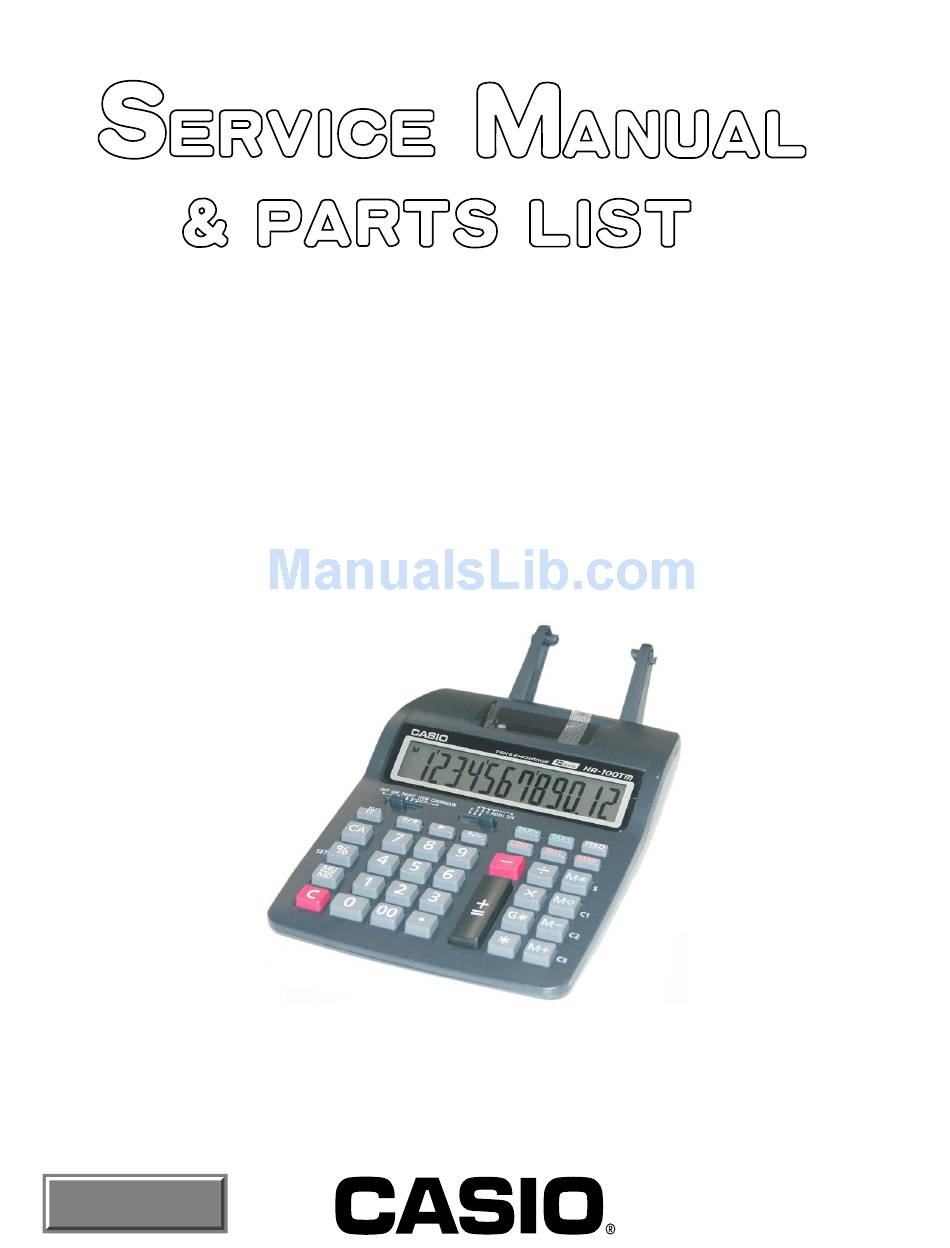

- Page 1 (without price) HR-100TM/100TM-PLUS/150TEC APR. 2006 HR-100TM INDEX Ver.1 : Aug. 2007...
-
Page 2: Table Of Contents
CONTENTS 1. SPECIFICATIONS ..................... 1 2. DISASSEMBLY ....................2 3. SCHEMATIC DIAGRAMS .................. 4 4. PARTS LIST ....................... 7 5. EXPLODED VIEW ....................8... -
Page 3: Specifications
Power supply: AC: AC adaptor (AD-A60024) HR-100TM/100TM-PLUS: Four AA-size manganese batteries provide approximately 390 hours of continu- ous display (540 hours with type R6P (SUM-3)); or printing of approximately 3,000 consecutive lines of ‘‘555555’’ with display (7,000 lines with type R6P (SUM-3)). -
Page 4: Disassembly
2. DISASSEMBLY 1. Remove the battery cover and the battery. 2. Remove two screws. 3. Remove eight hooks and remove the lower case. Hook positions 4. Unsolder five lead wires. White Yellow Orange Black 5. Unsolder the cable. — 2 —... - Page 5 6. Remove the printeer. 7. Remove nine screws. 8. Remove the main PCB and rubber pad. — 3 —...
-
Page 6: Schematic Diagrams
3. SCHEMATIC DIAGRAMS MAIN PCB (HR-100TM/100TM-PLUS) — 4 —... - Page 7 MAIN PCB (HR-150TEC) — 5 —...
- Page 8 DISPLAY — 6 —...
-
Page 9: Parts List
4. PARTS LIST Item Part Code Part Name Specufication Q'ty Applicable PCB UNIT 10238589 A82620 Common 10238590 HEAT SEAL RHA501823-001V01 Common HR-100TM/ 10236436 PRINTER/DIGITAL M-32TL-061 HR-100TM-PLUS 10236437 PRINTER/DIGITAL M-32TL-071 HR-150TEC COMPONENTS HR-100TM/ 10238557 CASE/UPPER RHA501812-001V01 HR-100TM-PLUS 10238576 CASE/UPPER RHA501812-004V01 HR-150TEC... -
Page 10: Exploded View
5. EXPLODED VIEW — 8 —... - Page 11 Ver.1 : Aug. 2007 • Correction of the 4.PARTS LIST (P7) • Correction of the 5.EXPLODED VIEW (P8) CASIO COMPUTER CO.,LTD. Overseas Service Division 6-2, Hon-machi 1-Chome Shibuya-ku, Tokyo 151-8543, Japan...
