4. Verify that the following are all selected from the screen
shown in Figure 58:
• State setting = Online
• Source of CP Values setting = Defaults and Include
NV type CPs
• Device Specific CPs setting = Update with other
CPs
5. Click Next.

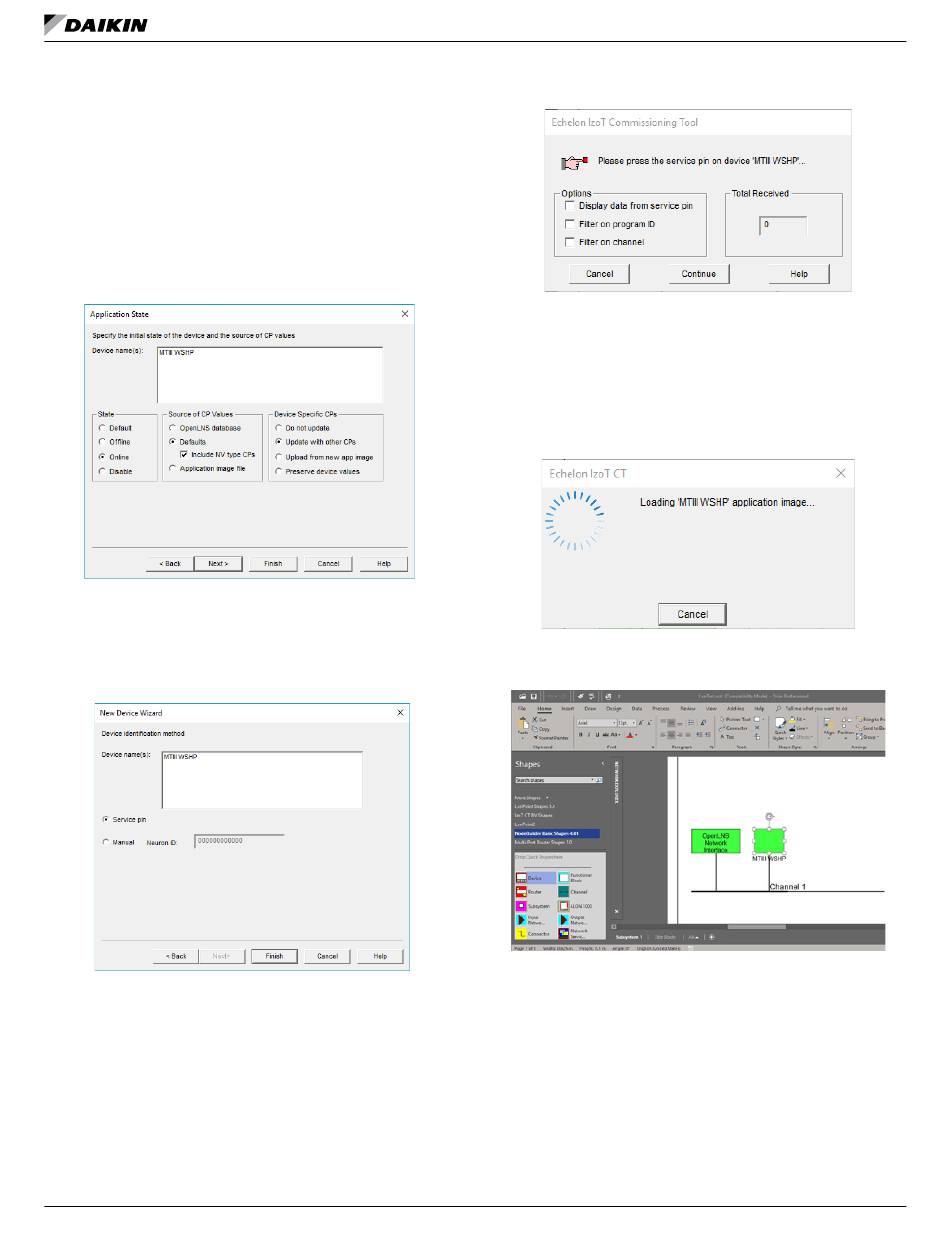

Figure 58: Device Details
6. Verify that Service pin is selected and then click Finish
(Figure 59).
Figure 59: Service Pin Screen
7. The screen in Figure 60
8. Press the service pin button on the LonWorks
communication module. Refer to
location of the service button.
www.DaikinApplied.com
.
appears.
Figure 49 for the
Download and Configuration - LonWorks
Figure 60: Service Pin Entry
At this point, the application image starts loading the
LonWorks communication module. This process takes
approximately one minute
The MTIII WSHP device changes color to green which
indicates successful commissioning
Figure 61: Loading Application
Figure 62: LonWorks Communication Module –
Commissioned
In order to program another LonWorks device, it is necessary
to first decommission the existing device by following these
three steps:
1. Right click on the commissioned LonWorks device
2. Select Commissioning
3. Left click on Decommission
27 OM 1085-6 • MICROTECH III CONTROLLER
(Figure 61).
(Figure 62).
