LonWorks Communication Module

The following section describes how to download and
commission the LonWorks communication module software
files (XIF - eXternal Interface File and NXE file) for the WSHP
unit controller. This is done using industry-standard LonWorks-
specific software such as Echelon
that the user has the application installed and is familiar with
the use of LonMaker or equivalent software.
Getting Started
You will need the following:
• LonWorks communication module installed on unit
controller with PN 668105801
• XIF/NXE files for the LonWorks communication module,
available on www.DaikinApplied.com
www.lonmark.org
• LonWorks application such as LonMaker SR4 or CT
(Commissioning Tool), available at
Requires 32-bit version of Visio software
• Twisted pair shielded cable with 3-pin connector
• Echelon TP/FT-10 to USB network interface, U10 or similar
• Computer with Windows-compatible operating system
Refer to www.echelon.com
• Standard web browser for access to
www.DaikinApplied.com
Installation and Setup
1. Verify that LonWorks software such as LonMaker SR4 or
CT is installed.
2. Verify that a LonWorks communication module is
properly installed on the unit controller. Refer to
available on www.DaikinApplied.com.
3. Download the LonWorks communication module
XIF/NXE files to your hard drive. Refer to
www.DaikinApplied.com
4. Connect TP/FT-10 network channel to the computer
using the USB network interface.

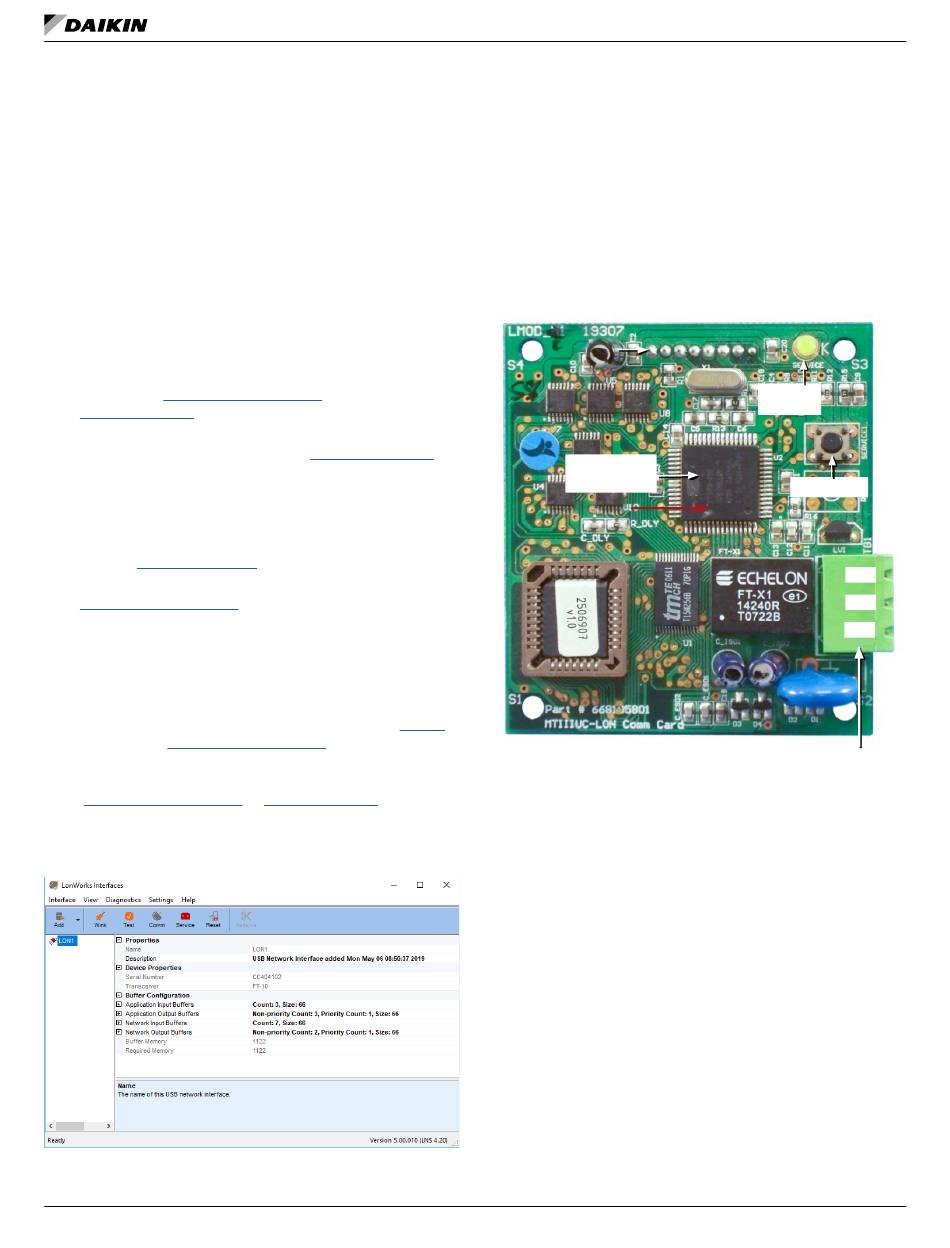

Figure 48: LonWorks Interface Name
OM 1085-6 • MICROTECH III CONTROLLER
LonMaker. It is assumed
®
or
www.echelon.com.
for details
IM 927,
or www.lonmark.org.

Download and Configuration - LonWorks

5. Determine the LonWorks Interface name for later
reference. Do this by navigating to Control Panel/
LonWorks Interfaces
6. Insert the other end of the TP/FT-10 connector to
the LonWorks communication module pins A and B
(Figure 49).
7. Apply power to the unit controller.
Figure 49: LonWorks Communication Module Main
Components
FT 3150 Smart
Transceiver
LonWorks Software
Version Label
NOTE: If device has not been commissioned, the yellow
Service LED flashes ON/OFF once every half
second. Refer to the Troubleshooting Guide and FAQ
for more detailed descriptions of LED activity.
24
Download and Configuration - LonWorks
(Figure 48).
Service LED
Service Pin
Pin3
Pin2
Pin1
TB1 Network Connector
Pin3: No Connection
Pin2: Signal B / -
Pin1: Signal A / +
