8. The New Device Wizard then opens
9. Provide a Device name and then select Create new
device template.

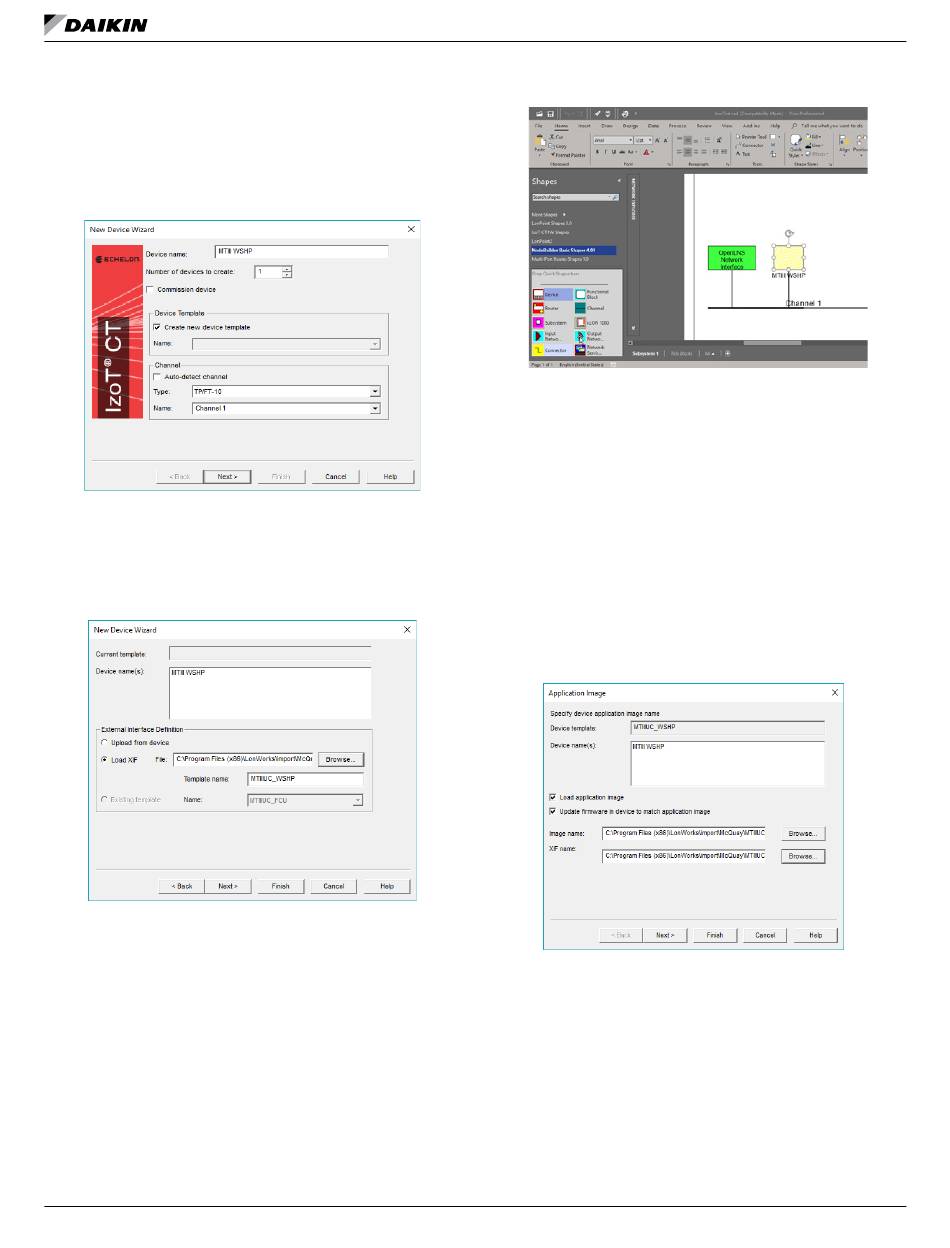

10. Click Next. The screen shown in
Figure 54: New Device Template
11. Ensure that Load XIF is selected.
12. Click Browse to locate the LonWorks communication
module XIF file from the hard drive and then click Finish.
Figure 55: XIF Definition
13. The network drawing screen now displays the new
device (Figure 56).
14. The MTIII WSHP LonWorks device appears in yellow,
indicating the device is decommissioned.
OM 1085-6 • MICROTECH III CONTROLLER
(Figure 54).
Figure 55 appears.
Download and Configuration - LonWorks
Figure 56: Network Drawing

Commissioning the LonWorks

Communication Module

The LonWorks communication module is ready for network
commissioning after the Device Template has been properly
loaded into CT using the XIF file and the WSHP device exists
in the network drawing area
Follow these steps to begin the commissioning process:
1. Right click on the decommissioned LonWorks device and
select Commissioning and then left click on Commission.
2. Select both Load application image and Update firmware
in device to match application image
Figure 57: Application Image Details
3. Click Browse to locate the LonWorks communication
NXE Image file from where it was saved and then click
Next.
26
(Figure 56).
(Figure 57).
