- Page 1 Control and pump unit for solar systems Operating and installation instructions Control and pump unit for solar systems English Operating and installation instructions EKSR3PA EKSRDS1A...
-
Page 3: Table Of Contents
Final shutdown ..................20 EKSR3PA + EKSRDS1A... - Page 4 List of keywords ................39 Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems...
-
Page 5: Safety
Relevant documents Documents listed below are part of the technical documentation of the Daikin solar system and therefore must be observed. The documents are included in the scope of supply of the individual components. -
Page 6: Avoid Danger
Daikin solar installations are state-of-the-art and are built to meet all recognised technical requirements. However, improper use can lead to serious injuries or death, as well as cause material damage. To prevent such risks, install and operate the Daikin solar installation only: –... -
Page 7: Product Description
Power EKHWE* Mains EKSOLHWAV1 Fig. 2-1 Standard design of a Daikin solar system (Daikin recommends a double-sided connection) Solar panel field EKHB* Internal unit of the air-water MAG Diaphragm pressure expansion vessel (building Solar feed line (at the top of the solar panels) -
Page 8: Brief Description

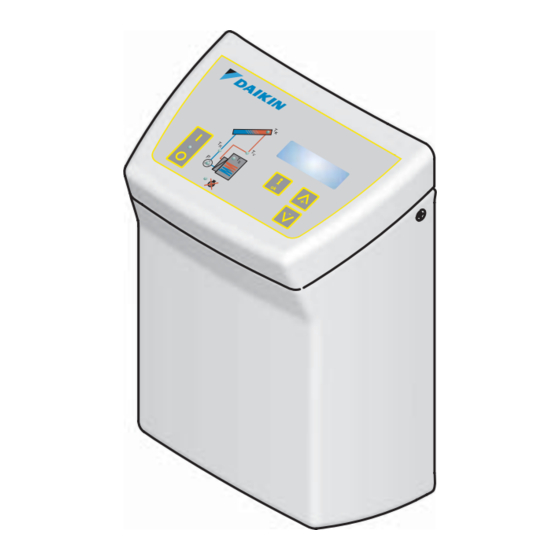

You will find detailed information on the storage tanks in their respective installation and operating manuals. Electronic control The fully electronic control system of the controller EKSR3PA ensures optimum utilisation of the solar heat (hot water generation) and that all safety-relevant aspects are complied with. All parameters needed for trouble-free operation have been preset at factory. -
Page 9: Accessories
– Circulation pump – Fitting material Fig. 2-4 Solar connection kit EKSOLHWAV1 Solar module EKRP1HBAA For connecting the air-water heat pump EKHBH*/ EKHBX* to the Daikin solar system. Consists of: – Solar board – Connection cables – Fitting material Fig. 2-5... -
Page 10: Installation
Installation System concepts Installation DAIKIN solar systems are usually set up according to one of the following system layouts. 3.1.1 Parallel connection Fig. 3-1 Solar panel connected at both sides Fig. 3-2 Solar panel field with both connections at one end (recommended) (max. -
Page 11: Pump Unit Eksrds1A
Leaking gas in the immediate proximity of electrical components can cause an explosion. • The Control and pump unit for solar systems EKSR3PA + EKSRDS1A and electrical components should not be installed in locations where there is a danger of flammable gas escaping. -
Page 12: Controller Eksr3Pa
3. Unhook the control system from the housing baseplate. 4. Mount the housing baseplate in the vicinity of the pump unit EKSRDS1A on the wall. Fig. 3-5 Removing and fixing the control unit Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... -
Page 13: Electrical Connections
1. Check the power supply voltage at the house junction box (~230 V, 50 Hz). 2. Disconnect the junction box of the domestic installation. 3. Lay the connection cable from the control unit EKSR3PA to the individual components and connect. - Page 14 EKSOLHWAV1 EKHWE* EKSRDS1A EKSOLHWAV1 EKHWE* Fig. 3-13 Connection cable for solar priority on EKHBH/X_AA and Fig. 3-14 Connection cable for solar priority on EKHBH/X_BA EKHBH/X_AB Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1...
-
Page 15: Pump Unit Eksrds1A - Electrical Connection
(included in supply) into the bottom connection on the hot water storage tank. EKSOLHWAV1 Fig. 3-18 Position storage temperature Fig. 3-19 Installation storage temperature sensor sensor t EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems 4PW56033-1... -
Page 16: Flowsensor (Optional)
EKSFLP12A is between 0 and 12 l/min (flow volume) and 0 to 120 °C (feed temperature). The measured values are shown on the control unit EKSR3PA display. The control system EKSR3PA automatically sets the appropriate flow rate when the system is in operation by regulating the speed of the solar panel circulation pump. -
Page 17: Start-Up And Taking Out Of Service
The solar system cannot be started until all hydraulic and electrical connections have been completed. An incorrect start-up will adversely affect the function and may damage the complete system. Installation and start-up must therefore must conducted by DAIKIN-authorised and trained heating experts. 4.1.1 Filling solar panel circuit CAUTION! Danger of scalding by hot solar fluid and escaping steam. - Page 18 – If necessary, correct the system pressure by adding solar fluid (see working step 4 onwards). 15. Separate the filling/flushing pump with hoses from the pump unit EKSRDS1A. 16. Open the blocking of the flow meter completely (slot vertical). Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1...
-
Page 19: Regulate The Flow Rate On The Solar Panel Circuit
Start-up and taking out of service 4.1.2 Regulate the flow rate on the solar panel circuit 1. Connect the mains line of the control unit EKSR3PA to the plug socket of the domestic supply (~230 V, 50 Hz) and provide power supply. -
Page 20: Taking Out Of Service
• Switch on the EKSR3PA + EKSRDS1A control and pump unit again (see Chapter 4.2.1 "Temporary shutdown“). • Disconnect the EKSR3PA + EKSRDS1A control and pump unit from all electrical and water connections. • Dismantle the EKSR3PA + EKSRDS1A control and pump unit in accordance with the assembly instructions (Chapter 3 "Montage“) in reverse order. -
Page 21: Operation
Indicator for solar return temperature display Operation of control systems Because of continual improvements for optimum use of the EKSR3PA + EKSRDS1A control and pump unit, the solar control system is fitted with an update function. Therefore, some functions described in this chapter are applicable to specific software versions only. - Page 22 Time (Zeit Switch-off delay BSK the parameters. Time (Zeit Switch-on delay BSK Time (Zeit Reverse condition delay time Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1...
-
Page 23: Contact For Solar Priority (Bsk)
System considerations mean that hot water cannot be heated simultaneously with the solar system and the air-water heat pump. For this reason, the contact for solar priority (BSK) is closed by the control system EKSR3PA when the solar panel circulation pump P is switched on. -
Page 24: Output Calculation, Maximum Values And Yield Count
"Flow" indicator beside the measured flow value. A typical operating sequence of a modulating solar system is shown in Fig 5-3. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... - Page 25 Fig. 5-4 Example of modulation operation with blockage of the lower pump stages in systems with FlowSensor when the minimum flow rate is not achieved EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems 4PW56033-1...
-
Page 26: Global Reset Function
"F" is shown in the left column of the display. • Replace faulty sensor or eliminate leak. • Start system manually. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... -
Page 27: Setting And Menu Operation
– At the initial start-up the user is prompted to select the display language. – The function of the pump and the status indicator can only be checked manually for security reasons (see chapter 5.2.4). EKSR3PA + EKSRDS1A Operating and installation instructions... -
Page 28: Operating Display
The control system always jumps back to the operating mode if no button is pressed for about 10 minutes. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... - Page 29 Operation Fig. 5-9 Settings menu EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems 4PW56033-1...
-
Page 30: Password Input
Up to 10 speed stages can be disabled here. The percentage output for the various stages is displayed under "Output" as well as the allocation number of the output stage (starting with 01 for the lowest output) and the activity status. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... -
Page 31: Correction Values For Measuring Points
2400, 4800, Baud rate Step speed of data output — — 19200 — 9600, 19200 Tab. 5-5 Parameter overview User adjustable Technician informative — not available EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems 4PW56033-1... - Page 32 The owner of the system must be informed of possible audible bubbling noises and vapour pressure pulses during start-up in this case. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1...
-
Page 33: Additional Settings For Your Solar System
If no hot water is drawn off for several days and if the storage tank temperature does not reach at least 60 °C as a result of the solar system, one-off heating to over 60 °C or draining of the stored hot water is recommended for hygienic reasons (Legionella protection). EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems... -
Page 34: Faults And Malfunctions
– In addition, the solar control system automatically intervenes in the operation of the system. All other sensor values can still be reached using the arrow keys. Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... -
Page 35: Troubleshooting
• Rectification of damage to live components of the EKSR3PA + EKSRDS1A must only be carried out by heating engineers authorised and recognised by the energy supply company. - Page 36 Special instructions for electrical sensors Use only original DAIKIN spare parts. • Evaluate the display of the solar control system EKSR3PA. • Remove casing of control unit and remove and disconnect the relevant sensors. • Check the contact points of the sensor in question, if necessary measure the resistance (or the DC voltage for feed temper- ature and flow rate sensors) on the sensor side.
-
Page 37: Technical Data
Solar panel circulation FlowSensor EKSFLP12A (accessory) Solar panel temperature sensor pump P Storage temperature sensor t Connection cable for Fuse solar priority Power Power supply EKSR3PA + EKSRDS1A Operating and installation instructions Control and pump unit for solar systems 4PW56033-1... -
Page 38: Diagrams
Sensor table of the solar sensors Diagrams Fig. 7-2 Resistance characteristics of the solar sensors Fig. 7-3 Characteristics of the FlowSensor Sensor resistance (PTC, Pt 1000) Flow rate Temperature Temperature Operating and installation instructions EKSR3PA + EKSRDS1A Control and pump unit for solar systems 4PW56033-1... -
Page 39: List Of Keywords
Flow rate on the flow rate regulator ....33 Recommended setting ranges ......31 EKSR3PA + EKSRDS1A Operating and installation instructions... - Page 40 4PW56033-1...
