Daikin MicroTech III Troubleshooting Manual page 21

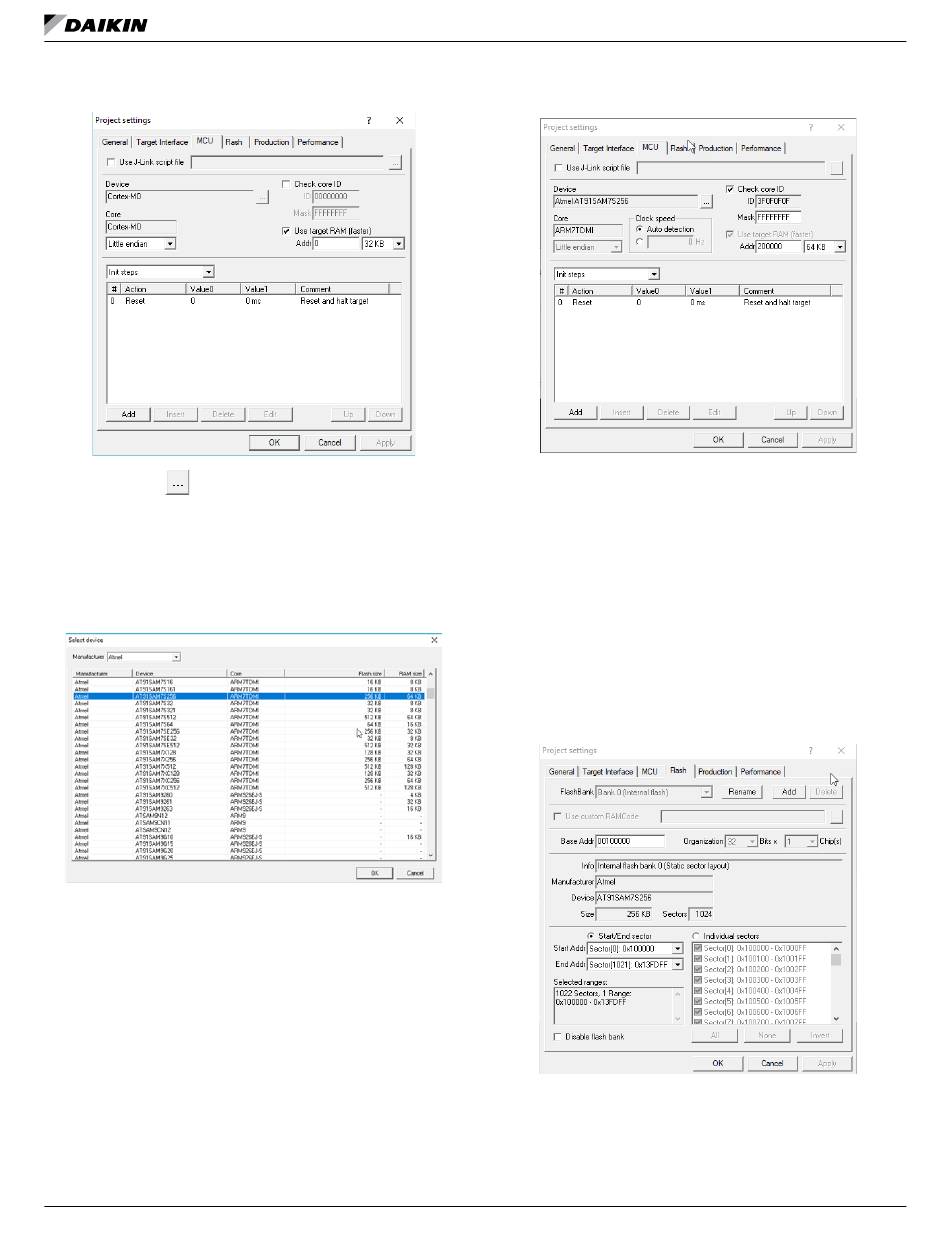

Figure 38: MCU Tab
7. Click on the button in the Device area to select the
MCU.
8. Select Atmel from the Manufacturer drop-down box
(Figure 39).
9. Scroll down to select AT91SAM7S256 and then click OK.
Figure 39: MCU Tab - Device Selection
10. Verify that Device is now set to Atmel AT91SAM7S256
(Figure 40).
11. Verify 200000 is in the Addr box and 64KB is selected
from the drop-down menu, then click Apply.
www.DaikinApplied.com
Download and Configuration - BACnet
Figure 40: MCU Tab - Verify Selection
12. Click on the Flash tab
following:
a. Base Addr = 00100000
b. Organization = 32
c. Bits x = 1
12. Select the Start/End sector radio button.
13. Choose Sector[0]: 0x100000 as the Start Addr.
14. Choose Sector[1021]: 0x13FDFF as the End Addr and
then click Apply.
Figure 41: Flash Tab
21 OM 1085-6 • MICROTECH III CONTROLLER
(Figure 41) and verify the
