Programmer - Daikin MicroTech III Troubleshooting Manual

Downloading to Baseboard #668105601
or I/O Expansion Module #668105702
with Renesas E8a Programmer
Getting Started
You will need the following:
• WSHP unit controller baseboard with hardware part
number 668105601 or I/O expansion board with hardware
part number 668105702.
• Renesas E8a programmer hardware and software
development kit. Specifications and links to the Renesas
website provided in Table 5.
• Computer with a Windows-compatible operating system.
Refer to www.renesas.com
• WSHP unit controller or I/O expansion module ".mot"
file saved to your hard drive. Contact the ATS Technical
Support Team at 315-282-6434 to request a copy of this
software file.
Installing the Renesas E8a Programmer
1. Acquire the Renesas E8a programmer and interface
cable as described in
2. Download the latest Renesas Flash Development Toolkit
software available at www.renesas.com/us/en/products/
software-tools/tools/programmer/flash-development-
toolkit-programming-gui.html.
NOTE: It is important that you install the Flash Development
Toolkit software before connecting the programmer
to the USB port on your computer. The USB driver is
automatically installed.
3. Connect the E8a programmer to the USB port on your
computer using the USB interface cable.
a. Connect the mini-plug of the USB interface cable
to the USB I/F connector of the E8a.
b. Connect the plug of the USB interface cable to the
USB port on your computer.
NOTE: The E8a programmer is active once connected to the
USB interface cable.
4. Power down the unit controller.
5. Connect the E8a programmer to the MCU:
a. Connect the interface ribbon cable to the user-side
connector of the E8a programmer
b. Carefully insert the Renesas E8a 14-pin connector
to the interface cable PCB header pins labeled
"E8a Emulator"
c. Connect the 10-pin connector to the JTAG port on
the control board.
d. Place the RUN/PRG jumper in the PRG position
(Figure 26).
6. Apply power to the unit controller.
www.DaikinApplied.com
for more information.
Table 5.
(Figure 10).
(Figure 11).

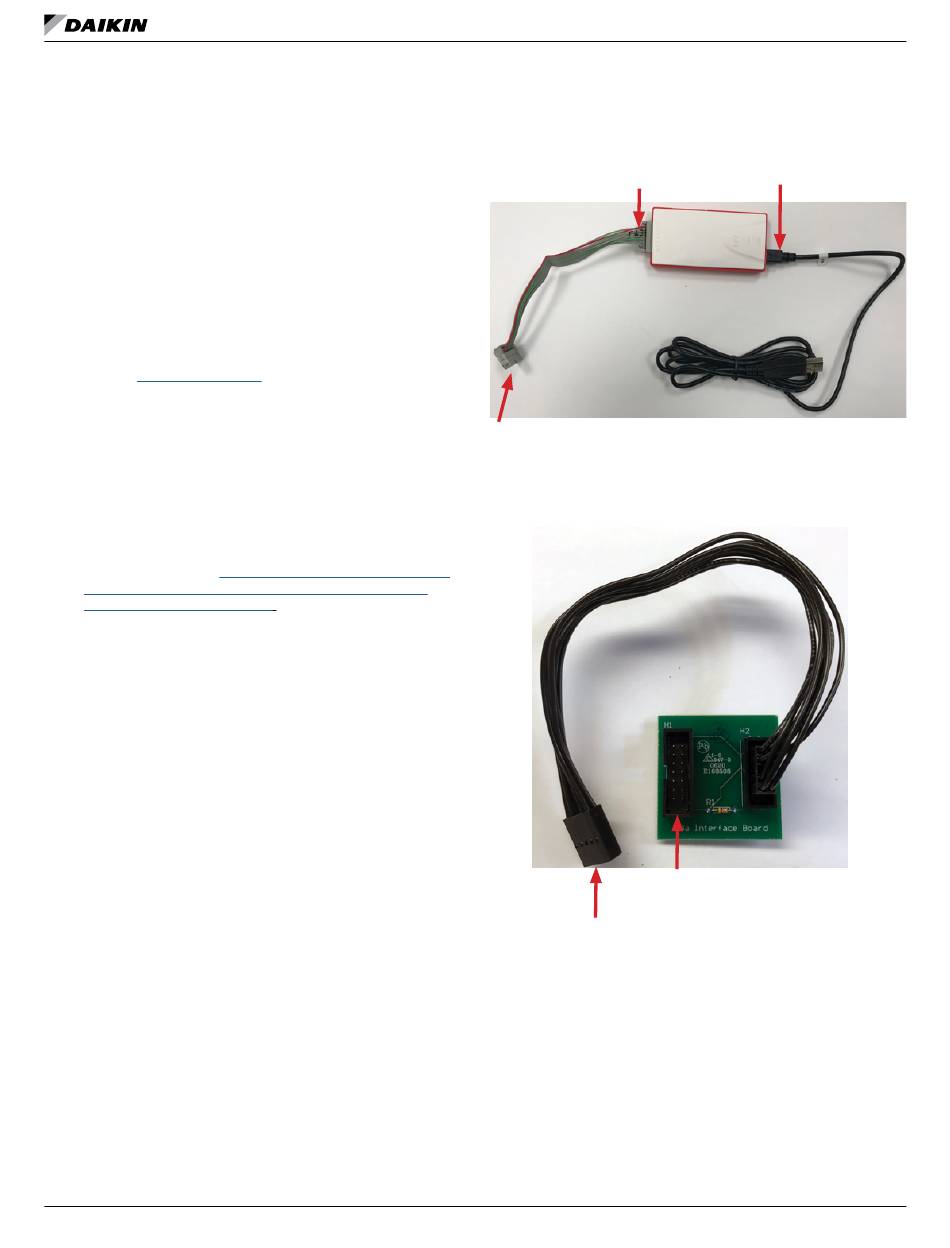

Figure 10: Renesas E8a Programmer with USB and
Interface Ribbon Cable Connected
User Side Port
with 14-pin Ribbon
Cable Connected
14-Pin Ribbon Cable Connection to Custom Inter-
face Cable
Figure 11: Custom Interface Cable for Renesas E8a

Programmer

H2, 10-Pin Connection to Custom
Interface Cable
NOTE: Do not remove power from the unit controller
or unplug the USB interface cable during this
process. The power supplied from the board to the
programmer could possibly damage the hardware.
7. Open the Renesas Flash Development Toolkit (FDT)
software using the "Flash Development Toolkit 4.09
Basic" shortcut. The software must be configured if using
the FTD software for the first time to download to the unit
controller. Proceed to Step 10 to complete this process.
Otherwise, skip to
11 OM 1085-6 • MICROTECH III CONTROLLER
Download and Configuration
USB I/F Port with
Interface Cable
Connected
H1, 14-Pin Header to Renesas
E8a Programmer
Step 20.
