Daikin MicroTech III Troubleshooting Manual page 16

controller being downloaded, verify that the Programming
Jumper on the I/O expansion module is in the RUN
position.
10. If the I/O expansion module is being downloaded, verify
that the Programming Jumper on the unit controller is in
the RUN position.
11. Prior to launching Flasher, check the communication port
(i.e. COM1 or COM2) to which the Flasher5 hardware
is connected. The port number is required for Step 13.
Follow these steps to determine the port number:

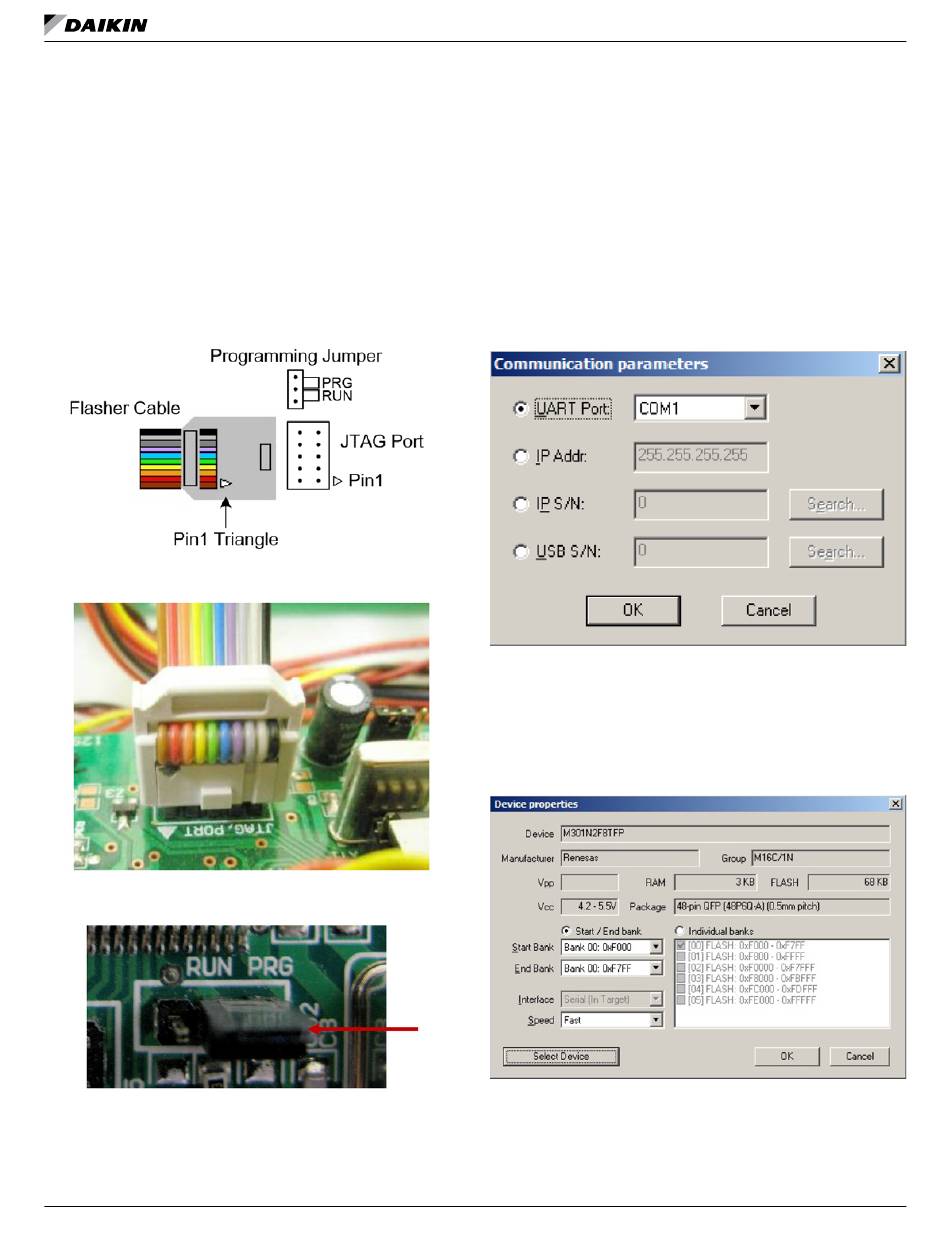

Figure 24: Flasher Cable Orientation and Programming
Jumper
Figure 25: Flasher Cable Connected to JTAG Port
Figure 26: Programming Jumper in the PRG Position
12. Navigate to the Control Panel and select System/
Hardware/Device Manager/Ports.
OM 1085-6 • MICROTECH III CONTROLLER
Download and Configuration
13. Verify the communication port shown (i.e. COM1, COM2,
etc).
14. Launch the Flasher program from the desktop shortcut
icon.
15. If this is the first time downloading to the unit controller
since installing the Flasher program, it is necessary to
configure the software. If this has already been done,
proceed to Step 24. Otherwise, follow Steps 16-23.
16. Go to the Options menu and select Communications.
Select the communications port (as determined from
Step 13) as shown in
Figure 27: Communications Parameters Menu
17. Navigate to the Options menu
a. Click on Device.
b. Click Select Device in the Device Properties
window. See Figure
Figure 28: Device Properties
When the Select Device window shown in
17. Select Renesas in the Manufacturer drop-down box.
18. Select M38507 in the Group drop-down box.
16
Figure 27 and then click OK.
28.
Figure 29 appears:
