Rear Tire Clearance : Full Suspension
Applies to:
•
saddles
•
seat posts
•
rear racks
•
Dropper posts
•
any accessory with
possible collision with
the moving tire.
To check clearance:
1.
Release all the air from the rear shock.
Remove the coil spring from coil shocks.
spring coil (removal should only be done
by a professional bike mechanic). Do not
disconnect or remove the shock.
2. Compress the suspension fully with the
tire inflated to its maximum inflation
pressure.
3. At various points across the tire, measure
the distance between the tire and the
component or accessory.
4. If there is less than 10 mm of clearance
available, the component or accessory
must be adjusted or changed until l there
is at least 10 mm of clearance.

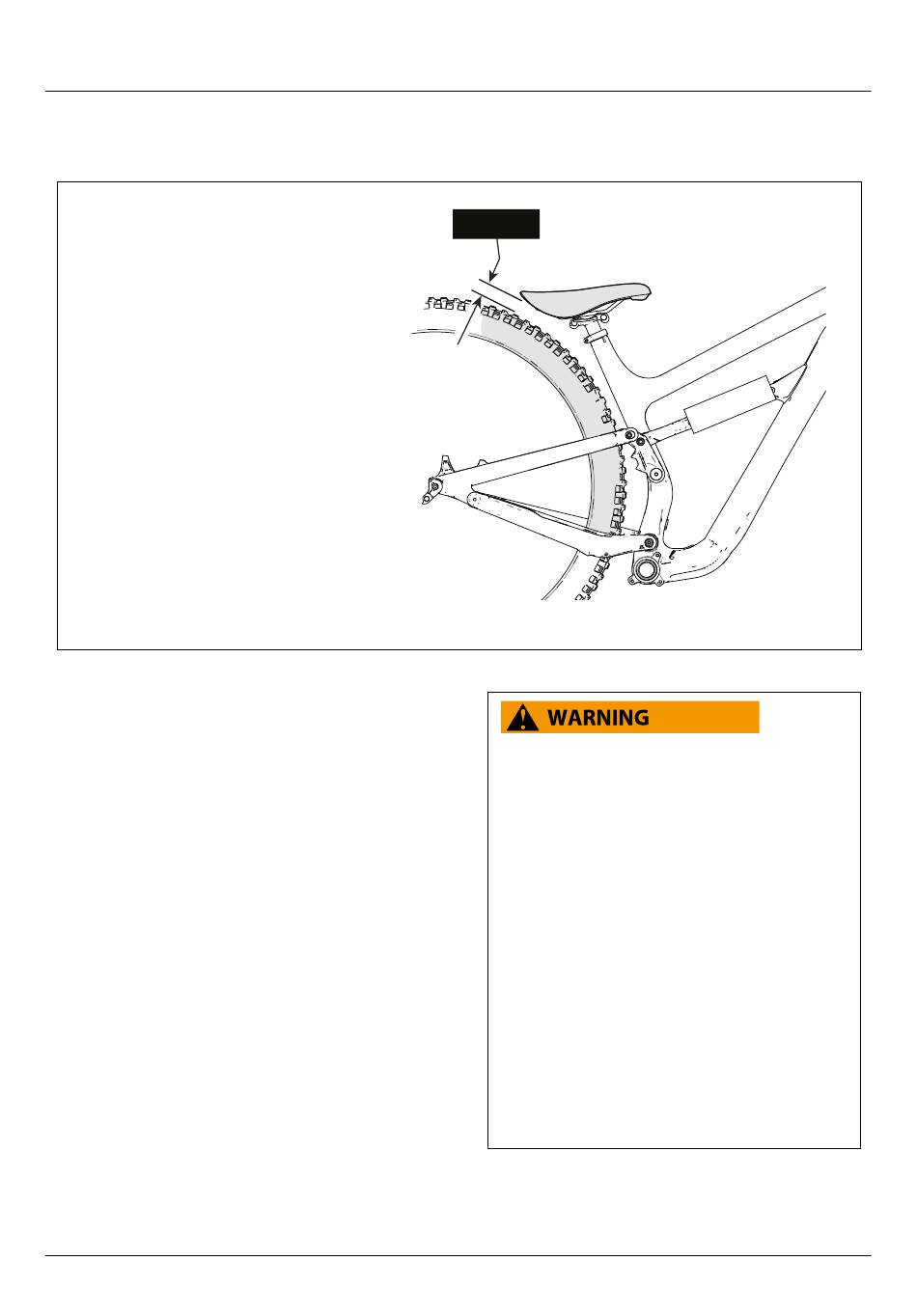

Rear Tire Clearance : Full Suspension
10 mm
Maintain 10 mm of clearance between
rear tire, any rear rack, saddle, seat
post, frame seat tube, or any mounted
accessory.
Check following saddle or seat post
adjustments.
If you have questions maintaining tire
clearances for parts of your bike consult
with an Authorized Dealer or a professional
cycling mechanic.
You can be severely injured, paralyzed or
killed in an accident if you ignore this
warning.
9
Safety Information
