WWW.CANNONDALE.COM
© 2019 Cycling Sports Group
Topstone Owner's Manual Supplement
134949 Rev. 1
Owner's Manual Supplement
CANNONDALE USA
Cycling Sports Group, Inc.
READ THIS SUPPLEMENT AND YOUR
1 Cannondale Way,
CANNONDALE BICYCLE OWNER'S MANUAL.
Wilton CT, 06897, USA
Both contain important safety information. Keep
both for future reference.
1-800-726-BIKE (2453)
www.cannondale.com
CANNONDALE EUROPE
Cycling Sports Group Europe, B.V.
Hanzepoort 27, 7570 GC, Oldenzaal,
Netherlands +41 61 4879380
servicedeskeurope@
cyclingsportsgroup.com
CANNONDALE UK
Cycling Sports Group
Vantage Way, The Fulcrum,
Poole, Dorset, BH12 4NU
+44 (0)1202732288
sales@cyclingsportsgroup.
co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAAD13 and is the answer not in the manual?

Questions and answers

Related Manuals for Cannondale CAAD13

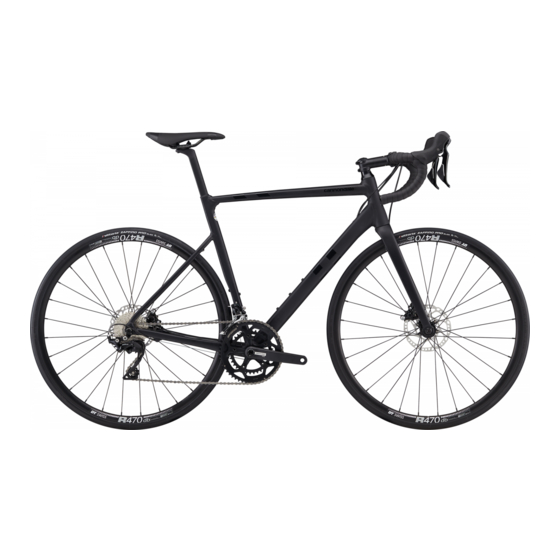

Summary of Contents for Cannondale CAAD13

  • Page 1 Cycling Sports Group READ THIS SUPPLEMENT AND YOUR 1 Cannondale Way, Hanzepoort 27, 7570 GC, Oldenzaal, Vantage Way, The Fulcrum, CANNONDALE BICYCLE OWNER’S MANUAL. Netherlands +41 61 4879380 Wilton CT, 06897, USA Poole, Dorset, BH12 4NU Both contain important safety information. Keep servicedeskeurope@ both for future reference.
  • Page 2 CANNONDALE EUROPE CANNONDALE UK Cycling Sports Group, Inc. Cycling Sports Group Europe, B.V. Cycling Sports Group 1 Cannondale Way, Hanzepoort 27, 7570 GC, Oldenzaal, Vantage Way, The Fulcrum, Netherlands +41 61 4879380 Wilton CT, 06897, USA Poole, Dorset, BH12 4NU...
  • Page 3 Please contact your Authorized Cannondale Dealer immediately if you need a manual or supplement, or have a question about your bike. You may also contact us using the appropriate country/region/location information.
  • Page 4 CAAD13 - Owner’s Manual Supplement SAFETY INFORMATION Important Composites Inspection & Crash Damage Message Of Carbon Frames/Forks Your bike (frame and components) is After A Crash Or Impact: made from composite materials also Inspect frame carefully for damage. See known as “carbon fiber.”...
  • Page 5 To minimize risk we strongly recommend that owners always have mechanical THE SEAT POST MUST ONLY BE CUT BY A work done by an Authorized Cannondale PROFESSIONAL BIKE MECHANIC. Incorrectly Dealer. cutting the seat post can result in damage leading to an accident.
  • Page 6 CAAD13 - Owner’s Manual Supplement Trainers Water Bottles If you ride a trainer that requires removal Side impacts to a water bottle or cage can of the front wheel and clamps the fork result in damage to threaded inserts due to dropouts: Be sure your fork quick release is the leverage on a very small area.
  • Page 7 Tightening Torques Before building up a frame set, consult with Correct tightening torque for the fasteners your Cannondale Dealer and the component (bolts, screws, nuts) on your bicycle is very manufacturers, and discuss your riding style, important to your safety. Correct tightening...
  • Page 8 CAAD13 - Owner’s Manual Supplement TECHNICAL INFORMATION Frame Specifications Item Specification Headset : Integrated, UPR 1-1/8 in, LWR 1-1/4 in Bottom Bracket: Type/Width BB30A / 73 mm Front Derailleur Braze-on Seat Post: Dia./Binder Internal Wedge - 65 mm Min. Seat Post Insert 44cm-140 mm, 48 cm - 179 mm, Max.
  • Page 9 English Geometry Seat Tube Length Top Tube Horizontal Head Tube Angle Seat Tube Angle Head Tube Length 75 mm Wheelbase Front Center Chain Stay Length Bottom Bracket Drop Bottom Bracket Height Fork Rake Trail Stack Reach Dimensions = centimeter/inches Size 40.0/15.7 43.8/17.2 47.7/18.8...
  • Page 10 CAAD13 - Owner’s Manual Supplement Serial Number Rear Derailleur Mount 2 N·m (DISC model shown) The serial number is located on the bottom bracket. It is a 7-character barcode (1). Use RD Hanger stop this serial number to register your bike.
  • Page 11 English Rear Rim Brake Bridge DT Guides Shimano Di2 EW-RS910 1 mm 1 N·m 20 mm SRAM eTAP Mechanical 1. Seat Stay 4. Bolt (2X) 2. Brake Bridge 3. Washer (2X) • The bridge parts are required for rim brake frames. The bridge provides necessary support to the frame and ensures that braking force is not absorbed by movement of the frame.
  • Page 12 CAAD13 - Owner’s Manual Supplement Bottom Bracket - BB30A, 73mm QC616/ KB6180/ (Cross-section) 42 mm K32190 34 mm 39 mm 73 mm NON-DRIVE SIDE Identification DRIVE SIDE 1. BB30 Shell 2. Circlip (2X) 3. Bearing (2X) 4. Cable guide w/ Support a.
  • Page 13 See following pages for explanation. The inner sleeve of some BB systems, may not be compatible. Consult with you Cannondale Dealer on comnpatible BB systems. All cables, wires, and hoses, must pass through the cable guide. Otherwise, damage may result from contact with the moving crank system parts.
  • Page 14 CAAD13 - Owner’s Manual Supplement Bottom Bracket Cable Guide Installation Assemble FD cable first to avoid crossing between FD and RD cable. 2. Afterwards assemble RD cable. 3. Optional: Add cable liner around the location of BB shell. 4. Pull brake hose away from BB spindle.
  • Page 15 English 5. Insert metal strap below brake hose. Position metal strap approximately in middle of BB window. Stop pulling brake hose. 6. Route FD and RD cable through window in BB guide • Avoid cable crossover 7. Put BB guide outside BB window It may be necessary to push brake hose to NDS so that it rests in its intended position.
  • Page 16 The seat post and seat tube contact points will mate normally when riding in the occasion this NOTICE step is missed. A seat post should not be bottomed out inside the frame at any time. Have your Cannondale Dealer size the seat post appropriately. 137370 Rev 1.
  • Page 17 Minimum Insert entire length of the inserted seat post Maximum Insert Maximum Depth For more information about carbon fiber seat posts, see also “Care and Maintenance of Carbon Fiber Seat Posts” in your Cannondale Bicycle Owner’s Manual. 137370 Rev 1.
  • Page 18 If the nut base has become rotated, it should be removed and re-affixed to the frame. The process is described in the Service Instruction for the parts kit. These instruction are not provided in this manual. We reccommend that you have a Cannondale Dealer perform the replacement.
  • Page 19 English (shown disassembled) Correct application of carbon paste and grease. The pressure sensitive adhesive double-sidedtape secures the aligned nut base in the frame. When applied the nut base and frame should be very clean for a good bond. Ready to accept seat post. This is CORRECT.
  • Page 20 CAAD13 - Owner’s Manual Supplement REPLACEMENT PARTS Frame / Fork 6 N·m 1 N·m 2 N·m Part Number Description DISC KP255/ Derailleur Hanger QR ST SS 027 ✔ K33009 Derailleur Hanger TA ST SS 070 ✔ K26060 CAAD13 Internal Seat Binder ✔...
  • Page 21 K2602015 C1 27 KNOT Alloy Seatpost 330mm 15 O/Set ✔ ✔ K32180 KNOT 27 Di2 Battery Mount ✔ ✔ K32160 S6 EVO/CAAD13 Down Tube Cable Guide ✔ ✔ K31000 Rim Brake Bridge ✔ CK1168U10OS Adjustable Fender Bridge BLK ✔ K32010 Clip-in Brake Cable Stop QTY 2 ✔...
  • Page 22 Consult your Cannondale Dealer for help. The wrong bolt length (engagement) can allow the brakes to disengage from the bicycle, which can lead to a crash, which can lead to serious injury, paralysis, or death of the rider.
  • Page 23 CANNONDALE EUROPE CANNONDALE UK Cycling Sports Group, Inc. Cycling Sports Group Europe, B.V. Cycling Sports Group 1 Cannondale Way, Hanzepoort 27, 7570 GC, Oldenzaal, Vantage Way, The Fulcrum, Netherlands +41 61 4879380 Wilton CT, 06897, USA Poole, Dorset, BH12 4NU...
  • Page 24 WWW.CANNONDALE.COM WWW.CANNONDALE.COM © 2019 Cycling Sports Group © 2019 Cycling Sports Group Topstone Owner’s Manual Supplement CAAD13 Owner’s Manual Supplement 134949 Rev. 1 137370 Rev. 1 CANNONDALE USA CANNONDALE USA CANNONDALE EUROPE CANNONDALE EUROPE CANNONDALE UK CANNONDALE UK Cycling Sports Group, Inc.
