Summary of Contents for Cannondale Adventure Neo Allroad S 2023

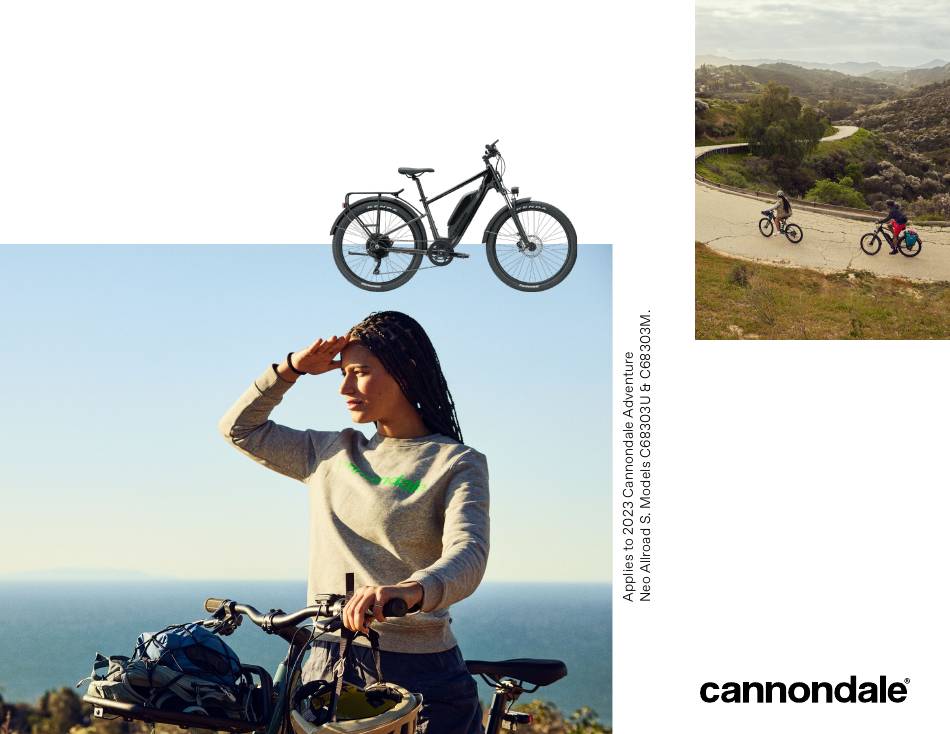

- Page 1 Adventure Neo Allroad S Quick Start Guide...
- Page 2 Welcome to the Cannondale family. WARNING First up, thank you for buying a new Cannondale electric bike – we’re excited to have you on board and to get you out riding as soon as possible. This is a Quick Start Guide, not an Owner’s manual.
-
Page 3: Table Of Contents
Battery Charging the battery Remove/Insert the battery Pedal Assistance Drive unit remote Turning bike on/off Default display information Adjusting pedal assist Assist Modes Controlling the Lights Using Walk Assistance USB Charging... -
Page 5: Battery
Battery In this guide are basic battery charging and removal/installation instructions. See the Battery User Manual that came with your bike or located in the Cannondale Help Center for complete battery specifications, operating instructions, and troubleshooting. -
Page 6: Charging The Battery
Charging the battery For your convenience, the battery on the Cannondale Adventure Neo Allroad bikes can be charged on or off the bike. For both methods of charging, start by connecting the battery charger’s power plug directly into a wall outlet. - Page 7 On-bike charging On the left side of the bike (side opposite from the gears), locate the rubber dust-plug and pull it open to obtain access to the charging port Insert the charging plug into the port Charger LED will briefly blink upon connection a.
- Page 8 Off-bike charging If battery is still installed on the bike, see the following section: “Removing the battery” for instructions on how to remove the battery Place battery on a dry surface away from direct heat Locate the round rubber dust-seal on the underside of the battery Pull open the rubber dust-seal and insert the charging plug into the port...
-
Page 9: Remove/Insert The Battery
Removing the battery The Cannondale Adventure Neo Allroad comes with an easy to remove semi-integrated battery, which offers the freedom to charge at home, in the office, or wherever you have power. To remove the battery Power off battery pack on the handlebar display or by pressing and holding the power button for three seconds. - Page 10 Installing the battery Insert key into lock core. Turn key clockwise until it stops. Remove the key and store it safely. Place battery into the cradle, bottom first. With your hand on the top part of the battery pack, push downward until you hear a click. Pull upward on the battery to ensure it is locked into the cradle.
- Page 11 Cannondale Adventure Neo Allroad. Below are basic use and operation instructions. See the complete Bafang 7 User Manual For DP C10 that came with your bike or on the Cannondale.com Help Center for all specifications, operations and troubleshooting details.
-
Page 12: Drive Unit Remote
Drive unit remote The e-bike drive unit remote is positioned on the handlebars next to the left brake lever where it can easily be operated by the rider’s left thumb. All drive unit and display functions are operated using the 5 buttons on the remote. System On/Off Up button Down button... -
Page 13: Turning Bike On/Off
If bike is not used for 5 minutes, the display will automatically turn off in order to conserve battery. Bafang 7 User Manual For DP C10 that came with your bike or on the Cannondale.com Help Center for instructions on changing “Auto Off” time. -
Page 14: Default Display Information
Default display information Display of battery capacity in real time Speed display Multi data displays data which corresponds to the current mode Assist level indication USB changing indicator Light indicator... -
Page 15: Adjusting Pedal Assist
Adjusting pedal assist The Adventure Neo Allroad Speed has 5 pedal assist levels. Assist is provided in a progressive manner from assist level 1 – level 5 as outlined in the table below. When the bike is first turned on, it will always be in Level 1. Use the Up (+) button to increase the pedal assist level Use the Down (-) button to decrease the pedal assist level When the display does not show any numbers in the Level... -
Page 16: Assist Modes
Assist modes Uses 25% assist, lower speed and battery consumption. Ideal for riders added 67mile 15mph who want to maximize battery life or just ride at a gentle pace on flat/ Motor range rolling paths with some assistance. Assist Uses 50% assist. Balances battery consumption with moderate level 50mile Cruise 20mph... -
Page 17: Controlling The Lights
Controlling the lights Your Cannondale Adventure Neo Allroad S comes with a headlight and taillight to help make you more visible when riding. The headlight, taillight and display backlight are all controlled together. Lights are on by default whenever the system is powered on. -
Page 18: Using Walk Assistance
Using walk assistance Walk Assistance uses the e-bike drive system to help propel the bike forward at a speed of 2 mph (3 kmh) making it easier to move the bike when it is not being ridden. This is especially helpful when walking the bike up an incline or hill. -
Page 19: Usb Charging
USB charging The display on your Adventure Neo Allroad S has a USB port that allows you to plug in and charge an external USB device, such as a cell phone, using your electric bike’s battery. The USB icon will appear in the display when an external device is connected. - Page 21 Register your e-bike Register your Cannondale e-bike to activate your Lifetime Warranty Go to www.cannondale.com/bike-registration/register...
- Page 22 Get the most out of your Cannondale electric bike by downloading the Cannondale App. The Cannondale App automatically logs ride activity, provides all your manuals at your fingertips, has every detail about your bike and can even remind you when it’s time for a tune up.
