Rs-232 Serial Port - HikRobot SC2000E Series Quick Start Manual

NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC, and the pull-up resistor of the supplied 17-pin cable
is used.

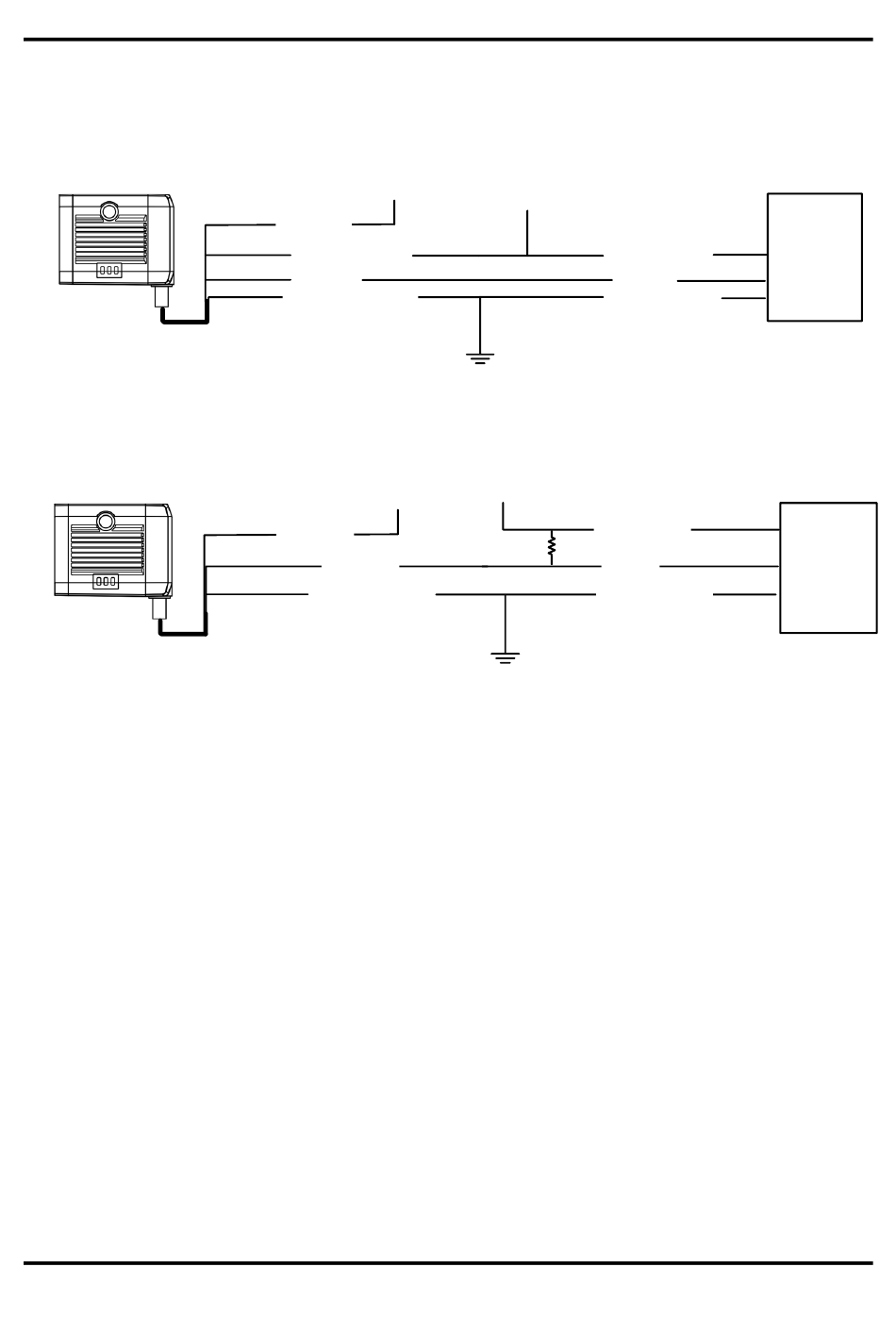

Figure 7-11 Output Signal Connecting to NPN Device (Pull-Up Resistor of 17-Pin Cable Used)
If the VCC of NPN device is 12 VDC or 24 VDC and the external pull-up resistor is used, it is
recommended to use 1 KΩ pull-up resistor.
Figure 7-12 Output Signal Connecting to NPN Device (External Pull-Up Resistor Used)

7.4 RS-232 Serial Port

The device supports outputting data via RS-232 serial port, and you can set serial port
communication via the client software. Refer to the user manual of the SCMVS client software for
details. The supplied 17-pin cable has open lines of RS-232 serial port, which are 4th and 5th pin of
the 17-pin interface.
SC2000E Series Vision Sensor Quick Start Guide
Device Power
Pull-Up and Pull-Down
Resistor
Output Signal
Device Power Ground
GND of PWR and VCC
Device Power
Output Signal
Device Power Ground
GND of PWR and VCC
PWR
VCC
●
●
VCC
PWR
●
●
●
19
NPN Device Power
Signal Line
NPN Power Ground
NPN Device Power
Signal Line
NPN Power Ground
NPN
Device
NPN
Device
