Zone state

The widget displays the zone state represented by either:
• icons selected by SATEL (indicator) – different states are displayed,
• text messages (text) – messages inform only about normal and violated states,
• icons selected by the installer (icon) – only normal and violated states are displayed.

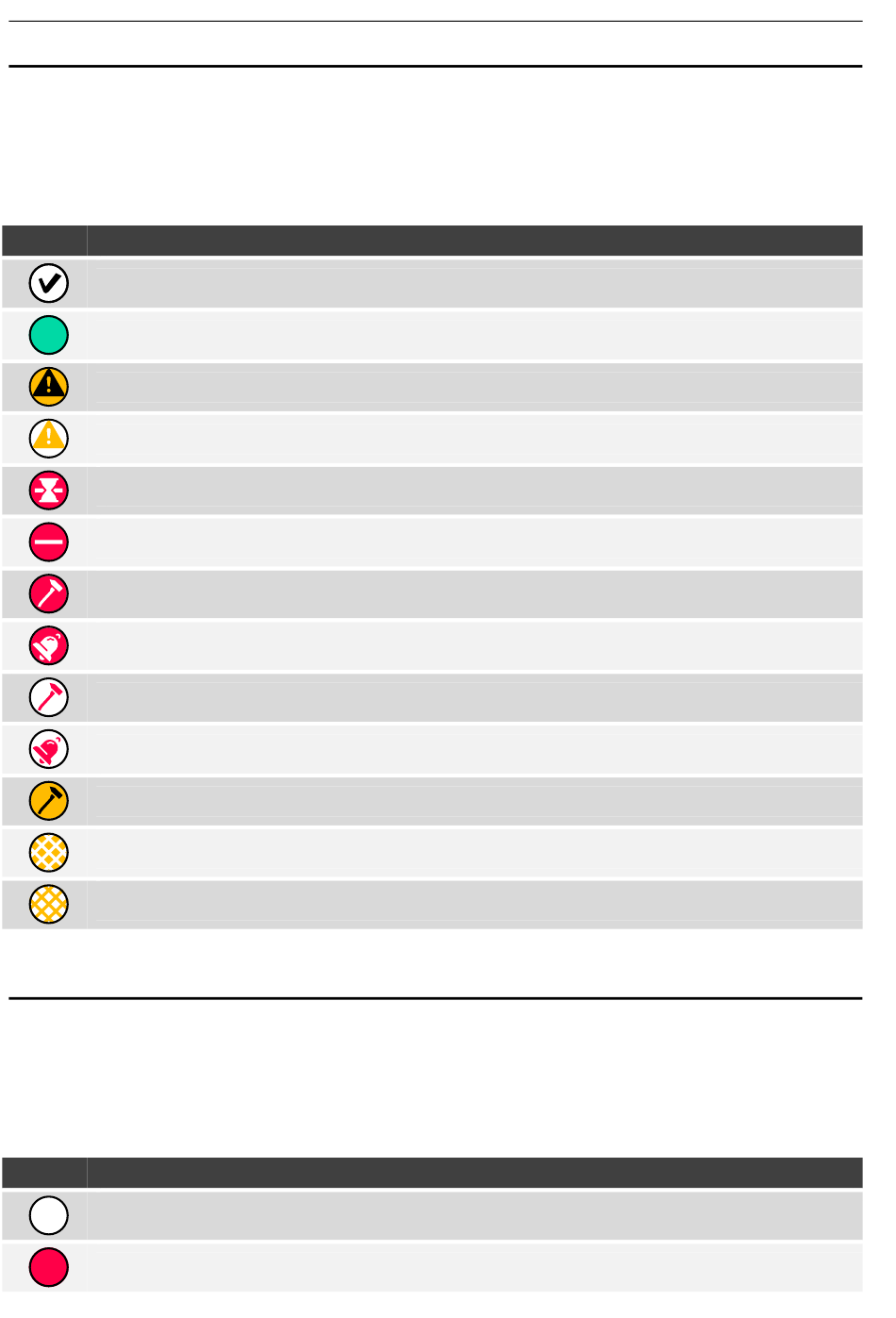

The icons selected by SATEL are described in the table below.
Icon
normal
violated
trouble – long violation
trouble – no violation
inhibited
isolated
tamper alarm
alarm
tamper alarm memory
alarm memory
tamper
masking
masking memory
8.4

Output state

The widget displays the output state represented by either:
• icons selected by SATEL (indicator),
• text messages (text),
• icons selected by the installer (icon).
The icons selected by SATEL are described in the table below.
Icon
deactivated
activated
INT-TSH2
Zone status
Output status
