INT-SCR
Multifunctional keypad
with proximity card reader
Firmware version 2.01
int-scr_en 11/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-SCR and is the answer not in the manual?

Questions and answers

Related Manuals for Satel INT-SCR

Summary of Contents for Satel INT-SCR

  • Page 1 INT-SCR Multifunctional keypad with proximity card reader Firmware version 2.01 int-scr_en 11/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

  • Page 3: Table Of Contents

    Partition keypad with proximity card reader (INT-SCR)..........7 Entry keypad (INT-ENT)....................11 Partition keypad (INT-S/SK) ..................12 5. Using the keypad.......................15 5.1 Partition keypad with proximity card reader (INT-SCR)..........15 LED indicators......................15 Sound signaling......................16 Available functions ...................... 16 Impact of the EN 50131 standard on keypad use ............

  • Page 4: Features

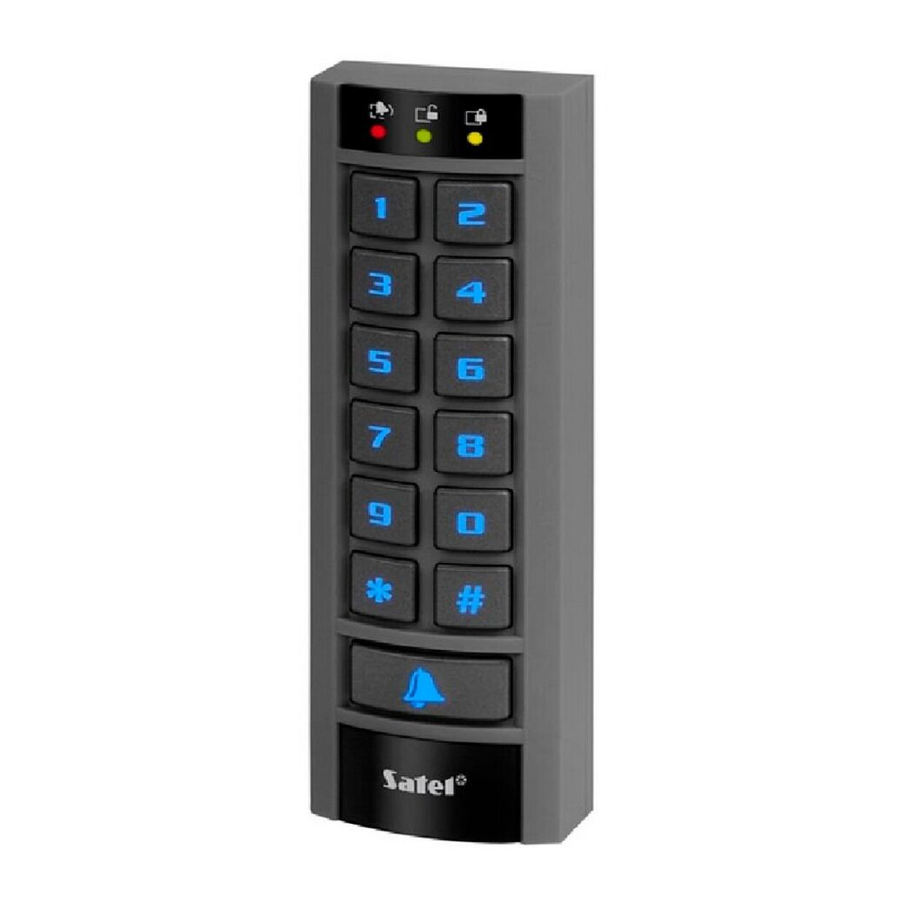

     partition keypad with proximity card reader – identified in the alarm system as INT-SCR. It allows the user to control one partition of the alarm system. The device makes it possible to manage access to a single door. The user can use the access code or the proximity card (i.e.

  • Page 5: Description

    You can select the keypad operating mode (see “Address setting and operating mode selection”). The operating mode defines which features are available. Partition keypad with proximity card reader (INT-SCR)  Ability to use cards, tags and other 125 kHz passive transponders to control the alarm system.

  • Page 6: Wires

    INT-SCR SATEL Wires +12V blue green black yellow pink grey brown purple BELL Fig. 2. Keypad wires. Color Description +12V +12 VDC power input blue common ground green data black clock yellow relay output normally open contact pink relay output normally closed contact...
  • Page 7 SATEL INT-SCR 4. Using wall plugs (anchors) and screws, secure the enclosure base to the wall. Select wall plugs specifically intended for the mounting surface (different for concrete or brick wall, different for plaster wall, etc.). 5. Close the enclosure and secure it with the screw.

  • Page 8: Address Setting And Operating Mode Selection

    Operating mode selection 1. Press in turn 2. The LED will start flashing. 3. Select the operating mode by pressing one of the keys: - partition keypad with proximity card reader (INT-SCR), - entry keypad (INT-ENT), - partition keypad (INT-S/SK). 4. Press...

  • Page 9: Configuring The Keypad

    Presented in square brackets are the names of parameters and options displayed on the keypad. Partition keypad with proximity card reader (INT-SCR) Name – individual name of the device (up to 16 characters). Partition – partition operated by the keypad.
  • Page 10 You can enter from the 0 to 255 seconds. If value 0 is programmed, the door status will not be monitored. Fig. 5. DLOADX program: settings of partition keypad with proximity card reader (INT-SCR). Dependent on door (1) / Dependent on door (2) – you can select the door that must be closed so that the user can get access (turn the relay on).
  • Page 11 SATEL INT-SCR Code+* do not disarm [Code * not dis.] – if this option is enabled, entering the code and pressing / presenting the card will not disarm the partition (to disarm the partition, the user must enter the code and press / hold the card).
  • Page 12 INT-SCR SATEL Sign. entry delay [Entry time] – if this option is enabled, the keypad will audibly signal the entry delay countdown. Sign. exit delay [Exit time] – if this option is enabled, the keypad will audibly signal the exit delay countdown.

  • Page 13: Entry Keypad (Int-Ent)

    SATEL INT-SCR Entry keypad (INT-ENT) Fig. 6. DLOADX program: settings of entry keypad (INT-ENT). Name – individual name of the device (up to 16 characters). Partition – partition operated by the keypad. Delay activation time [Delay act. time] – the time counted from using the code / card, during which the “3.

  • Page 14: Partition Keypad (Int-S/Sk)

    INT-SCR SATEL Backlight – the way how the keys backlight works: No – always off. Auto – on for about 40 seconds after pressing any key / reading a card. Permanent – always on. Partition keypad (INT-S/SK) Fig. 7. DLOADX program: settings of partition keypad (INT-S/SK).
  • Page 15 SATEL INT-SCR Fixed ON time [ON time] – the relay will turn on after access is granted. It will remain on for the “Relay ON time” duration. Fixed ON time – OFF if door open [ON, openoff] – the relay will turn on after access is granted.
  • Page 16 INT-SCR SATEL silent [Silent panic] – if this option is enabled, the panic alarm triggered from the keypad will be a silent one, i.e. the keypad will not indicate it, there will be no audible signal, but the alarm will be reported to the monitoring station. The silent panic alarm is useful when the control panel is sending events to the monitoring station, but unauthorized persons should not be aware of the alarm being triggered.

  • Page 17: Using The Keypad

    The keypad distinguishes between presenting and holding the card (in the latter case the card must be held in front of the reader for about 3 seconds). How the keypad behaves depends on the selected operating mode. 5.1 Partition keypad with proximity card reader (INT-SCR) LED indicators Color Description ON or flashing –...

  • Page 18: Sound Signaling

    INT-SCR SATEL Sound signaling Beeps generated when operating The installer can disable the sound signaling or replace it with flashing of the keypad backlight (see “Configuring the keypad”). 1 short beep – any number key is pressed or the code / card is used.
  • Page 19 SATEL INT-SCR Availability of the functions depends on:  type and rights of the user,  keypad settings,  partition state. If you use the code or card and the LEDs start flashing alternately, this will mean that the code and the card must be used to run the functions.

  • Page 20: Impact Of The En 50131 Standard On Keypad Use

    INT-SCR SATEL Triggering the alarm from keypad The installer can permit triggering alarms from the keypad. To trigger an alarm, do the following: fire alarm – press and hold down for about 3 seconds, medical (auxiliary) alarm – press and hold down for about 3 seconds, panic alarm –...

  • Page 21: Sound Signaling

    For information on how to use the keypad, refer to section “Partition keypad with proximity card reader (INT-SCR)”. Just skip the fragments relating to the use of proximity cards. 6. Specifications Supply voltage ....................
  • Page 22 INT-SCR SATEL Cable length......................... 4 m Weight..........................297 g...
