int-tsi_u_en 05/16

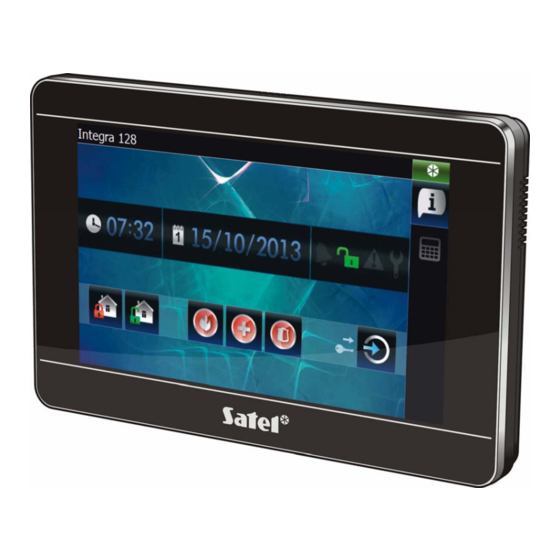

Keypad
INT-TSI
Brief User Manual
Firmware version 1.05
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-TS and is the answer not in the manual?

Questions and answers

Related Manuals for Satel INT-TS

Summary of Contents for Satel INT-TS

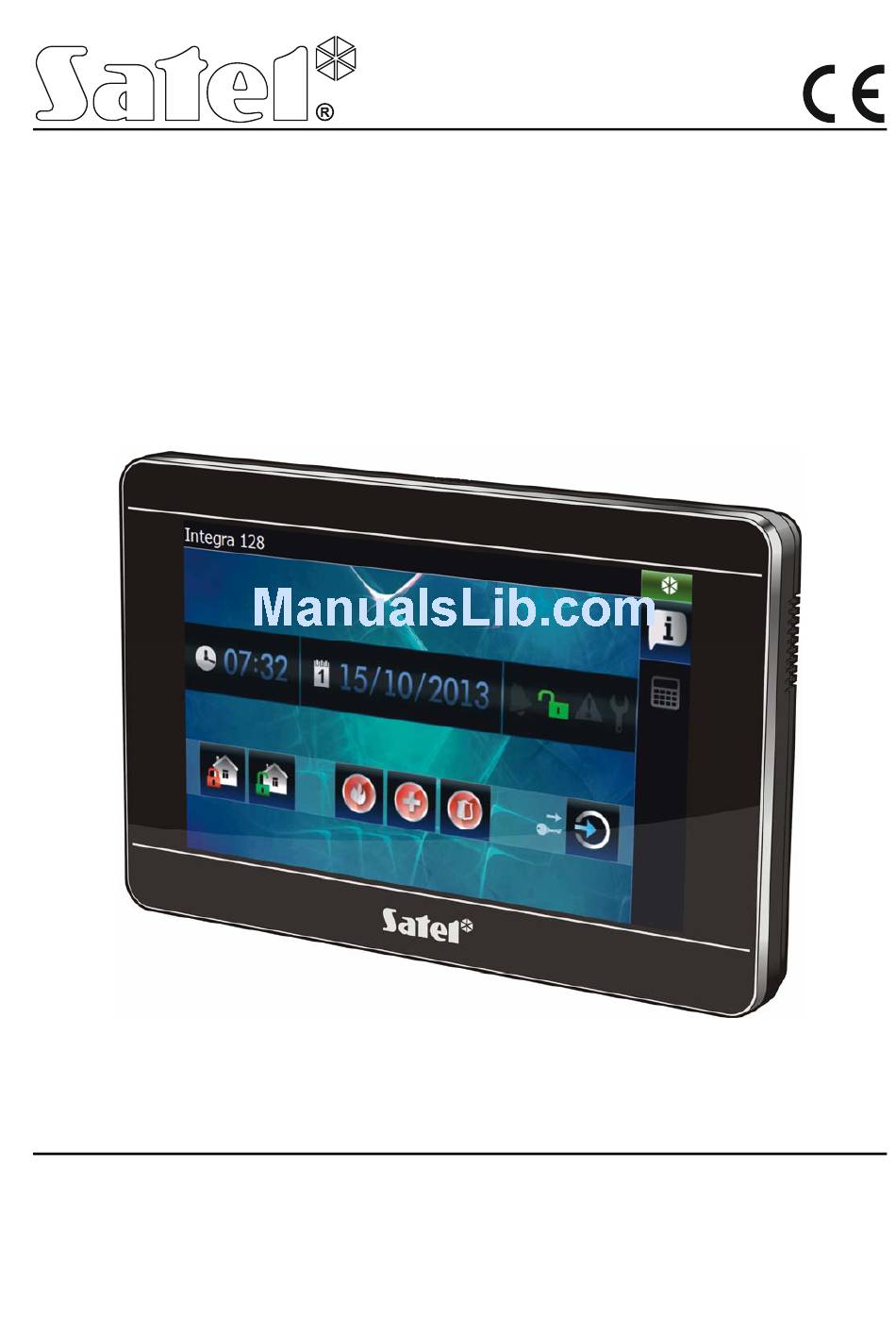

  • Page 1 05/16 Keypad INT-TSI Brief User Manual Firmware version 1.05 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The installer manual contains information on how to minimize the radio interference. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

  • Page 3: Table Of Contents

    CONTENST Introduction........................2 Authorization / login ......................2 On-screen elements ......................3 Information bar ......................4 Status icon......................... 4 3.2.1 “Settings” window ......................4 Tab bar ........................9 Tab ..........................9 3.4.1 Analog clock ........................9 3.4.2 Date / Time ........................9 3.4.3 Thermometer ........................

  • Page 4: Introduction

    SATEL Ltd. is a manufacturer of a wide variety of dedicated devices for use in alarm systems. Additional information can be found on our website www.satel.eu or at points of sale offering our products.

  • Page 5: On-Screen Elements

    SATEL INT-TSI By default, the following codes are preprogrammed in the control panel: service code: 12345 object 1 master (administrator) code: 1111 Additionally, the operations which the user can perform using the keypad depend on the user authority level. When acting under duress, use the D...

  • Page 6: Information Bar

    INT-TSI SATEL 3.1 Information bar The information bar will not be displayed if the user interface is so configured by the installer. The following data can be displayed on the information bar:  type of alarm control panel;  text entered by the installer;...
  • Page 7 SATEL INT-TSI Volume The keypad volume levels may vary, depending on the type of generated sounds. Tap an item in the list to highlight it, and then use the slider to set the volume. Keys – the volume level for sounds generated on touching the screen and when using the terminal.
  • Page 8 INT-TSI SATEL be used, turn on the appropriate option, and then specify the hours during which the night mode is to be used. If the backlight is to be turned off, enable the appropriate option, and then define the period of keypad inactivity after which the backlight will be turned off.
  • Page 9 SATEL INT-TSI Static IP – if this option is enabled, you must program the keypad network settings (tap one of the parameters below and, using the onscreen keyboard that will be displayed, enter the data). IP address – keypad IP address.
  • Page 10 INT-TSI SATEL TSI B program to the memory card via the local network, i.e. without having to remove UILDER the card from the keypad. The function will be disabled automatically after the keypad restart or after one minute without connection with the TSI B program has elapsed.

  • Page 11: Tab Bar

    SATEL INT-TSI Never use the same API key on several keypads. Keypad restart The window allows you to restart the keypad. 3.3 Tab bar The tab bar presents, by means of icons, the tabs available in the given template. Tapping an icon results in displaying the tab.

  • Page 12: Thermometer Lite

    INT-TSI SATEL 3.4.4 Thermometer Lite A widget having exactly the same functionality as the “Thermometer” widget, but smaller. 3.4.5 System status The status of alarm system is presented by means of icons. alarm or alarm memory none of the partitions operated by the keypad is armed...

  • Page 13: Button

    SATEL INT-TSI 3.4.9 Button The following types of buttons can be placed in the tab by the installer:  single control button – tapping the button will cause the keypad or alarm control panel to perform operation defined by the installer (e.g. arming the selected partitions, turning on/off the device controlled by the control panel, etc.).

  • Page 14: Weather

    OpenWeatherMap service (openweathermap.org). The installer sets the widget size, which determines for how many days the weather forecast will be presented. SATEL is not responsible for the information presented by the “Weather” widget. The widget presents data provided by the OpenWeatherMap service.

  • Page 15: Zone List

    SATEL INT-TSI right corner of the list will display the next page of the list, and tapping the top right corner will take you to the previous page. 3.4.14 Zone list It presents the list of zones and their status by means of icons.

  • Page 16: Output List

    INT-TSI SATEL list. When the icon is displayed, the list is sorted by name. When the icon is displayed, the list is sorted by number. Bypassing / unbypassing zones 1. Find in the list the zone which is to be bypassed / unbypassed.

  • Page 17: Partition List

    SATEL INT-TSI The S and S type of outputs are always programmed as HUTTER UP HUTTER DOWN consecutive and in pairs. Only the output of type is displayed in the list, SHUTTER UP though the status information applies to both outputs (when one of the outputs is activated, the other one is deactivated).
  • Page 18 INT-TSI SATEL Icon Partition status disarmed – there are no violated zones exit delay countdown is running – remaining time longer than 10 seconds exit delay countdown is running – less than 10 seconds remained armed – mode: “full” armed – mode: “full + bypasses”...

  • Page 19: Event List

    SATEL INT-TSI Filtering by status Proceed in the same way as for filtering the zones by status (p. 14). 3.4.17 Event list It presents events downloaded from the control panel and saved to the memory card in the keypad. Double tapping an event will display a window with detailed information on the event.

  • Page 20: Zone

    INT-TSI SATEL 3.4.23 Zone Indicates the status of a single zone. The same icons are used as in the “Zone list” widget (p. 13). The widget can be described. 3.4.24 Output Indicates the status of a single output (deactivated / activated). The widget can be described.

  • Page 21: Template Available After Login

    SATEL INT-TSI tap to arm in “full” mode all partitions to which you have access from the keypad (entering a code will be required). tap to disarm / clear alarm in all partitions to which you have access from the keypad (entering a code will be required).

  • Page 22: Tab Containing I.a. The Partition List Presentation Widget

    INT-TSI SATEL tap to disarm / clear alarm in all partitions to which you have access from the keypad. tap and hold to trigger the fire alarm. tap and hold to trigger the medical (auxiliary) alarm. tap and hold to trigger the panic alarm.

  • Page 23: Sound Signaling

    SATEL INT-TSI 4.2.2 Tab containing i.a. the event list presentation widget tap to display the alarms logged to event log. tap to display the events of arming / disarming and alarm clearing type. tap to display the troubles logged to event log.

  • Page 24: Events Signaled By Sounds

    INT-TSI SATEL – enabling chime signal in the keypad, using the key; – ending the function and exiting the user m enu after confirmation of the data entered. 1 long beep – signaling of: – violated / bypassed zones when arming;...
