INT-S
Partition keypad
Firmware version 2.02
int-s_en 07/20
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Satel INT-S Series

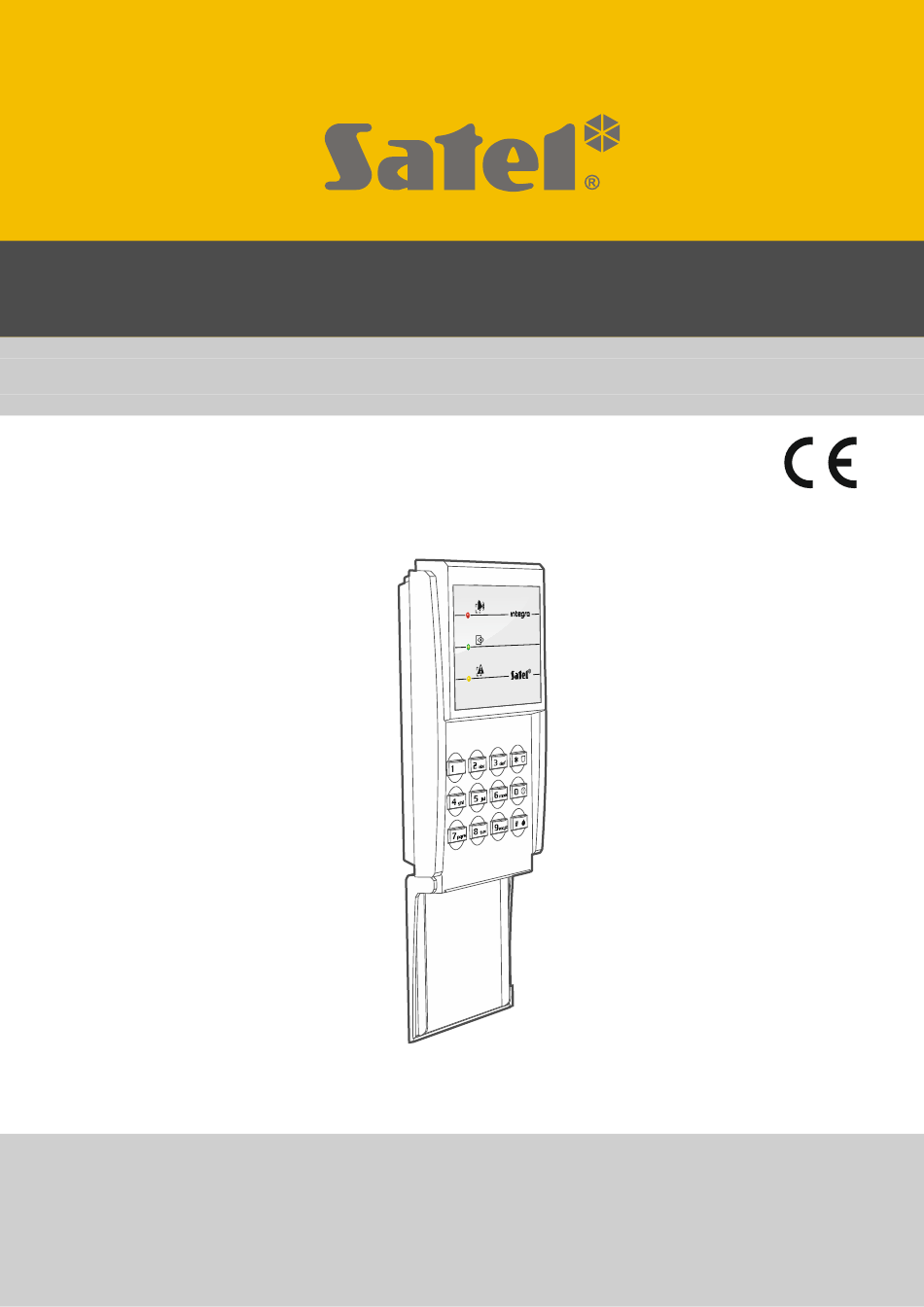

  • Page 1 INT-S Partition keypad Firmware version 2.02 int-s_en 07/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3: Table Of Contents

    CONTENTS Features ........................... 2 Installation ........................3 Address setting ......................4 Description of terminals ....................4 Configuring ........................4 Description of parameters and options ............... 4 Using ..........................8 LED indicators ......................8 Sound signaling ......................8 4.2.1 Beeps generated when operating ................ 8 4.2.2 Signaling events ....................
  • Page 4: Features

    INT-S SATEL The INT-S partition keypad: • allows the user to control one partition of the alarm system, • can control the access to a single door. The keypad is compatible with the INTEGRA / INTEGRA Plus alarm control panels. The keypad is offered in two versions differing in key backlight color: INT-S-GR –...
  • Page 5: Installation

    SATEL INT-S 2. Installation Disconnect power before making any electrical connections. The keypad is designed for indoor installation. The place of installation should be readily accessible to the system users. 1. Open the keypad enclosure. 2. Set the partition keypad address (see “Address setting” p. 4).
  • Page 6: Address Setting

    INT-S SATEL 2.1 Address setting An individual address (different from that in the other devices connected to the control panel bus) must be set in the keypad. To set the address, use the DIP switches on the electronics board. The switches have numbers assigned to them.
  • Page 7 SATEL INT-S Fig. 4. DLOADX program: parameters and options of partition keypad. Lock [Lock feature] – if this option is enabled, the keypad can control the access to a single door (the following parameters are available: “Lock features”, “Relay ON time”, “Max. door open time”...
  • Page 8 INT-S SATEL Relay [Relay type] – status of the deactivated relay: NO [Normal.open NO] – the relay contacts are open (they close on activating the relay). NC [Normal.closed NC] – the relay contacts are closed (they open on activating the relay).
  • Page 9 SATEL INT-S Control “MONO” output [MONO outs ctr.] – if this option is enabled, the ““Mono” output operating” type of users can use the keypad to control outputs. Partition blocking [Part.blocking] – if the option is enabled, using the code by a user of the “Blocking partition”...
  • Page 10: Using

    INT-S SATEL Part. fire alarm [on partit. fire] – the door will be unlocked in the event of fire alarm in the partition to which the keypad is assigned. Object fire alarm [on object fire] – the door will be unlocked in the event of fire alarm in the object to which the keypad is assigned.
  • Page 11: Code

    SATEL INT-S Long beep every 3 seconds, followed by a series of short beeps for 10 seconds and 1 long beep – countdown of exit delay (if the time is shorter than 10 seconds, only the final sequence of short beeps will be generated).
  • Page 12: Code]

    INT-S SATEL 4.4.2 [Code] Enter the code and press • start the procedure of partition arming / arm the partition, • disarm the partition, • clear alarm, • gain access (turn on the expander relay output), • toggle the state of “25. BI switch” type outputs, •...
  • Page 13: Impact Of The En 50131 Standard On Keypad Use

    SATEL INT-S 4.5 Impact of the EN 50131 standard on keypad use If the control panel has been configured in accordance with the requirements of Standard EN 50131 for Grade 2 (INTEGRA) or Grade 3 (INTEGRA Plus): • the keypad does not signal alarms, •...
