Operating the hand switch with 6 function buttons
Control menu > Service menu

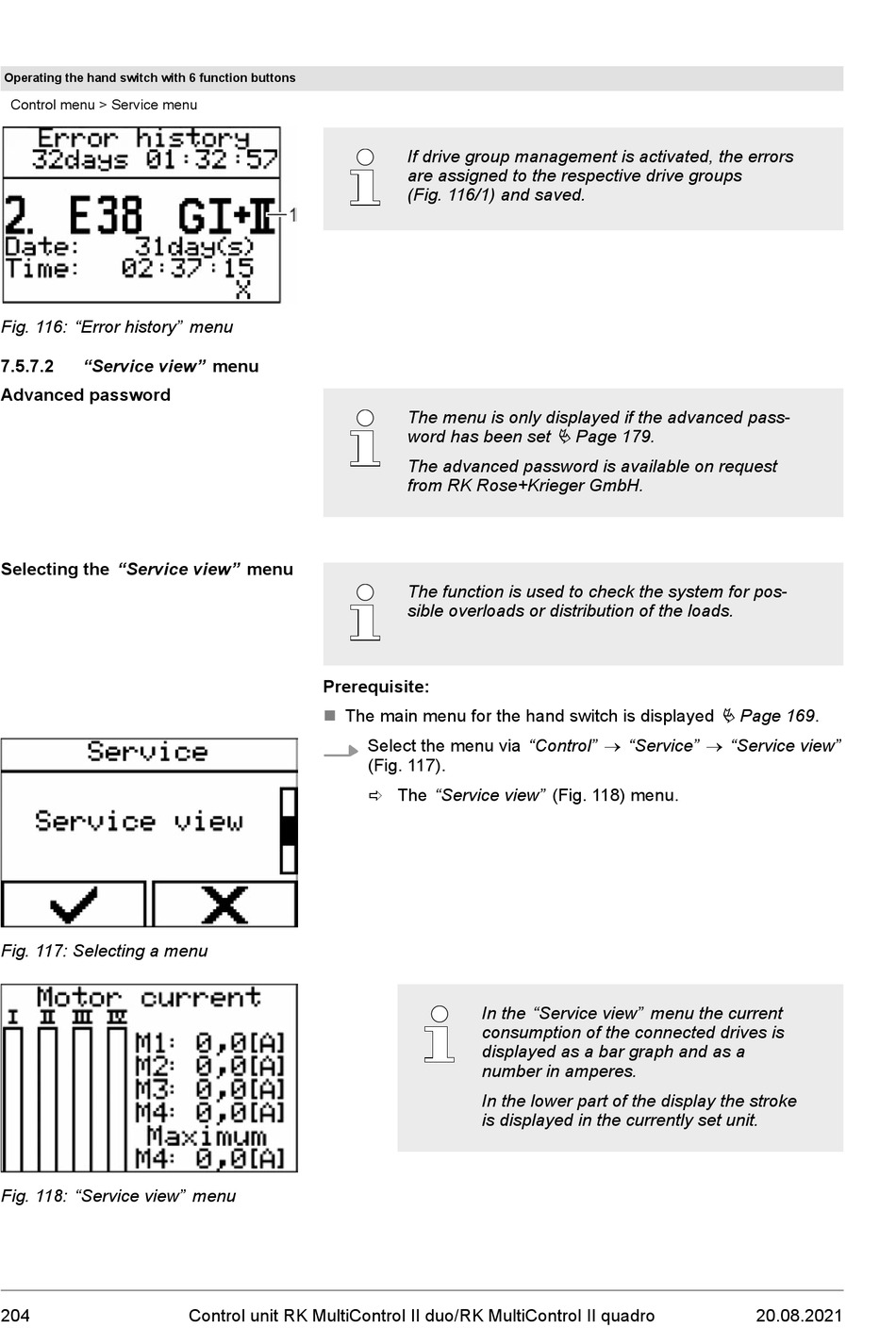

Fig. 116: "Error history" menu
7.5.7.2

"Service view" menu

Advanced password
Selecting the "Service view" menu
Fig. 117: Selecting a menu
Fig. 118: "Service view" menu
204
Prerequisite:
n The main menu for the hand switch is displayed
Control unit RK MultiControl II duo/RK MultiControl II quadro
If drive group management is activated, the errors
are assigned to the respective drive groups
(Fig. 116/1) and saved.
The menu is only displayed if the advanced pass-
word has been set
The advanced password is available on request
from RK Rose+Krieger GmbH.
The function is used to check the system for pos-
sible overloads or distribution of the loads.
Select the menu via "Control" ® "Service" ® "Service view"
(Fig. 117).
ð The "Service view" (Fig. 118) menu.
In the "Service view" menu the current
consumption of the connected drives is
displayed as a bar graph and as a
number in amperes.
In the lower part of the display the stroke
is displayed in the currently set unit.
Ä Page 179.
Ä Page 169.
20.08.2021
