Assembly
Connecting the accessories > Connecting the IO interface module
Connecting the IO interface module

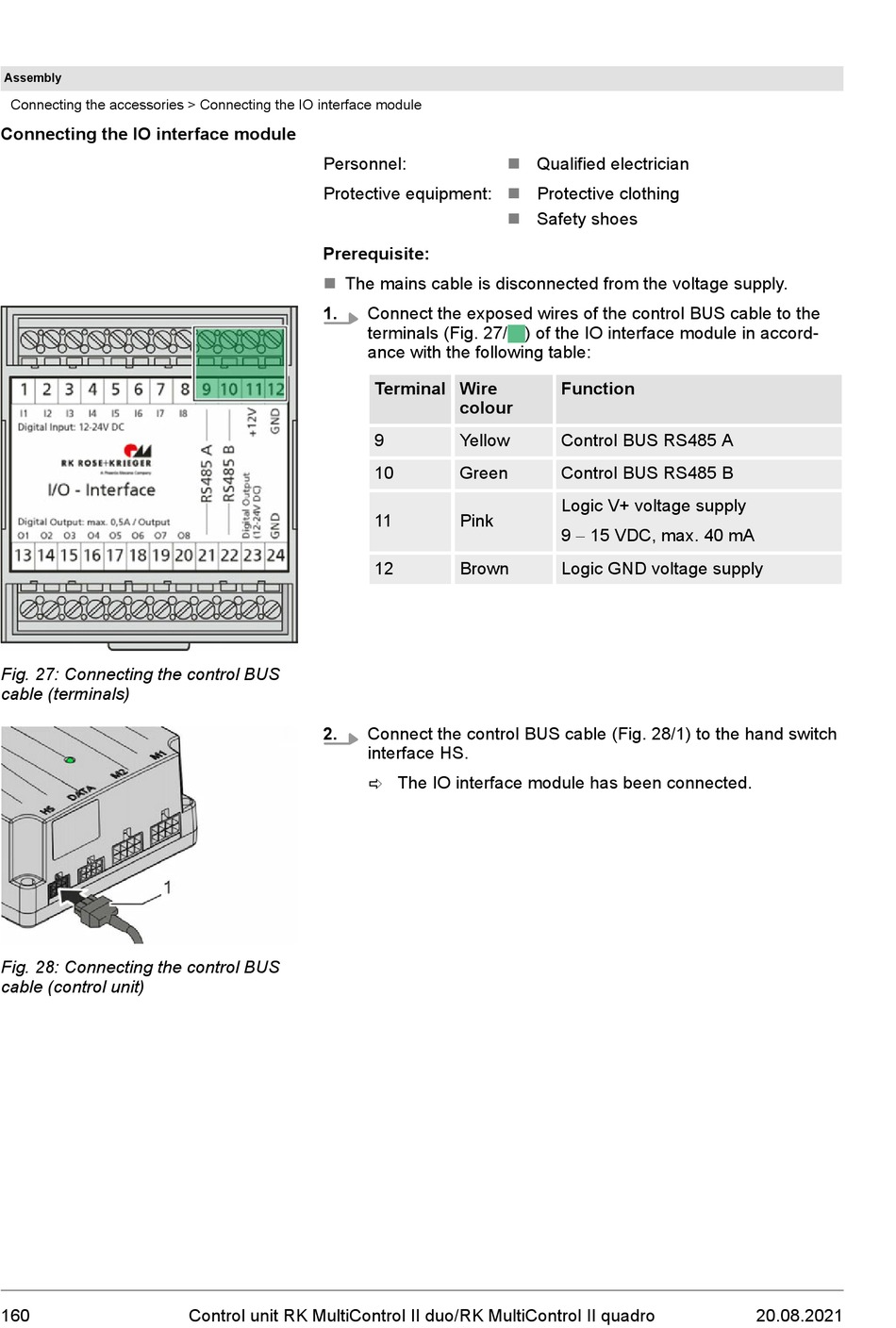

Fig. 27: Connecting the control BUS
cable (terminals)
Fig. 28: Connecting the control BUS
cable (control unit)
160
Personnel:
Protective equipment:
Prerequisite:
n The mains cable is disconnected from the voltage supply.
1.
2.
Control unit RK MultiControl II duo/RK MultiControl II quadro
n Qualified electrician
n Protective clothing
n Safety shoes
Connect the exposed wires of the control BUS cable to the
terminals (Fig. 27/ ) of the IO interface module in accord-
ance with the following table:
Terminal Wire
colour
9 Yellow
10 Green
11 Pink
12 Brown
Connect the control BUS cable (Fig. 28/1) to the hand switch
interface HS.
ð The IO interface module has been connected.
Function
Control BUS RS485 A
Control BUS RS485 B
Logic V+ voltage supply
9 - 15 VDC, max. 40 mA
Logic GND voltage supply
