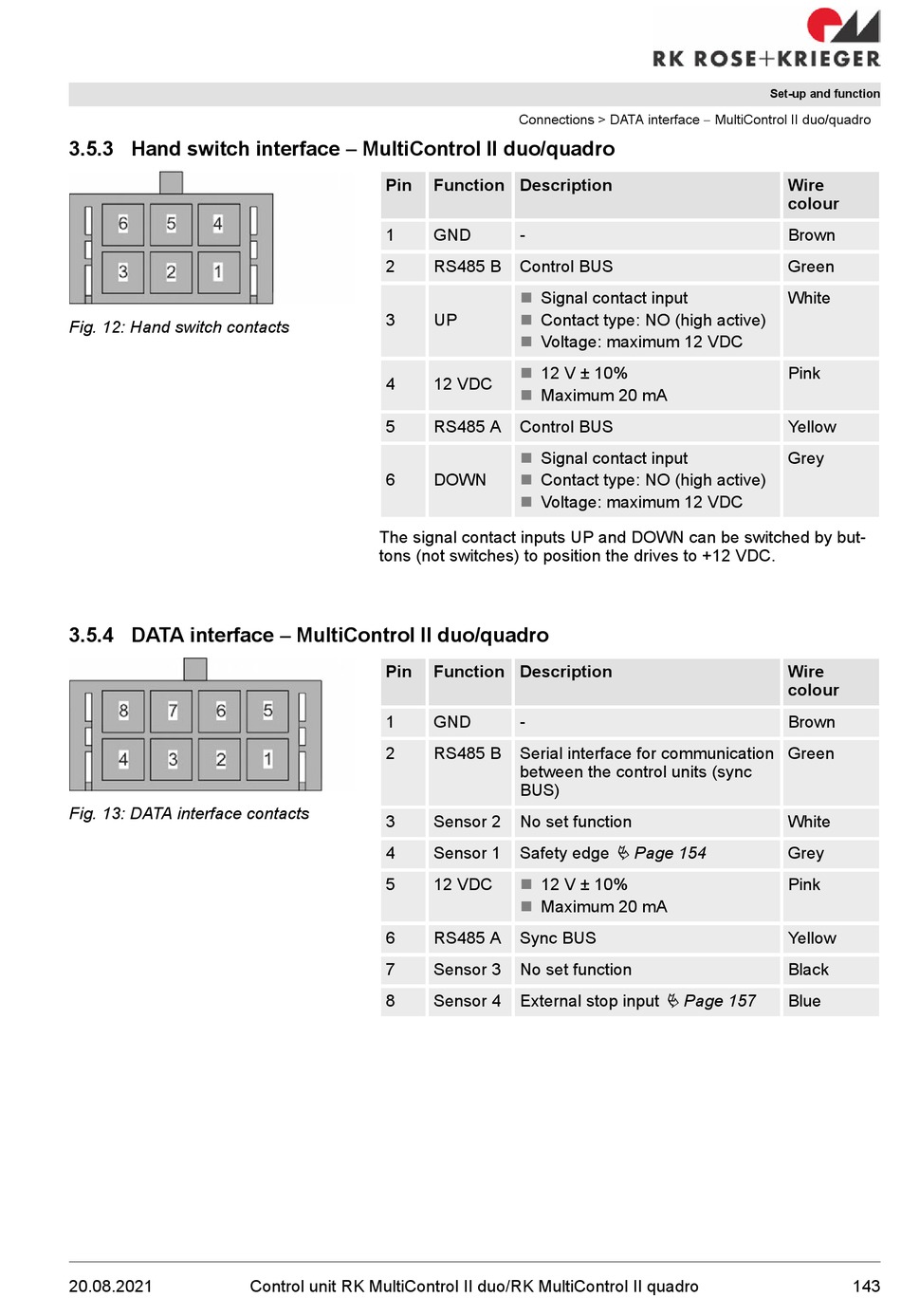

3.5.3 Hand switch interface - MultiControl II duo/quadro

Fig. 12: Hand switch contacts

3.5.4 DATA interface - MultiControl II duo/quadro

Fig. 13: DATA interface contacts
20.08.2021
Pin
1
2
3
4
5
6
The signal contact inputs UP and DOWN can be switched by but-
tons (not switches) to position the drives to +12 VDC.
Pin
1
2
3
4
5
6
7
8
Control unit RK MultiControl II duo/RK MultiControl II quadro
Connections > DATA interface - MultiControl II duo/quadro
Function Description
GND -
RS485 B Control BUS
n Signal contact input
UP n Contact type: NO (high active)
n Voltage: maximum 12 VDC
n 12 V ± 10%
12 VDC
Maximum 20 mA
n
RS485 A Control BUS
n Signal contact input
DOWN n Contact type: NO (high active)
n Voltage: maximum 12 VDC
Function Description
GND -
RS485 B Serial interface for communication
between the control units (sync
BUS)
Sensor 2 No set function
Sensor 1 Safety edge
12 VDC n 12 V ± 10%
n Maximum 20 mA
RS485 A Sync BUS
Sensor 3 No set function
Sensor 4 External stop input
Set-up and function
Ä Page 154
Ä Page 157
Wire
colour
Brown
Green
White
Pink
Yellow
Grey
Wire
colour
Brown
Green
White
Grey
Pink
Yellow
Black
Blue
