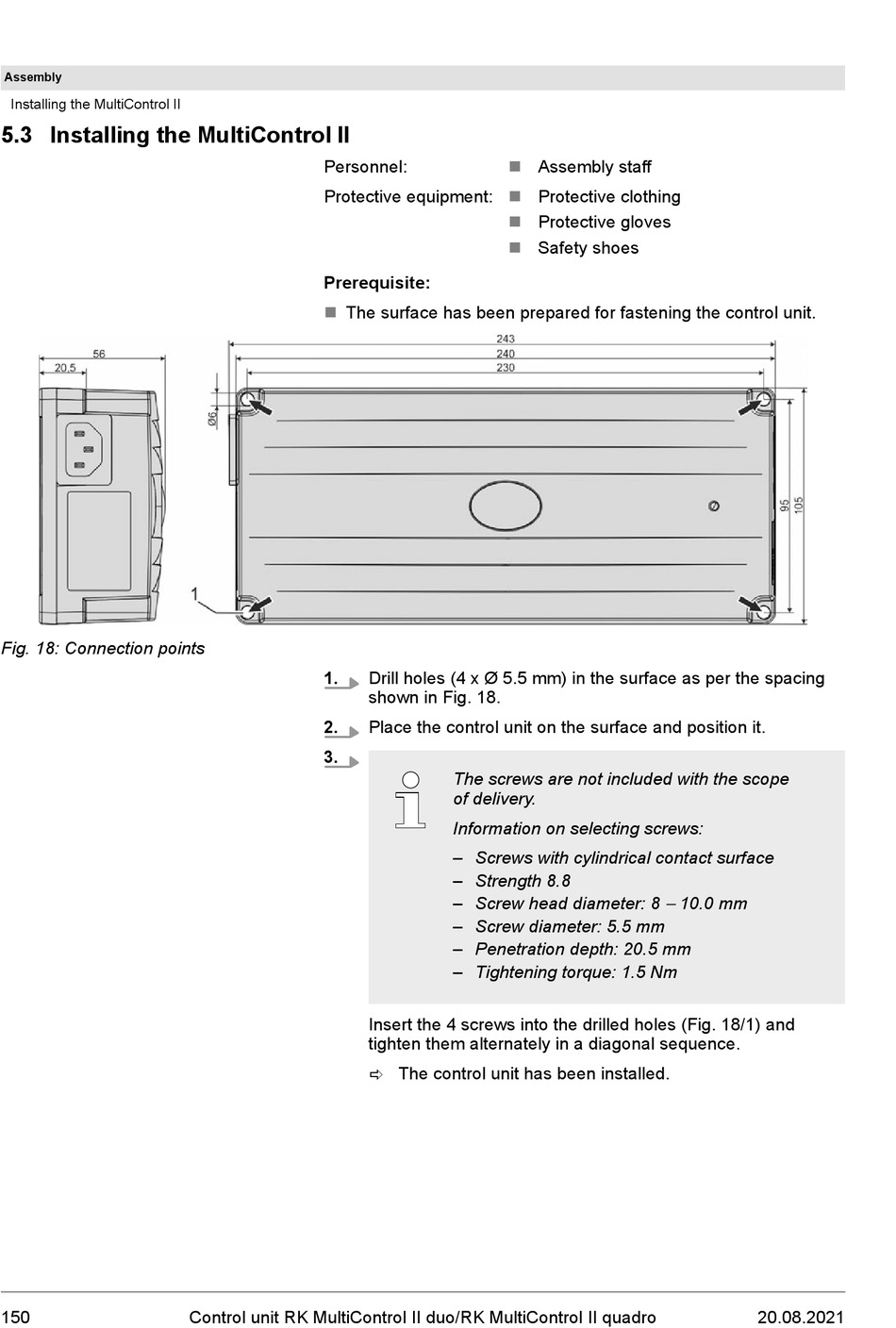

Installing the MultiControl II

5.3 Installing the MultiControl II
Fig. 18: Connection points
150
Personnel:
Protective equipment:
Prerequisite:
n The surface has been prepared for fastening the control unit.
1.
2.
3.
Control unit RK MultiControl II duo/RK MultiControl II quadro
n Assembly staff
Protective clothing
n
Protective gloves
n
n Safety shoes
Drill holes (4 x Ø 5.5 mm) in the surface as per the spacing
shown in Fig. 18.
Place the control unit on the surface and position it.
The screws are not included with the scope
of delivery.
Information on selecting screws:
– Screws with cylindrical contact surface
– Strength 8.8
– Screw head diameter: 8
– Screw diameter: 5.5 mm
– Penetration depth: 20.5 mm
– Tightening torque: 1.5 Nm
Insert the 4 screws into the drilled holes (Fig. 18/1) and
tighten them alternately in a diagonal sequence.
ð The control unit has been installed.
- 10.0 mm
