Set-up and function
Accessories > Hand switch

3.2 Function description

3.3 Accessories

3.3.1 Hand switch

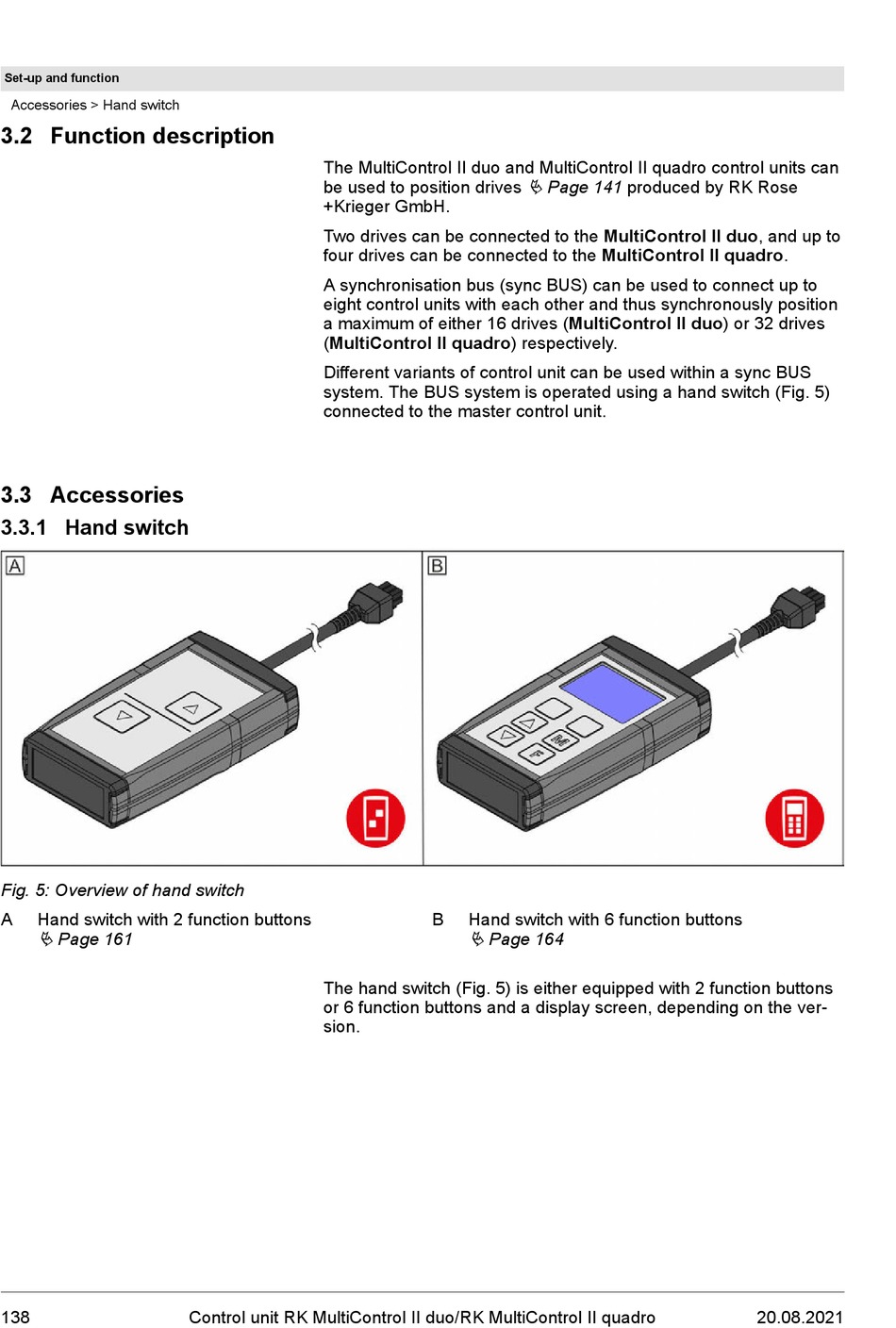

Fig. 5: Overview of hand switch
A Hand switch with 2 function buttons
Ä Page 161
138
The MultiControl II duo and MultiControl II quadro control units can
be used to position drives
+Krieger GmbH.
Two drives can be connected to the MultiControl II duo, and up to
four drives can be connected to the MultiControl II quadro.
A synchronisation bus (sync BUS) can be used to connect up to
eight control units with each other and thus synchronously position
a maximum of either 16 drives (MultiControl II duo) or 32 drives
(MultiControl II quadro) respectively.
Different variants of control unit can be used within a sync BUS
system. The BUS system is operated using a hand switch (Fig. 5)
connected to the master control unit.
The hand switch (Fig. 5) is either equipped with 2 function buttons
or 6 function buttons and a display screen, depending on the ver-
sion.
Control unit RK MultiControl II duo/RK MultiControl II quadro
Ä Page 141 produced by RK Rose
B Hand switch with 6 function buttons
Ä Page 164
