Acknowledging an Alarm,
How the FACP
Indicates that an
Alarm has Occurred
continued
Direct to Alarm List:
-
condition since the last system reset. Each entry in the list displays the custom label followed
by the point type and its condition. Detailed device information is selected by pressing and
holding the "More info" softkey. The time of the alarm occurence is displayed by pressing and
holding the "Event Time" softkey. All unacknowledged alarms entries flash until
acknowledged.

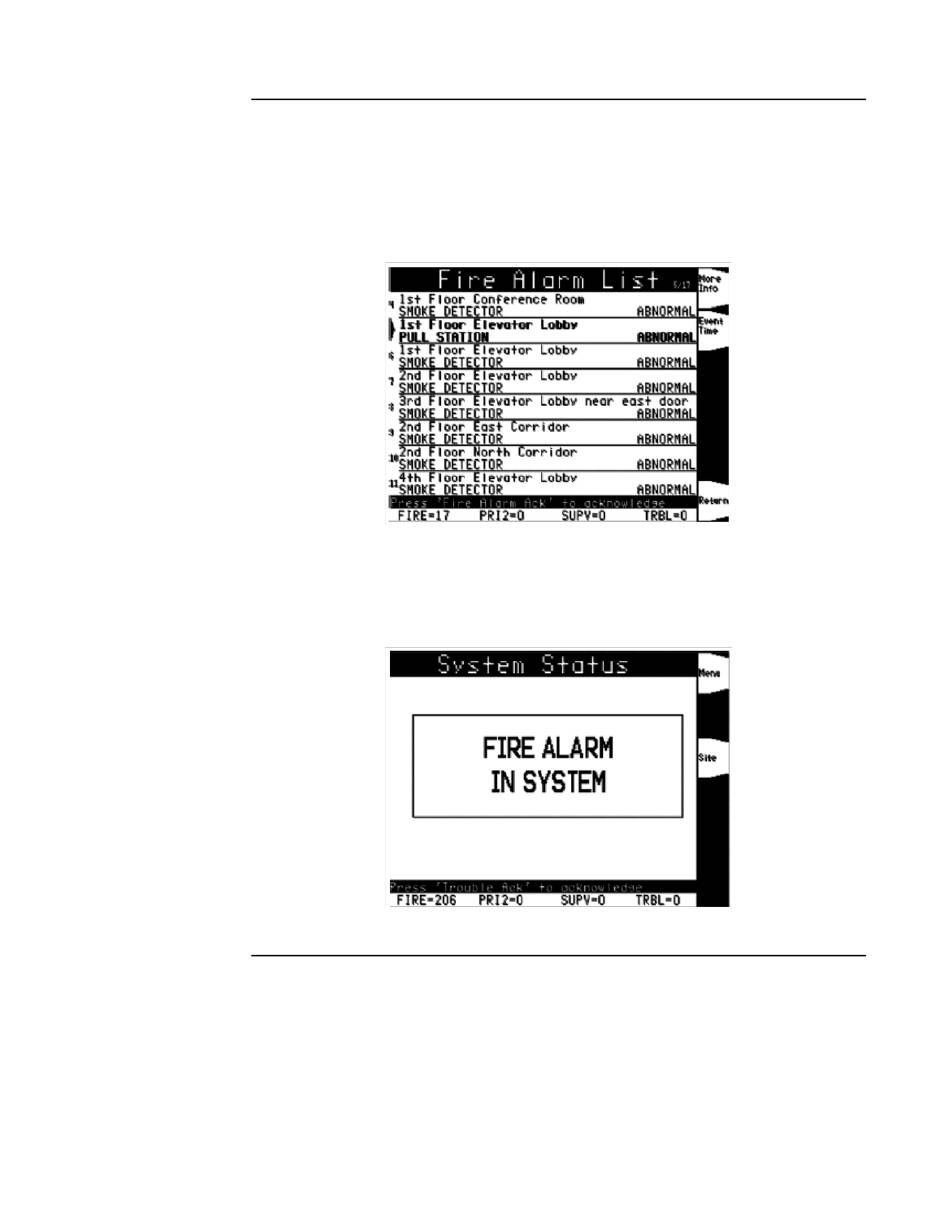

Figure 2-5. Direct to Alarm List Display
General Status Message:
-
centre of the screen, a message indicates the alarm status. Upon acknowledgement of the alarm,
the screen will displays the alarm list.
Figure 2-6. General Status Message
firealarmresources.com
The alarm list displays all devices that have reported an abnormal
A general status message display appears in a text box . In the
2-4
Continued on next page.
