Functional Area Distribution; General Operation; Switching The E-Bike System On/Off; Display Interface - Key-Disp KD51C User Manual

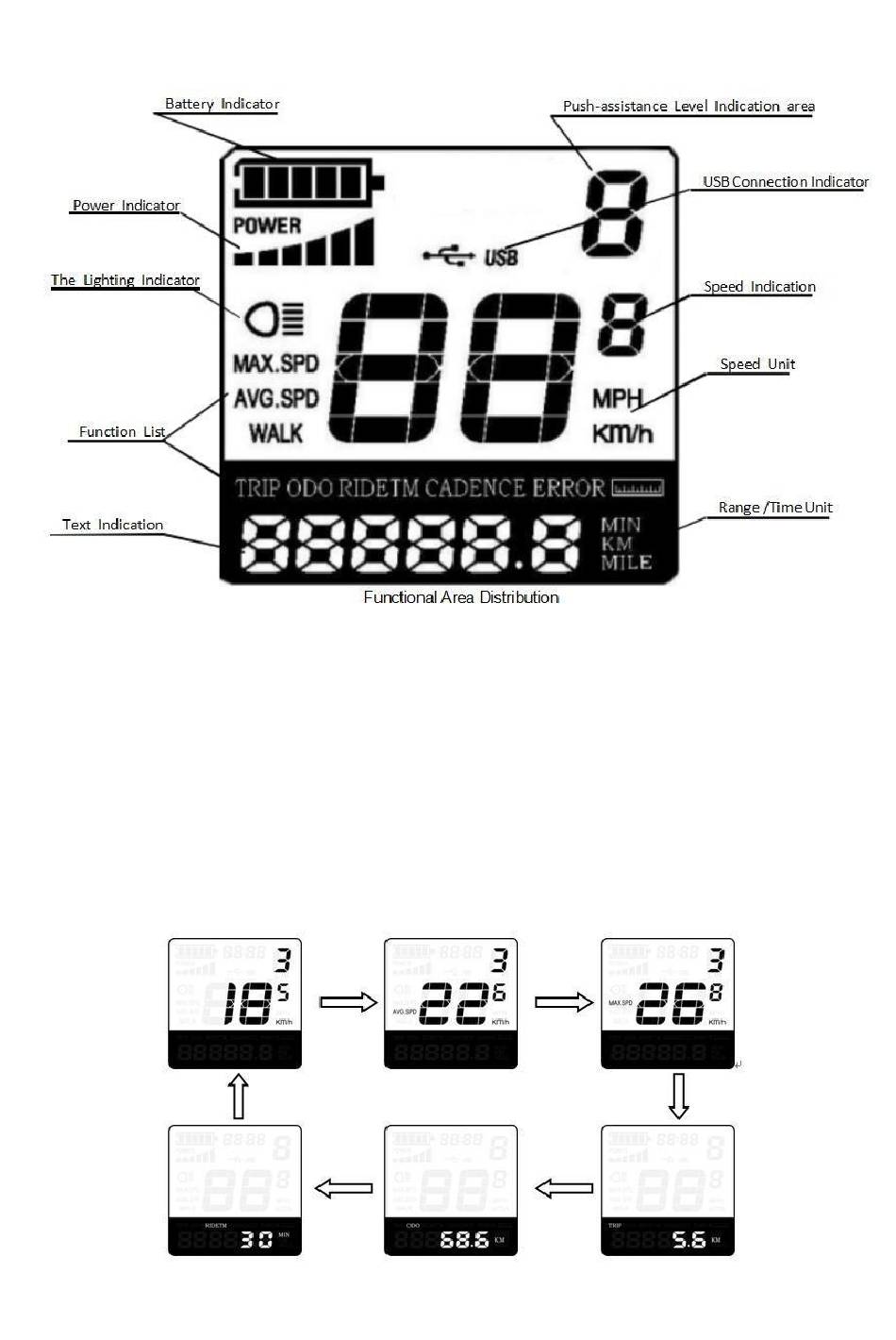

Functional Area Distribution

◆

General Operation

Switching the E-bike System On/Off

◆
Briefly press the power button to switch on the E-bike system,
To hold the power button for 2 s again, the E-bike system will be switched off.
When switching off the E-bike system, the leakage current is less than 1 uA.
■ When parking the E-bike for more than 10 minutes, the E-bike system switches off
automatically.

Display Interface

◆
After switching on the E-bike system, the display will show Speed and Total Distance
by default. Pressing the "i" button will show more riding data as follows: Running
Speed (Km/h)→ Ave. Speed (Km/h) →Max. Speed (Km/h) → Trip Distance (Km) →
Total Distance (Km)→ Trip Time (Min.) .
Display interface cycle
