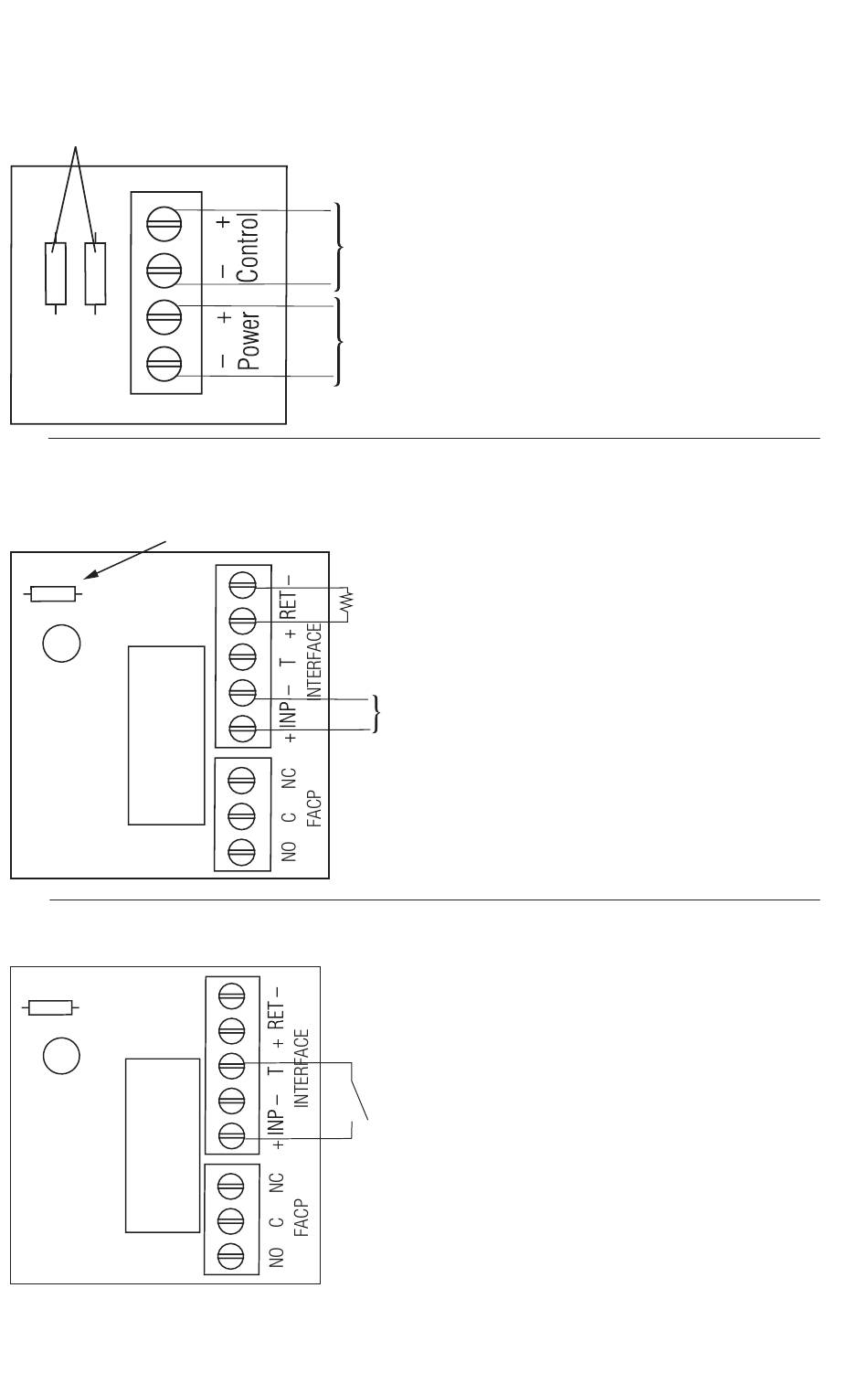

Fig. 5 Optional hook-up using two (2) isolated power supply inputs (Only applicable on eFlow4NA8D:
CUT JUMPERS
J1 AND J2
J2 J1
Fig. 6 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition):
FACP
TRG
Fig. 7 Normally Open: Non-Latching FACP trigger input:
FACP
TRG
eFlowNA8DV Series Installation Guide
Hook-Up Diagrams:
CUT
JUMPER
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
FACP
OUTPUT EOL
FROM FACP
--
OUTPUT
+
CIRCUIT
N.O. TRIGGER
INPUT
- 11 -
