Altronix Trove3MBK3 enclosure/backplane and brackets accommodate Altronix power supply/charger(s), sub-assemblies and Mercury controllers.
• Two (2) tamper switches (Altronix Model TS112 or equivalent).
• Cam lock.
• 16 Gauge enclosure with ample knockouts for convenient access.
• Enclosure Dimensions (H x W x D): 36.12" x 30.125" x 7.06" (917.5mm x 768.1mm x 179.3mm).
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws
in the wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure.
Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install
the three fasteners. Place the enclosure's upper keyholes over the three upper screws.
Install the three lower screws and make sure to tighten all screws.
2. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired location,
opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2" from
the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device. To activate alarm signal open the door of the enclosure.
3. Mount Altronix power supply/charger(s), sub-assemblies and Mercury controllers to brackets (BR3M),
refer to drawings below.
5. Secure BR3M brackets with boards to the backplane (TM3B) utilizing two (2) lock nuts (Fig. 5, pg. 3).

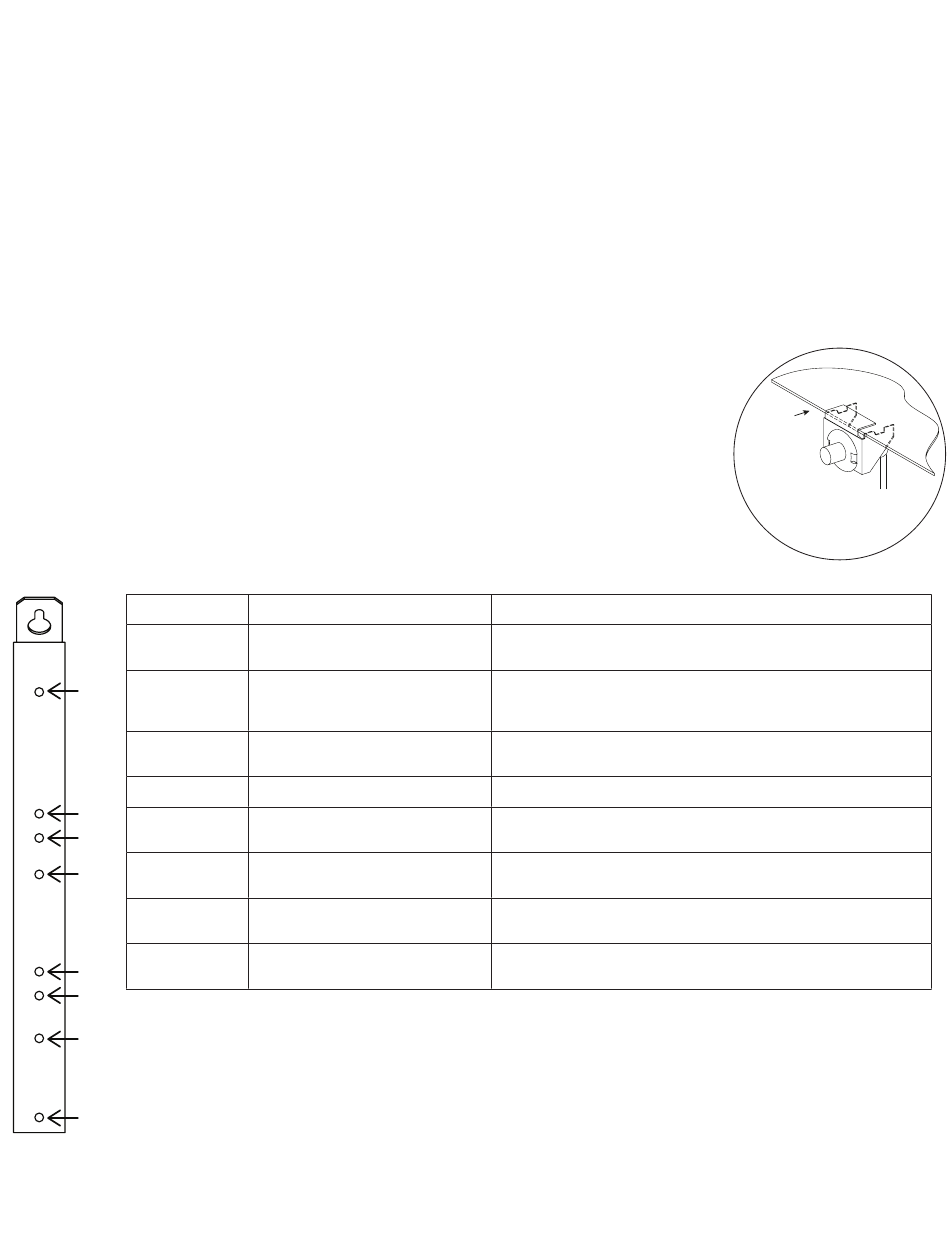

Fig. 2 - Pem location
PEM Location
1
1
2
3
4
2
5
3
4
6
7
8
5
6
7
8
- 2 -

Overview:

Hardware and Accessories:

Mechanical:

Installation Instructions:

Mercury Platform
LP4502, LP1502, MR16IN,
MR16OUT, MR52
LP4502, LP1502, MR16IN,
MR16OUT, MR52
LP2500, MUX8
LP4502, LP1502, LP2500,
MR16IN, MR16OUT, MR52, MUX8
LP4502, LP1502, LP2500,
MR16IN, MR16OUT, MR52, MUX8
Altronix
ACM4(CB), ACM8(CB), ACMS8(CB), LINQ8ACM(CB),
LINQ8PD(CB), PD8UL(CB), PDS8(CB)
eFlow4NB, eFlow6NB,
eFlow102NB, eFlow104NB
ACM4(CB), ACM8(CB), ACMS8(CB), LINQ8ACM(CB),
LINQ8PD(CB), PD8UL(CB), PDS8(CB)
ACM4(CB), LINQ8PD(CB),
PD8UL(CB), PDS8(CB)
eFlow4NB, eFlow6NB,
eFlow102NB, eFlow104NB
ACM4(CB), LINQ8PD(CB),
PD8UL(CB), PDS8(CB)
Fig. 1
Enclosure
Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
