Access & Power Integration
Trove1PH1
- Trove1 enclosure with Altronix/Openpath backplane (TC1)
TC1
- Altronix/Openpath backplane only
Trove2PH2
- Trove2 enclosure with Altronix/Openpath backplane (TCV2)
TCV2
- Altronix/Openpath backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TPH012921
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Table of Contents
Related Manuals for Altronix Trove
Summary of Contents for Altronix Trove
- Page 1 SIGNALING Access & Power Integration Trove1PH1 - Trove1 enclosure with Altronix/Openpath backplane (TC1) - Altronix/Openpath backplane only Trove2PH2 - Trove2 enclosure with Altronix/Openpath backplane (TCV2) TCV2 - Altronix/Openpath backplane only Installation Guide More than just power.™ All registered trademarks are property of their respective owners.

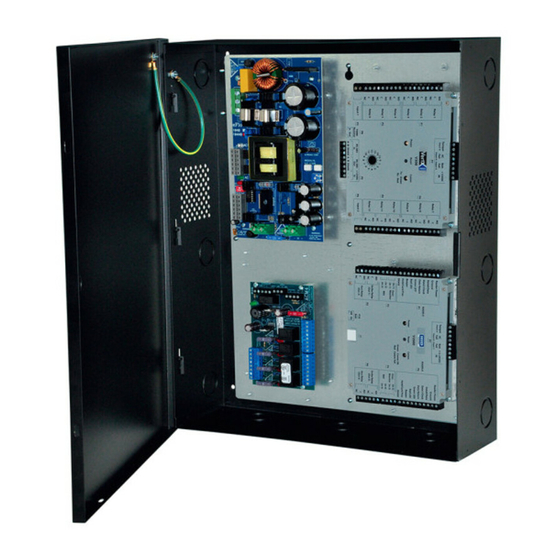

- Page 2 Overview: Altronix Trove1PH1 and Trove2PH2 accommodate various combinations of Openpath boards with or without Altronix power supplies and sub-assemblies for access systems. Specifications: • 16 Gauge backplane and enclosure with ample knockouts for convenient access. Trove1PH1 Trove2PH2 Trove1 enclosure with TC1 Altronix/Openpath backplane Trove2 enclosure with TCV2 Altronix/Openpath backplane •...
- Page 3 TC1: Configuration of Altronix Power Supply, Sub-Assemblies and Openpath Modules 1. Push 5/16” pan head screws (provided) through the wholes in the backplane that match the pattern for Altronix Power Supply/ Charger and/or sub-assemblies from the backside of backplane. Screw spacers onto screws.
- Page 4 TCV2: Configuration of Altronix Power Supply, Sub-Assemblies and Openpath Modules 1. Push 5/16” pan head screws (provided) through the wholes in the backplane that match the pattern for Altronix Power Supply/ Charger(s) and/or sub-assemblies from the backside of backplane. Screw spacers onto screws.
- Page 5 TC1 Dimensions 16.625” x 12.5” x 0.3125” (422.3mm x 317.5mm x 7.9mm) 12.5” (317.5mm) 0.5” (12.7mm) 0.5” (12.7mm) 6.25” (158.75mm) Trove1PH1 / TC1 / Trove2PH2 / TCV2 - 5 -...
- Page 6 Trove1PH1 Enclosure Dimensions (H x W x D): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6” (15.2mm) 0.57”...
- Page 7 TCV2 Dimensions 25.375” x 19.375” x 0.325” (644.5mm x 482.6mm x 8.3mm) 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) Trove1PH1 / TC1 / Trove2PH2 / TCV2 - 7 -...
- Page 8 Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. Trove1PH1 / TC1 / Trove2PH2 / TCV2 A29U...
