Access & Power Integration
Altronix/CDVI Kits
Models Include:

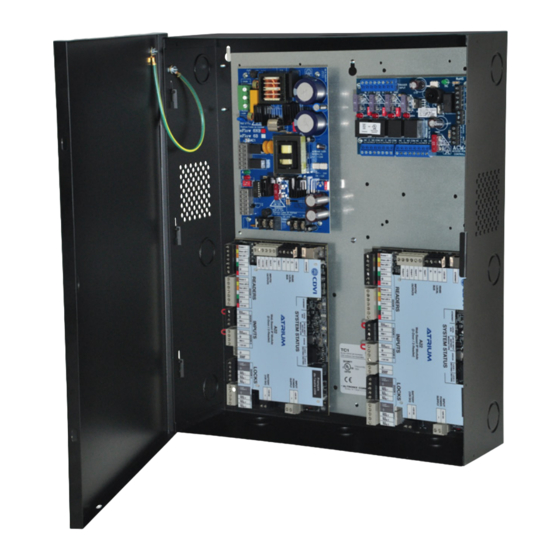

T1CVK3F4
4 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1 enclosure with TC1 Altronix/CDVI backplane
- One (1) eFlow6NB - Power Supply/Charger
- One (1) ACM4 - Fused Access Power Controller
T2CVK7F10
10 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with TCV2 Altronix/CDVI backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) ACM8 - Fused Access Control Module
- One (1) ACM4 - Fused Access Control Module
- One (1) PD8UL - Fused Power Distribution Module
T2CVK33F10
10 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TCV2 Altronix/CDVI backplane
- Two (2) eFlow6NB - Power Supply/Chargers
- Two (2) MOM5 - PTC Power Distribution Modules with
Fire Alarm Interface
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TCVK_042619
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2CVK33F10Q
10 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with TCV2 Altronix/CDVI backplane
- One (1) LINQ2 - Network Communication Module
- Two (2) eFlow6NB - Power Supply/Chargers
- Two (2) MOM5 - PTC Power Distribution Modules with
Fire Alarm Interface
T3CVK77F20
20 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove3 enclosure with TCV3 Altronix/CDVI backplane
- Two (2) eFlow104NB - Power Supply/Chargers
- Two (2) ACM8 - Fused Access Control Modules
- One (1) ACM4 - Fused Access Control Module
- One (1) PD8UL - Fused Power Distribution Module
- One (1) RSB2 - Rocker Switch Bracket with
Two (2) Rocker Switches (Not evaluated by UL
More than just power.™

Advertisement

loading
Need help?

Need help?

Do you have a question about the T1CVK3F4 and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix T1CVK3F4

Summary of Contents for Altronix T1CVK3F4

  • Page 1 10 Door Kit with PTC Outputs Fully assembled kit includes: Fully assembled kit includes: - Trove1 enclosure with TC1 Altronix/CDVI backplane - Trove2 enclosure with TCV2 Altronix/CDVI backplane - One (1) eFlow6NB - Power Supply/Charger - One (1) LINQ2 - Network Communication Module...

  • Page 2: Configuration Chart

    Install the lower screws and make sure to tighten all screws. 3. Mount included UL Listed tamper switch(es) (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
  • Page 3 T1CVK3F4: Configuration of CDVI A22K/A22NB/ADH10 Boards 1. Fasten spacers (supplied with A22K/A22NB/ADH10) to CDVI A22K/A22NB/ADH10 board (Fig. 2b, pg. 3). 2. Mount CDVI A22K/A22NB/ADH10 boards into the correct positions (Fig. 2, pg. 3) by postioning spacers over appropriate holes on the backplane and depressing down on board to secure spacer to the backplane (Fig. 2a, 2b, pg. 3).
  • Page 4 Please make sure that they are mounted correctly, as shown in Fig. 3 below. 3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided). Fig. 3 Fig. 3a RJ45 Jack Altronix eFlow104NB Spacer CDVI - A22K/A22NB/ADH10 Backplane CDVI -...
  • Page 5 3. Fasten backplane to Trove2 enclosure utilizing pan head screws (provided). Fig. 4 LINQ2 Module (T2CVK33F10Q) Fig. 4a OFF - 24V ON - 12V Spacer RJ45 Jack Altronix - eFlow6NB CDVI - A22K/A22NB/ADH10 Backplane AC DC NC C NO NC C NO TRIGGER +AUX- AC FAIL...
  • Page 6 Please make sure that they are mounted correctly, as shown in Fig. 5 below. 3. Fasten backplane to Trove3 enclosure utilizing pan head screws (provided). Fig. 3 Fig. 6a RJ45 Jack RJ45 Jack CDVI - A22K/A22NB/ADH10 CDVI - A22K/A22NB/ADH10 Altronix - eFlow104NB RSB2 Spacer Backplane RJ45 Jack RJ45 Jack CDVI - A22K/A22NB/ADH10...
  • Page 7 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
  • Page 8 Notes: - 8 - Trove CDVI Kits Installation Guide...
  • Page 9 Notes: - 9 - Trove CDVI Kits Installation Guide...
  • Page 10 T1CVK3F4 (Trove1) Enclosure Dimensions (H x W x D approximate): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6”...
  • Page 11 T2CVK7F10 and T2CVK33F10 (Trove2) Enclosure Dimensions (H x W x D approximate): 27.25” x 21.5” x 6.5” (692.2mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77”...
  • Page 12 (50.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IITrove CDVI Kits I27U - 12 -...
