Altronix Trove3MBK3 Installation Manual

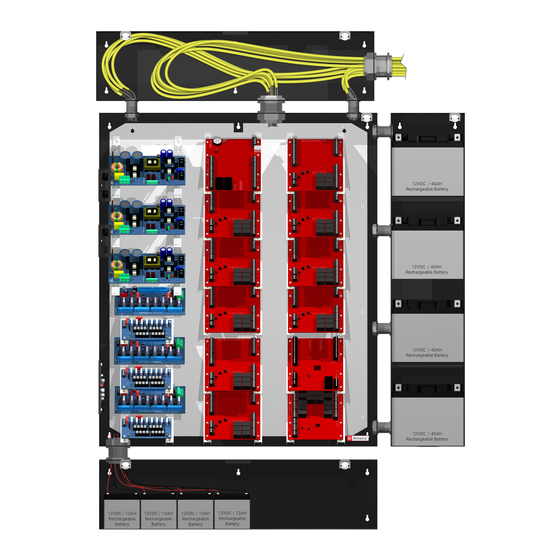

Trove3 enclosure with tm3b backplane and 36 br3m mounting brackets

Access & Power Integration

Trove3MBK3

Trove3 enclosure with TM3B backplane and

36 BR3M mounting brackets

Installation Guide

All components of this Trove kit are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

More than just power.™

All registered trademarks are property of their respective owners.

Rev. T3MBK3042121

Installing Company: _________________________ Service Rep. Name: __________________________________________

Address: _________________________________________________________ Phone #: _________________________

Table of Contents

Need help?

Do you have a question about the Trove3MBK3 and is the answer not in the manual?

Page 1 Access & Power Integration Trove3MBK3 Trove3 enclosure with TM3B backplane and 36 BR3M mounting brackets Installation Guide All components of this Trove kit are UL Listed sub-assemblies. Please refer to the included corresponding Sub-Assembly Installation Guides for further information. More than just power.™...
Page 2 Install the three lower screws and make sure to tighten all screws. Enclosure 2. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired location, Edge of opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from Enclosure the right side (Fig.
Page 3 Trove3MBK3 Configuration of Altronix / LenelS2 / Mercury Platform Boards: Altronix / Lenel / Mercury Access Controller Pem Mounting eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB ACM4, ACM4CB, ACM8, ACM8CB, ACMS8, ACMS8CB, LINQ8ACM, LINQ8ACMCB, LINQ8PD, LINQ8PDCB, PD4UL, PD4ULCB, PD8UL, PD8ULCB, PDS8, PDS8CB LNL-2220, LNL-4420, LNL-1320, LNL-1100, LNL-1200, LP1502, LP4502, MR52, MR16IN, MR16OUT Fig.
Page 4 8.75” (222.3mm) 2” (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IITrove3MBK3 I02U MEMBER - 4 -...
