The cable is used to connect the CLI of the BDCOM S2510-C switch and the
outside console terminal device. One end of the cable is a 8-pin RJ45 plug and the
other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the CLI on
the BDCOM S2510-C switch.
3.3.2 Connecting GSFP ports
BDCOM S2510-C provides 2 gigabit GSFP ports, and their corresponding
indicators are 9~10. The ports can connect other GSFP modules through the fiber
to other Ethernet terminal devices.

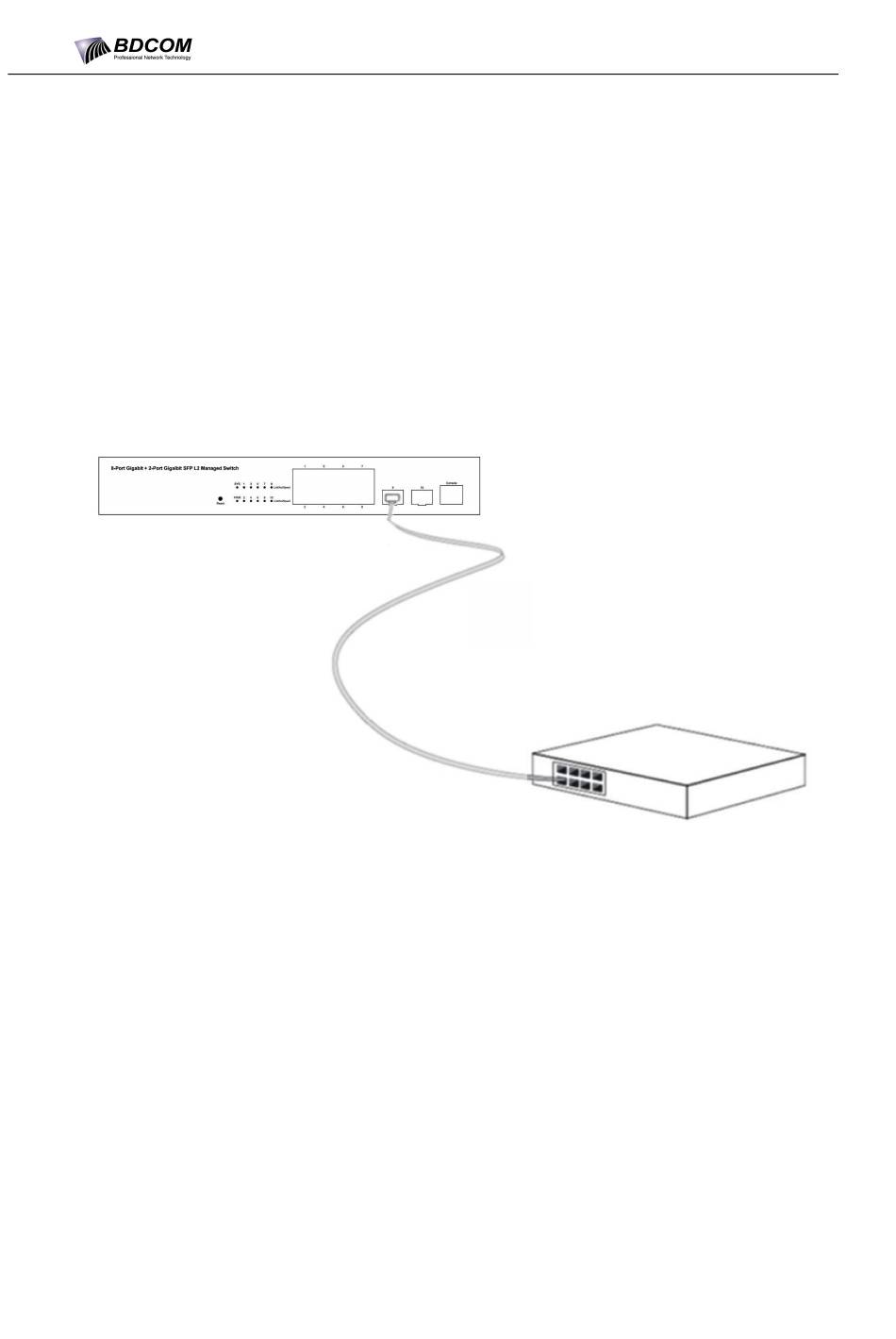

Figure 3-5 Connecting the 1000M Base-TX port and other Ethernet terminals
3.3.3 Connecting Ethernet TX Ports
The BDCOM S2510-C switch has 8 10/100/1000Base-T ports and their
corresponding indicators 1 to 8, used for indicating the state of port
Link/ACT/Speed.
To use the electrical port, you can connect the electrical port and other Ethernet
devices with the direct-through or cross cable through the UTP port. In this case,
the corresponding optical port cannot be used. The numbering order of the pins in
the UTP port is the same as the console port.
BDCOM S2510-C Hardware Installation Manual
- 11 -
