HDEX80-KVM
1080P HDMI KVM Extender with USB2.0
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDEX80-KVM and is the answer not in the manual?

Questions and answers

Related Manuals for AV Access HDEX80-KVM

Summary of Contents for AV Access HDEX80-KVM

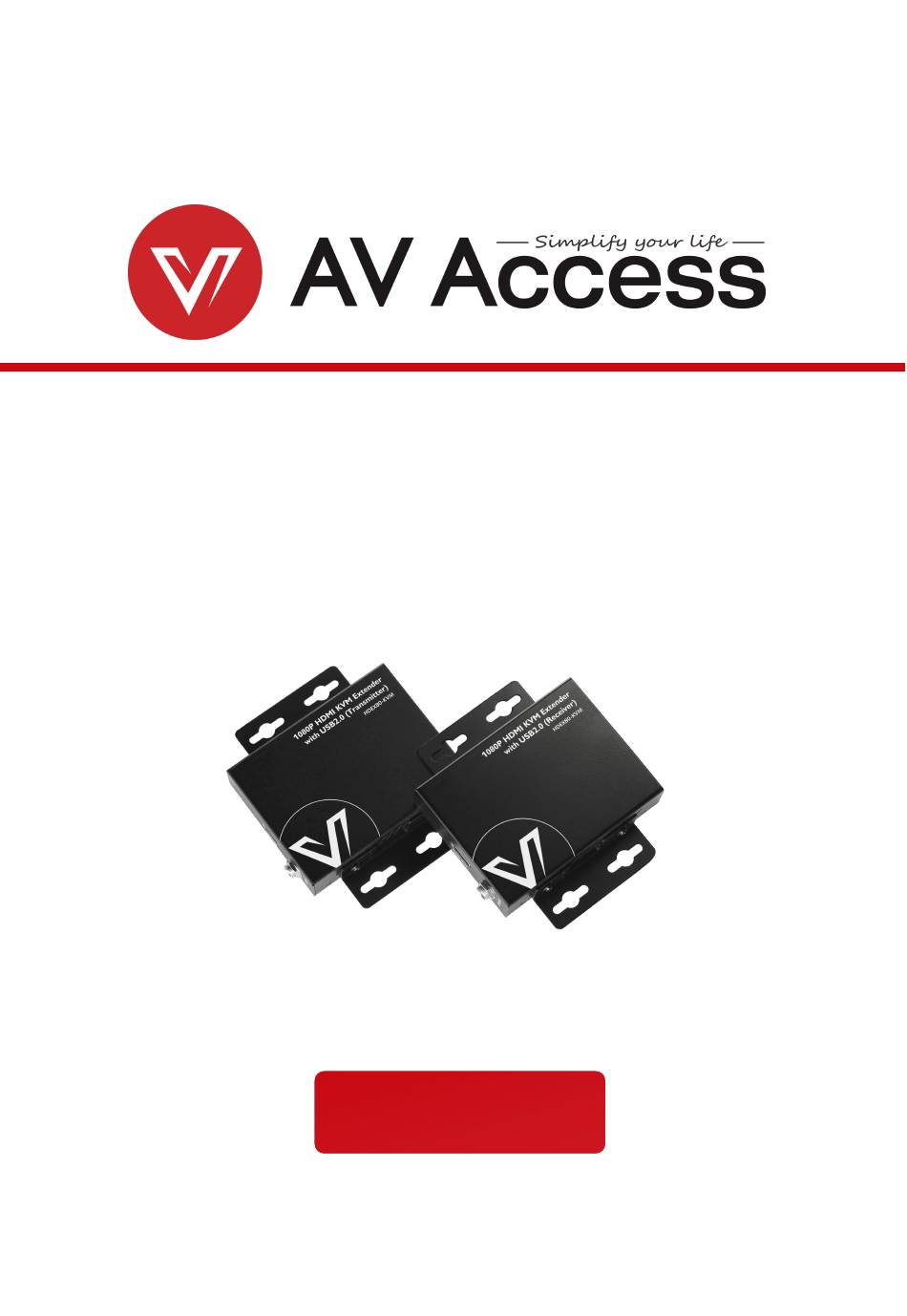

  • Page 1 HDEX80-KVM 1080P HDMI KVM Extender with USB2.0 User Manual...
  • Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
  • Page 4 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects  filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...

  • Page 5: Table Of Contents

    Introduction Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Transmitter ........................4 Receiver ........................... 5 Installation and Application................. 6 Brackets Installation ......................6 Steps to install the device in a suitable location ..........6 Application ..........................

  • Page 6: Introduction

    Introduction Overview The HDEX80-KVM extends full HD HDMI signal up to 80m/260ft via a single Cat X cable, without any video loss and time delay. It supports USB 2.0 pass-through. With USB Host connector in transmitter, and USB Device connectors in receiver, it provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 80m/260ft.

  • Page 7: Package Contents

    Introduction Package Contents Before you start the installation of the product, please check the package contents: HDEX80-KVM Transmitter x 1  HDEX80-KVM Receiver x1  Power Adapter (DC 12V 2A) x 1  USB type-A to type-A Cable x 1 ...

  • Page 8: Panel

    Introduction Panel Transmitter Name Description HDMI In HDMI signal input. Connects to an HDMI source device Power input. Connects to the power adapter provided. DC 12V Only one power adapter is needed at transmitter or receiver side. Connects to the receiver via Cat X cable. UTP Out USB (PC) Connects to a computer.

  • Page 9: Receiver

    Introduction Receiver Name Description HDMI Out HDMI signal output. Connect to an HDMI display device Power input. Connect to the power adapter provided. DC 12V Only one power adapter is needed at transmitter or receiver side. Connects to the transmitter via Cat X cable. UTP In USB Device Connects to the USB devices.

  • Page 10: Installation And Application

    Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure HDEX80-KVM is disconnected from the power source. Steps to install the device in a suitable location Attach the installation bracket to the enclosure using the screws that were provided in the package separately.

  • Page 11: Application

    Installation and Application Application Installation requirements Power Supply Connect to the PC Connect to Connect to an the power HDMI source supply device. Note: Only one power adapter is needed at transmitter or receiver side. Transmitter Connect the transmitter to receiver via single Cat X cable.
  • Page 12 Installation and Application Display devices: With HDMI input interface, SDTV, HDTV, projector etc.  USB devices: With USB2.0 input interfaces, keyboard, mouse, camera, Mic,  mobile HD etc. (Users should insert the power adapter to receiver when connected the hard disk to the USB port) Cat X cables: UTP/STP Cat5e/6/6a cable, which following the standard of ...

  • Page 13: Specifications

    Specifications Specifications Technical Video Signal Type HDMI 1.3 with HDCP 1.4 1080P@60/50/30/25Hz; 720P@60/50Hz; Input/Output Resolution Support 480P@60Hz PCM 2.0 Audio Format Supported 6.75 Gbps Max Data Rate HDMI Signal: Up to 260ft/80m via Cat 5e/6 or better cable. Transmission Distance USB Signal: Up to 260ft/80m.

  • Page 14: Trouble Shooting

    Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, extender, display devices) Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly.

  • Page 15: Warranty

    The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
  • Page 16 AV Access Technology Limited V1.0.0...
