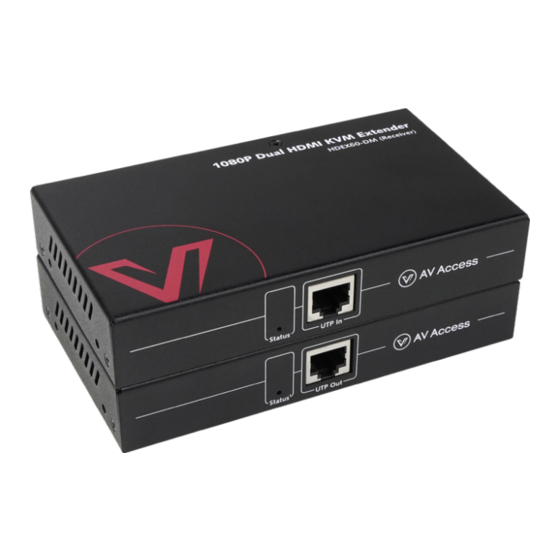

- Page 1 HDEX60-DM 1080P Dual HDMI KVM Extender with USB2.0 User Manual...
- Page 2 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 3 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 4: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................2 Panel ............................3 Installation and Application ................4 Brackets Installation ......................4 Application ..........................5 Specifications ....................... 6 Trouble Shooting ....................7 Warranty ....................... 8 www.avaccess.com info@avaccess.com... -
Page 5: Introduction
Introduction Introduction Overview This product is a 60m dual HDMI KVM extender kit. The kit supports visual lossless compression function, and it can transmit dual HDMI signals up to 1080P@60Hz 4:4:4 8bit to two HDMI displays via a single Cat 5e/6/6a/7 cable. With one USB host port in transmitter and four USB 2.0 device ports in receiver, the kit also supports USB 2.0 pass-through. -
Page 6: Panel
Introduction Panel Transmitter Name Description On: HDMI data is being transmitted. Status LED Off: No signal. UTP Out Connect to UTP In port of the receiver. Connect to the provided power adapter. With one-way PoC DC 12V supported, one power adapter is needed to be connected to the receiver to power both units. -
Page 7: Installation And Application
Installation and Application Name Description from HDMI In 1 and 2 respectively. Connect to USB devices. Note: USB ports support the USB 2.0 standard with a USB Device maximum of 1A for the top two ports and 0.5A on the bottom two ports. -
Page 8: Application
Installation and Application Application Users can connect a PC to USB Host port of the transmitter. Insert the PC to HDMI In 1/2 port of the transmitter. All USB devices connected to the receiver will be connected to the PC. The display connected to HDMI Out 1/2 of the receiver will display the signal from HDMI In 1/2. -
Page 9: Specifications
Specifications Specifications Technical Video Signal Type HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 Input/Output Resolution 1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz Audio Format PCM 2.0 Max Data Rate 6.75 Gbps General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 20% to 90%, non-condensing Power Consumption... -
Page 10: Trouble Shooting
... -
Page 11: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable. - Page 12 AV Access Technology Limited V1.0.1...
