- Page 1 HDEX80-KVM 1080P HDMI KVM Extender with USB2.0 User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
-
Page 4: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ... -
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Transmitter ........................4 Receiver ........................... 5 Installation Instructions ..................6 Installation requirements ................... 6 Specification ......................7 Trouble Shooting ....................8 Five Steps of Regular Troubleshooting Routine .......... -
Page 6: Introduction

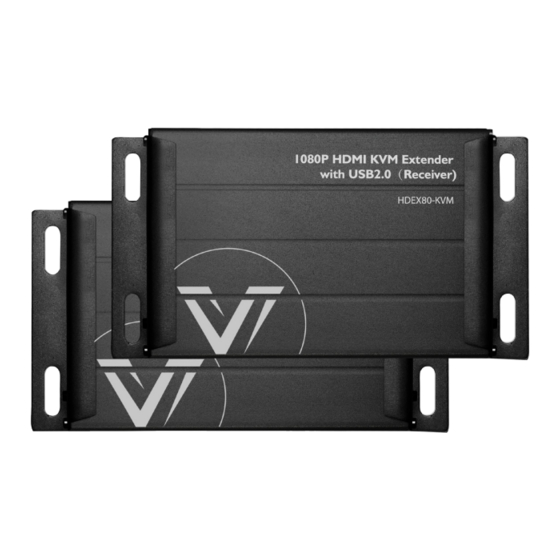

Introduction Overview The HDEX80-KVM extend full HD HDMI signal up to 80 meters via a single CatX cable, without any video loss and time delay. With USB2.0 pass-through and USB Host connector in transmitter, and USB Device connectors in receiver, it provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 80m. -
Page 7: Package Contents
Introduction Package Contents Before you start the installation of the product, please check the package contents: HDEX80-KVM Transmitter x 1 HDEX80-KVM Receiver x1 Power Adapter (DC 12V 2A) x 1 USB Cable x 1 User Manual x 1 ... -
Page 8: Panel
Introduction Panel Transmitter Name Description HDMI In HDMI signal input to connect with HDMI source device Power input. DC 12V Only one power adapter is needed at transmitter or receiver side. Connects to receiver via CatX cable. UTP Out USB (PC) Connects to computer. -
Page 9: Receiver
Introduction Receiver Name Description HDMI signal output to connect with HDMI display HDMI Out device Power input. DC 12V Only one power adapter is needed at transmitter or receiver side. Connects to transmitter via CatX cable. UTP In USB Device Connects the USB devices. -
Page 10: Installation Instructions
Installation Instructions Installation Instructions Installation requirements HDMI source devices: With HDMI output interface, DVD, PS3, STB, PC etc. Display devices: With HDMI input port, SDTV, HDTV, projector etc. USB devices: With USB2.0 input ports, keyboard, mouse, camera, Mic, mobile ... -
Page 11: Specification
Specification Specification Technical Video Signal Type HDMI1.3 with HDCP1.4 1080P@60/50/30/25Hz; 720P@60/50Hz; Input/Output Resolution Support 480P@60Hz HDMI Signal: Up to 80m via Cat5e/6 or better cable. Transmission Distance USB Signal: Up to 80m. General Operating Temperature -20°C to 70°C Storage Temperature -40°C to 80°C Humidity 20% to 90%, non-condensing... -
Page 12: Trouble Shooting
Trouble Shooting Trouble Shooting Five Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, extender, display devices) Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly. -
Page 13: Warranty
Warranty Products are backed by a limited 1-year part and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable. - Page 16 AV Access Technology Limited V1.0.0...
