- Page 1 4KEX100-KVM 4K HDBaseT Extender 100m with USB2.0 User Manual...
- Page 3 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 4: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 5: Table Of Contents
Table of Contents Overview ....................... 1 Package Contents ........................3 Panel ............................4 EDID Management ....................8 Installation Instructions ..................9 Specification ....................... 10 Warranty ......................14... -
Page 6: Overview
Overview Overview 4KEX100-KVM is a 100m 4K HDBaseT 2.0 Extender which offers the distribution of uncompressed 4K@60Hz UHD video, Analog Stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single Cat6 or above cable. With USB 2.0 pass-through and USB Host connector in TX, and USB... - Page 7 Overview High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT Independent DIP switch for EDID management Does not support HDCP www.avaccess.com...
-
Page 8: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x Transmitter 4KEX100-KVM 1 x Receiver 4KEX100-KVM 1x 12 VDC 2A Power Supply 2 x Phoenix Male Connector (3.5 mm, 3 pins) ... -
Page 9: Panel

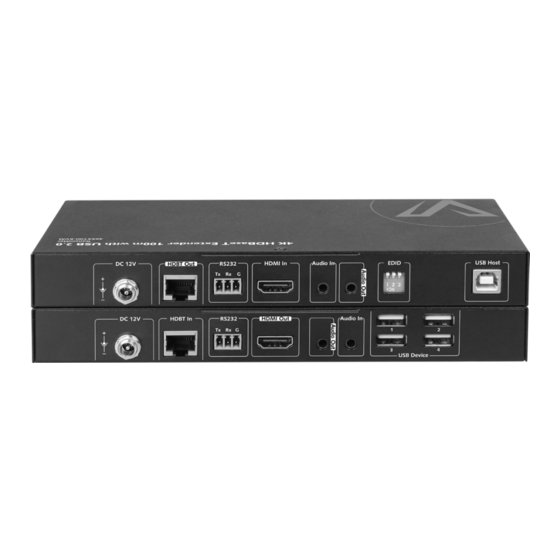

Overview Panel Transmitter Front Panel No. Name Description ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing Slowly: The transmitter is working properly. Status LED OFF: The transmitter is not working properly. ON: HDBT Link is normal Link LED OFF: No HDBT Link www.avaccess.com... - Page 10 Overview Rear Panel No. Name Description 12V DC power input, threaded port for standard DC 12V or locking connection Connects to HDBT IN port of receiver HDBT OUT RS232 pass through RS232 HDMI IN Connects to an HDMI source Input: connects to audio devices AUDIO Output: connects to audio devices DIP Switch for EDID Management...
- Page 11 Overview Receiver Front Panel No. Name Description ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing Slowly: The transmitter is working properly. Status LED OFF: The transmitter is not working properly. ON: HDBT Link is normal Link LED OFF: No HDBT Link www.avaccess.com...
- Page 12 Overview Rear Panel No. Name Description 12V DC power input, threaded port for standard DC 12V or locking connection Connects to HDBT OUT port of transmitter HDBT IN RS232 pass through RS232 HDMI OUT Connects to an HDMI Sink Input: connects to audio devices AUDIO Output: connects to audio devices Connects to USB device such as keyboard,...
-
Page 13: Edid Management
EDID Management EDID Management Please use the DIP Switch for EDID management: DIP Switch Position 1 Position 2 Position 3 EDID Copy (Default) DOWN DOWN 3840 x 2160P@30Hz 2CH DOWN RESERVED 1920 x 1080P@60Hz 2CH DOWN 1920 x 1200@60Hz 2CH Note: If EDID copy failed, it will use 1080p/2ch as EDID for input. -
Page 14: Installation Instructions
Installation Instructions Installation Instructions Note: Disconnect all power supplies of all devices before installation. During the installation, connect or disconnect the cables gently. www.avaccess.com... -
Page 15: Specification
Specification Specification Transmitter Video Input 1 x HDMI Input Signal Type HDMI 1.4 with 4K 4096x2160@24/25/30/50/60Hz, Input Resolution 3840x2160@24/25/30/50/60Hz, Support 1080P, 1080I, 720P, 576p, 576i, 480p Input Video Level 0.5-1.0 V p-p Input DDC Signal 5V p-p Maximum Pixel Clock 297MHz Output 1 x HDBT... - Page 16 Specification General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV(Air-gap discharge)/ ±4kV(Contact discharge) Voltage: ±1 kV (Ten times respectively for the positive Surge Protection and negative voltage) Data communication cord: 1 kV...
- Page 17 Specification Video Output 1 x HDMI Output Signal Type HDMI 1.4 with 4K 4096x2160@24/25/30/50/60Hz, Output Resolution 3840x2160@24/25/30/50/60Hz, Support 1080P, 1080I, 720P, 576p, 576i, 480p Video Impedance 100 Ω Audio Audio input 3.5mm Mini jack, stereo Audio output 3.5mm Mini jack, stereo Control Control method 1x RS232, 4x USB Device...
- Page 18 Specification General Product Weight 0.46kg Certification CE, FCC, RoHS Cable Specifications Note: AV Access recommends use of straight-through Category cables wired to T568B standard. Cable Type Range Supported Video Cat5e 100m Up to 1080p@60Hz, 36bit (data rates lower than 5.3 Gbps or...
-
Page 19: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.2...
