  • Page 1 1080P Wireless HDMI Extender HDW100 User Manual...

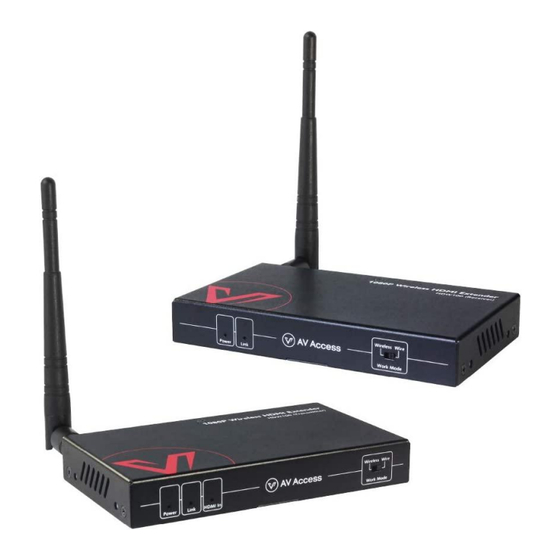

  • Page 2 Introduction Introduction Overview The 1080P wireless HDMI extender set extends HDMI signals from a source device to a display device wirelessly up to 200 meters or through a Cat 5e/6 cable up to 120 meters. It is ideal for applications for homes and offices. Features Transmits 1080P HDMI signals up to 200m wirelessly.
  • Page 3 Introduction Panel Transmitter Receiver...

  • Page 4: Installation And Application

    Installation and Application Installation and Application Bracket Installation Note: Before installation, please ensure device disconnected from the power source. Position and install the mounting brackets using the mounting screws provided. Repeat above step for the other side of the device. Attach the brackets to the surface you want to hold the device against using the screws (not included).
  • Page 5 Application (1) 1-1 Wireless Transmission DVD Player DVD Player Remote IR Emitter IR Receiver Transmitter Receiver Fig 1 (2) 1-1 Wired Transmission DVD Player DVD Player Remote IR Emitter IR Receiver Transmitter Receiver Fig 2 Note: "Work Mode" Switch Settings Fig 1 Fig 2 Transmitter Wireless...

  • Page 6: Specifications

    Specifications Specifications Technical Transmitter: 1 x HDMI Input A/V Port Receiver: 1 x LAN, 1 x WLAN Input Resolutions Up to 1080P@60Hz Transmitter: 1 x HDMI, 1 x LAN, 1 x WLAN Output A/V Port Receiver: 1 x HDMI Output Resolutions Up to 1080P@60Hz Compliance HDMI 1.3, HDCP 1.4...

  • Page 7: Warranty

    The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
