Summary of Contents for AV Access HDEX40-L
- Page 1 HDEX40-L 50m 1080P HDMI Extender User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Transmitter ........................4 Receiver ........................... 5 Installation and Application................. 6 Brackets Installation ......................6 Steps to install the device in a suitable location ..........6 IR Cable Operation ........................ -
Page 6: Introduction
Introduction Overview HDEX40-L is a 50m 1080P cost-effective HDMI extender, and offers the extension of full HD video, 2CH audio and IR pass through up to 50m/164ft along a single Cat X cable. With a feature set including transmission of uncompressed 1080p HD video@60Hz, stereo audio, one-way IR pass through and PoC (Power over Cat X cable). -
Page 7: Package Contents
Introduction Simply stick to TV by Velcro Hook/Loop Tape Package Contents Before you start the installation of the product, please check the package contents: Transmitter x 1 Receiver x1 Power Adapter (DC 5V 1A) x1 IR Emitter x1 ... -
Page 8: Panel

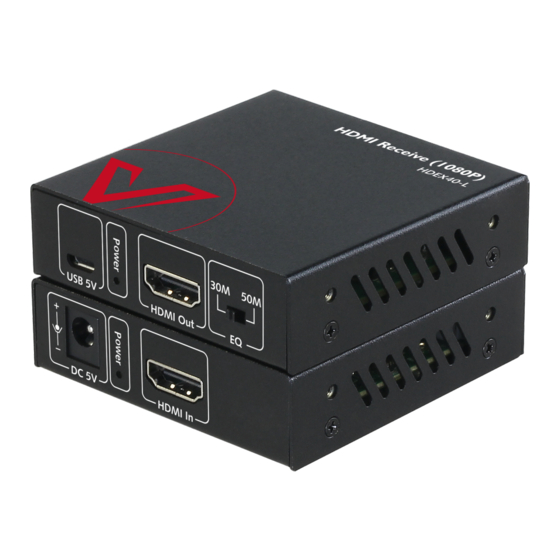

Introduction Panel Transmitter Name Description Power input. DC 5V Connect to the power adapter provided. The receiver can be powered by transmitter. Power LED ON: The transmitter is powered on. (Green) OFF: The transmitter is powered off. HDMI In Connect with HDMI source device Connect to the receiver via Cat X cable. -
Page 9: Receiver
Introduction Receiver Name Description USB 5V Connect to USB device to power for the receiver. ON: The receiver is powered on. Power LED (Green) OFF: The receiver is powered off. HDMI Out Connect an HDMI display. Manual DIP Switch: adjust maximum transmission distance to 30m or 50m manually. -
Page 10: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure HDEX40-L is disconnected from the power source. Steps to install the device in a suitable location Attach the installation bracket to the enclosure using the screws that were provided in the package separately. -
Page 11: Ir Cable Operation
Installation and Application IR Cable Operation Cable Type IR Emitter: Connect to the "IR Out" port of the device. Broadband IR Receiver (30-50 KHz): connect to the "IR In" port of the device. Using the IR Emitter Insert the IR emitter plug into the “IR Out” jack located on the transmitter or receiver. - Page 12 Installation and Application IR Signal Emission Controlled Device IR Emitter IR Receiver Example 3: When connected to control system, ensure the IR emitter is over against the IR receiver's front side instead of its flat side (see below picture): IR Receiver IR Emitter IR Receiver IR Emitter...
- Page 13 Installation and Application IR Receiver TIVO BOLT Note: Products from AV Access do not support Bluetooth control, the introduction above applies to device with IR control capability only. Here is a list about different devices' control method. Device Control Method...
-
Page 14: Application
Installation and Application Application Power Supply Blu-ray Player Connect IR Emitter cable to IR Out Port of N595 Connect an HDMI source to HDMI In port of N595 Transmitter Switch EQ to 30m or 50m, use single Cat X cable to connect the transmitter and receiver. -
Page 15: Specifications
Specifications Specifications Technical Video Signal Type HDMI 1.3b with HDCP 1.4 1920x1080I , 1920x1080P , 1080x720P 720x568P , 720x568I ,720x480P 720x480I Input/Output Resolution Support 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz;... -
Page 16: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, extender, display devices) Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly. -
Page 17: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.1...
