- Page 1 HDEX40 40m HDMI Extender User Manual...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 3: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 4: Table Of Contents
Overview Table of Contents Overview ....................... 2 Package Contents ........................3 Panel ............................4 Installation Instructions ..................6 Trouble Shooting ....................7 Specification ......................9 Warranty ......................10 www.avaccess.com... -
Page 5: Overview

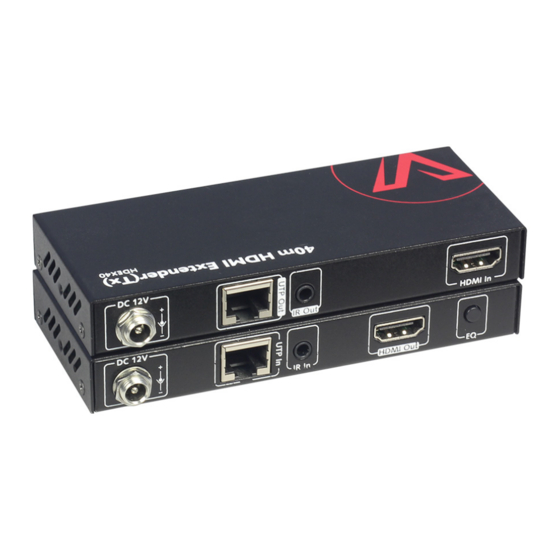

Overview Overview HDEX40 is a 40m Ultra-slim HDMI extender which offers the extension of full HD video, audio and one-way IR control up to 40m/130ft along a single Cat5e/6a cable. With a feature set including transmission of uncompressed HD video 1080p@60Hz with 24bit color, 2ch audio and one-way IR control, it offers the added benefit of an incredibly low-profile and ease of installation. -
Page 6: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x Transmitter 1 x Receiver 2 x Power Supply (DC 12V 0.5A) 1 x IR Emitter 1 x IR Receiver (30-50KHz) ... -
Page 7: Panel
Overview Panel Front Panel Transmitter/Receiver Name Description On: The device is powered on. Power LED Off: The device is powered off. On: HDMI signal is transmitting successfully. Status LED Blinking/Off: HDMI signal is not transmitting successfully. Rear Panel Transmitter Name Description DC 12V DC 12V 0.5A power supply input... - Page 8 Overview Name Description UTP Out Connects to the receiver Connects to an IR emitter cable. Secure the IR emitter on IR Out the IR receiving sensor of source device with adhesive. HDMI In Connects to an HDMI source Receiver Name Description DC 12V DC 12V 0.5A power supply input...
-
Page 9: Installation Instructions
Installation Instructions Installation Instructions www.avaccess.com... -
Page 10: Trouble Shooting
Trouble Shooting Trouble Shooting Five Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, extender, display devices) Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly. - Page 11 How can I make the IR work with third party control devices? Please make sure the third party device follows our pin definition as below: You can purchase a AV Access universal IR cable that will be compliant with any third party device.(Amazon ASIN: "B01MYX46IC") www.avaccess.com...
-
Page 12: Specification
Specification Specification Technical Video Signal Type HDMI 1.3b VESA: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, Input/Output Resolution Support 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz; 1920x1080@60Hz, 1920x1200@60Hz SMPTE: 1080p@30/50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p Stereo Audio Format General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity... -
Page 13: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 14 AV Access Technology Limited V1.0.4...
