Summary of Contents for AV Access 4KEX100-KVM
- Page 1 4K HDBT HDMI KVM Extender with USB 2.0 4KEX100-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................2 Overview ........................2 Features ........................2 Package Contents ....................2 Panel .......................... 3 Front Panel ...................... 3 Rear Panel ......................3 Installation and Application ............... 4 Bracket Installation ....................4 Application ......................5 EDID Management ................6 Specification .................. -
Page 3: Introduction
Introduction Introduction Overview 4KEX100-KVM is a 4K HDBaseT 2.0 extender set, which offers extension of uncompressed 4K@60Hz UHD video, analog Stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single Cat 6 or above cable. With USB 2.0 pass-through and USB Host connector in TX, and USB... -
Page 4: Panel
Introduction Panel Front Panel Transmitter/Receiver Power Status Link Name Description On: The device is powered on. Power LED Off: The device is powered off. Blinking slowly: The device is working properly. Status LED Off: The device is not working properly. ... -
Page 5: Installation And Application

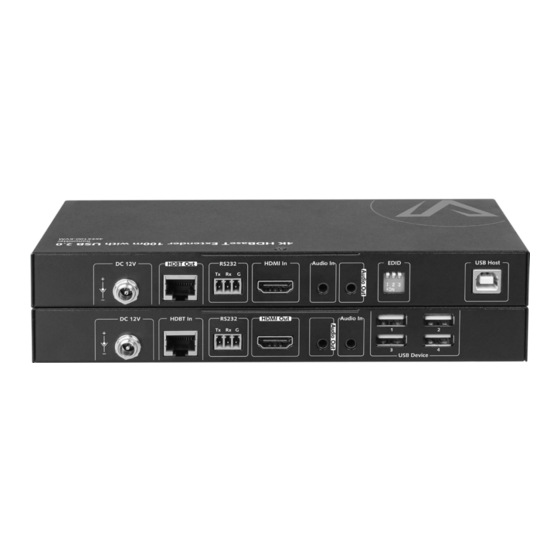

Installation and Application Receiver DC 12V HDBT In RS232 HDMI Out Audio In USB Device Name Description 12V DC power input, threaded port for standard or DC 12V locking connection. HDBT IN Connect to HDBT OUT port of transmitter. RS232 RS232 pass through. -
Page 6: Application
Installation and Application Application Note: Disconnect all power supplies of all devices before installation. During the installation, connect or disconnect the cables gently. Power supply Connect the power Connect Connect audio Connect Note: When transmitter HDMI source source USB Host is powered on, receiver is adapter free. -
Page 7: Edid Management
EDID Management EDID Management Please use the DIP Switch for EDID management: DIP Switch Position 1 Position 2 Position 3 EDID Copy (Default) DOWN DOWN 3840 x 2160P@30Hz 2CH DOWN Reserved 1920 x 1080P@60Hz 2CH DOWN 1920 x 1200@60Hz 2CH Note: If EDID copy fails, the device will use 1080p/2ch as input EDID. - Page 8 Dimensions (W x H x D) 210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’ Product Weight 0.46kg/1.01lbs Transmission Distance Note: AV Access recommends use of straight-through Category cables wired to T568B standard. Cable Type Range Supported Video...
-
Page 9: Warranty
2. The warranty has expired. 3. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
