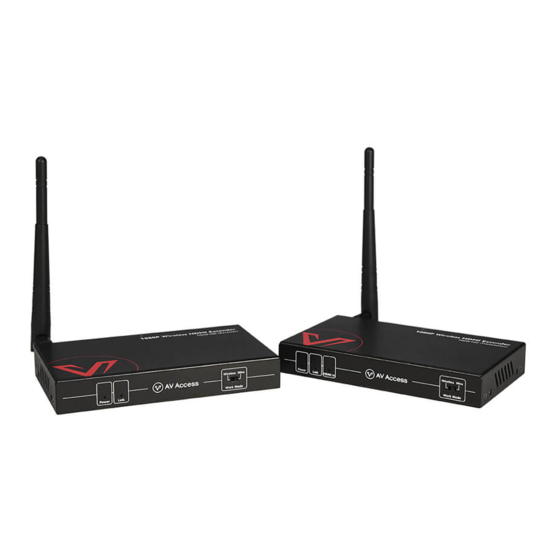

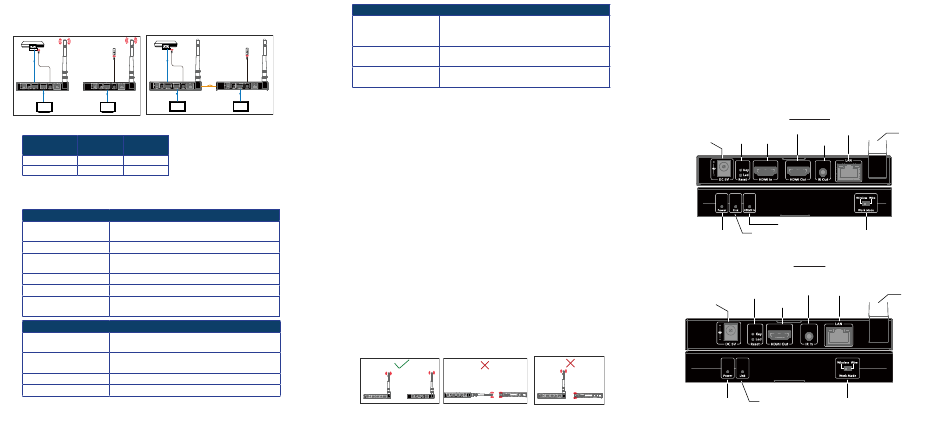

AV Access HDW100 Quick Start Manual

1. Application
(1) 1-1 Wireless Transmission (2) 1-1 Wired Transmission
DVD Player DVD Player
DVD Player Remote
IR Emitter IR Receiver IR Emitter
Transmitter
Transmitter Receiver
TV TV TV
Fig 1
Note:
"Work Mode"
Fig 1 Fig 2
Switch Settings
Transmitter Wireless Wire
Receiver Wireless Wire
2. Specifications
Technical
Input A/V Port Transmitter: 1 x HDMI
Receiver: 1 x LAN, 1 x WLAN
Input Resolutions Up to 1080P@60Hz
Output A/V Port Transmitter: 1 x HDMI, 1 x LAN, 1 x WLAN
Receiver: 1 x HDMI
Output Resolutions Up to 1080P@60Hz
Compliance HDMI 1.3, HDCP 1.4
Transmission Distance Wireless: 60m (197ft)
Wired: 120m (394ft)
General
Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Power Supply DC 5V 1A
Power Consumption TX: 3.5W (Max) RX: 1.6W (Max)
General
ESD Protection
DVD Player Remote
Product Dimension
(W x H x D)
IR Receiver
Net Weight
Receiver
3. Package Contents
TV
Fig 2 1 x Transmitter; 1 x Receiver; Others: 2 x Antennas; 2 x Power
Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter; 1 x
IR Receiver; 4 x Mounting Ears (with Screws)
4. FAQs
(1) What should I do when Link LED is on, but there's no video output
on the remote display?
• Check and ensure the Work Mode switches on both transmitter
and receiver(s) are set to the same positions (both at "Wireless"
or "Wire").
• Check and ensure the HDMI source is powered on, and the
transmitter's HDMI In LED is on.
• Connect the HDMI source device directly to the display to see if
there's signal output.
(2) How to deal with poor video quality?
• Check if the HDMI cables are connected properly. Use different
HDMI cables if necessary.
• Change the angles of the antennas on transmitter and receiver
to make the antennas parallel to each other (refer to Fig a).
Operation in Fig b&c is not recommended.
Transmitter
Human body model:
• ±8kV (air-gap discharge)
• ±4kV (contact discharge)
140mm x 21mm x 80mm/5.5'' x 0.83'' x 3.15"
each for TX and RX (Antennas not included)
Without antennas: TX: 0.3kg; RX: 0.29kg
With antennas: TX: 0.31kg; RX: 0.30kg
Transmitter Receiver Transmitter Receiver
Receiver
Fig (a) Fig (b)
Fig (c)
• Decrease the distance between the transmitter and receiver to
ensure it is within the available transmission range.
• Remove other wireless signals and move any obstacles that are
blocking the signal line-of-sight.
(3) Why the IR remote controller seems not sensitive enough?
Avoid to press and hold the IR remote controller's buttons. Try to
short press them intermittently instead.
5. Panel Layout
Transmitter
Reset Key
Power LAN
HDMI Out
&LED
Connector
HDMI In
IR Out
HDMI In LED
Power LED Link LED Switch for setting work
mode to "Wireless" or "Wire"
Receiver
Reset Key
IR In
Power LAN
&LED
Connector
HDMI Out
Power LED Link LED Switch for setting work
mode to "Wireless" or "Wire"
Antenna
Antenna
Version: V1.0.2
