- Page 1 1080P HDMI over IP Extender HDIP120 User Manual...

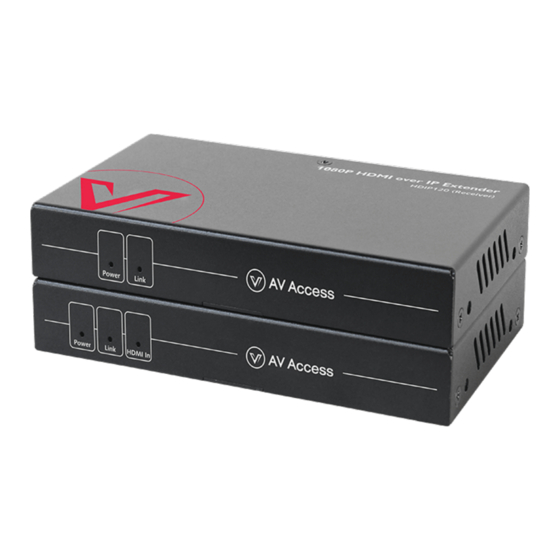

- Page 2 Introduction Introduction Overview The 1080P HDMI over IP Extender set can extend HDMI signals from a source device to one or multiple displays through a Cat 5a/6 cable up to 120 meters. It is ideal for home and offices. Features Transmits 1080P HDMI signals up to 120 meters through a Cat 5e/6 ...
- Page 3 Introduction Panel Transmitter Features and Ports 1. Power input port | 2. Reset Key and Led | 3. HDMI In port | 4. HDMI Out port | 5. IR Out port | 6. LAN port | 7. Power Led | 8. Link Led | 9. HDMI In Receiver Features and Ports a.
- Page 4 Installation and Application Installation and Application Bracket Installation Note: Before installation, please ensure the device is disconnected from the power source. Position and install the mounting brackets using the mounting screws provided. Repeat step 1 for the other side of the device.
- Page 5 Specifications (2) 1 - N DVD Player Network Switch Receiver 1 IR Receiver IR Emitter Transmitter Receiver (N) IR Receiver DVD Player Remote Note: One transmitter can be linked to N (N ≤ 10) receivers in the same LAN. Specifications Technical Input A/V Port Transmitter: 1 x HDMI;...
- Page 6 The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
