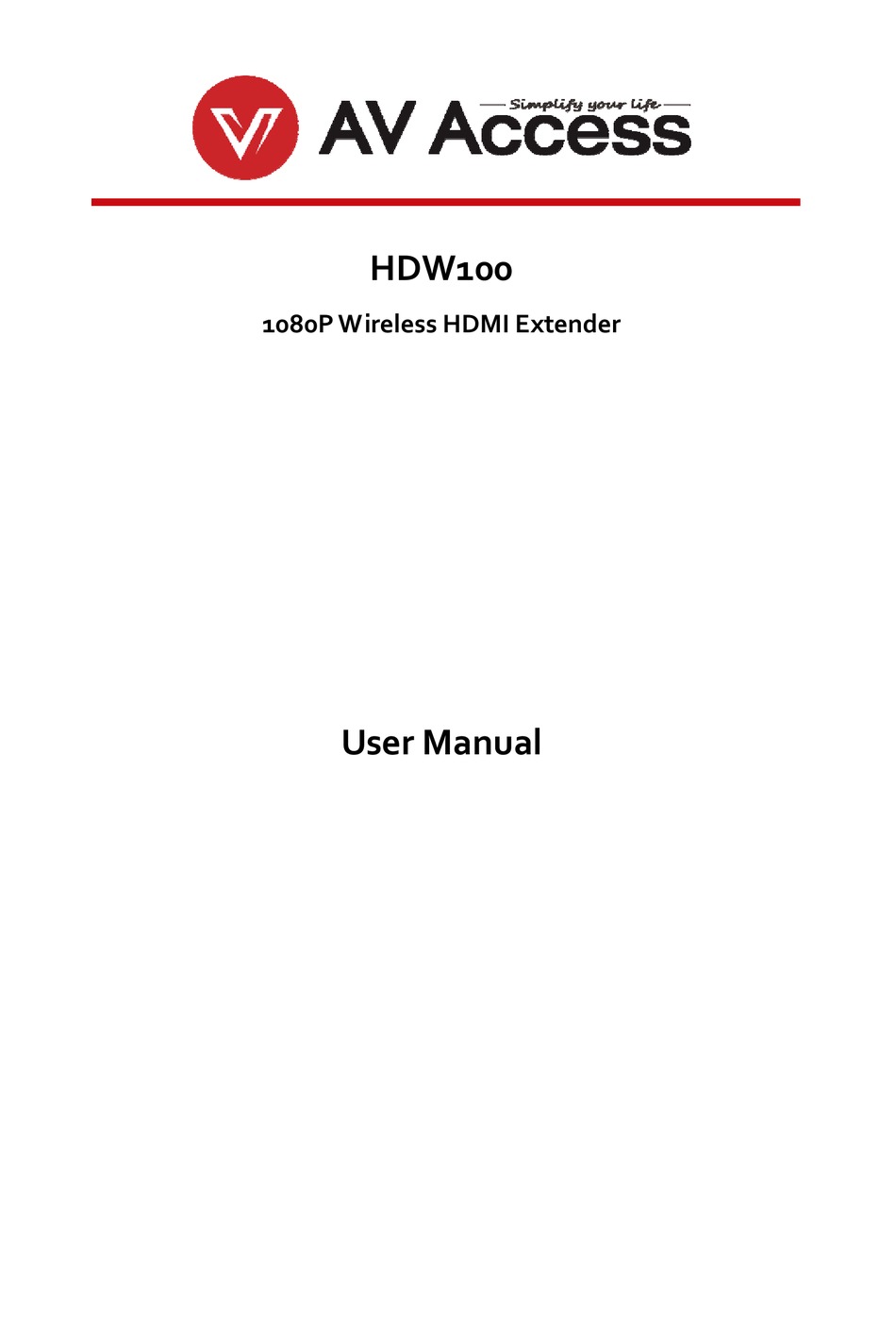

- Page 1 HDW100 1080P Wireless HDMI Extender User Manual ...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document. AV Access Technology Limited reserves the right to make improvements to this document and/or product at any time and without notice. Copyright Copy, Reproduce, Distribute and/or Edit of this document or part of it as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright ©2017 AV Access Technology Limited All rights reserved. Trademarks Notice All products or service names mentioned in this document may be trademarks of the companies with which they are associated. Contact Us Email: info@avaccess.com ...
- Page 3 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built‐in cabinet, or in another confined space. Ensure the unit is well ventilated. To prevent risk of electric shock or fire hazard due to overheating, do not obstruct the unit’s ventilation openings with newspapers, tablecloths, curtains, or similar items. Do not install near any heat sources such as radiators, heat registers, stoves, or other device (including amplifiers) that produce heat. Do not place sources of naked flames, such as lighted candles, on the unit. Clean this device only with dry cloth. Unplug this device during lightning storms or when unused for long periods of time. Protect the power cord from being walked on or pinched, particularly at plugs. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel.
-
Page 4: Table Of Contents
Table of Contents Introduction .................... 2 Overview ...................... 2 Features ...................... 2 Package Contents ................... 2 Application .................... 3 Panel Layout .................... 4 Installation .................... 5 Specifications .................... 6 FAQs ...................... 7 Warranty ..................... 9 FCC Statement ..................... 9 IC Statement .................... 10 Distance Statement .................. 11 www.avaccess.com 1 info@avaccess.com ... -
Page 5: Introduction

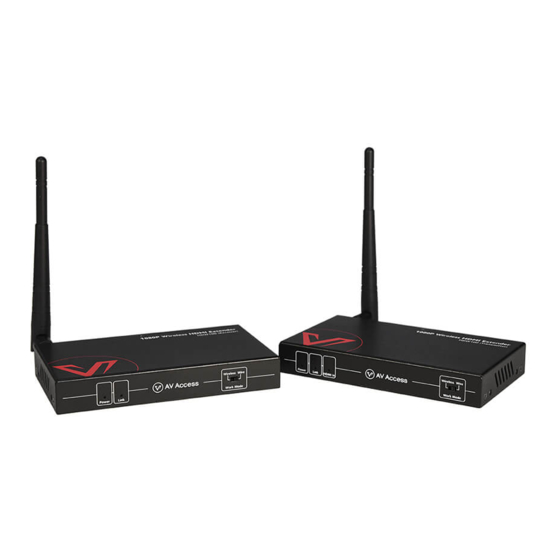

Introduction Introduction Overview The 1080P wireless HDMI extender set extends HDMI signals from a source device to a display device wirelessly up to 200 meters or through a Cat 5e/6 cable up to 120 meters. Great for homes and offices. Features Transmits 1080P HDMI signals up to 200 meters wirelessly. Transmits 1080P HDMI signals up to 120 meters through a Cat 5e/6 cable. HDMI loop‐out on the transmitter to connect to a local display, allows easy monitoring of the source signal. IR extension allows you to control the source device from a remote location. Package Contents Before you start the installation of the product, please check the package contents: 1 x Transmitter; 1 x Receiver; Others: 2 x Antennas; 2 x Power Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter; 1 x IR Receiver; 4 x Mounting Ears (with Screws); 1 x User Manual www.avaccess.com 2 info@avaccess.com ... -
Page 6: Application
Introduction Application (1) 1‐1 Wireless Transmission (2) 1‐1 Wired Transmission www.avaccess.com 3 info@avaccess.com ... -
Page 7: Panel Layout
Panel Layout Note: "Work Mode" Fig 1 Fig 2 Switch Settings Transmitter Wireless Wire Receiver Wireless Wire Panel Layout Transmitter Receiver www.avaccess.com 4 info@avaccess.com ... -
Page 8: Installation
Installation Installation The device can be placed on a stable surface. To install the device to a suitable location, perform the following: Position and install the mounting brackets using the mounting screws provided. Repeat above step for the other side of the device. Attach the brackets to the surface you want to hold the device against using the screws (not included). www.avaccess.com 5 info@avaccess.com ... -
Page 9: Specifications
Installation Specifications Technical Transmitter: 1 x HDMI Input A/V Port Receiver: 1 x LAN, 1 x WLAN Input Resolutions Up to 1080P@60Hz Transmitter: 1 x HDMI, 1 x LAN, 1 x WLAN Output A/V Port Receiver: 1 x HDMI Output Resolutions Up to 1080P@60Hz Compliance HDMI 1.3, HDCP 1.4 Transmission Wireless: 200m/656ft (line of sight) Distance Wired: 120m/394ft General Operating +32°F ~ +113°F (0°C ~ +45°C) Temperature 10% ~ 90%, non‐condensing ‐4°F ~ 140°F (‐20°C ~ +70°C) Storage Temperature 10% ~ 90%, non‐condensing Power Supply DC 5V 1A Power Consumption TX: 3.5W (Max) RX: 1.6W (Max) Human body model: ESD Protection ±8kV (air‐gap discharge) • • ±4kV (contact discharge) ... -
Page 10: Faqs
FAQs FAQs What should I do when Link LED is on, but there's no video output on the remote display? • Check and ensure the Work Mode switches on both transmitter and receiver(s) are set to the same positions (both at "Wireless" or "Wire"). • Check and ensure the HDMI source is powered on, and the transmitter's HDMI In LED is on. ... - Page 11 FAQs Decrease the distance between the transmitter and receiver to e nsure • it is within the available transmission range. Remove other wireless signals and move any obstacles that are • blocking the signal line‐of‐sight. Why does the IR remote controller seem not sensitive enough? Avoid to press and hold the IR remote controller's buttons. Try to short press them intermittently instead.
-
Page 12: Warranty
FCC Statement Warranty Products are backed by a limited 1‐year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by AV Access Technology Limited) labeled on the product has been removed, erased, replaced, defaced or is illegible. The warranty has expired. ... -
Page 13: Ic Statement
IC Statement installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment ... -
Page 14: Distance Statement
Distance Statement may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: ( 1 ) L ’ a p p a r e i l n e d o i t p a s p r o d u i r e d e b r o u i l l a g e ; ( 2 ) L ’... - Page 15 AV Access Technology Limited V1.0.0 ...
