  • Page 1 4KIP100-KVM 4K IP based KVM Extender User Manual...
  • Page 2 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No  objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...

  • Page 4: Table Of Contents

    Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................2 Panel ............................3 Using DIP Switch to Perform Routing ..............6 Installation and Application................. 7 Brackets Installation ......................7 Steps to install the device in a suitable location ..........7 Typical Application ........................

  • Page 5: Introduction

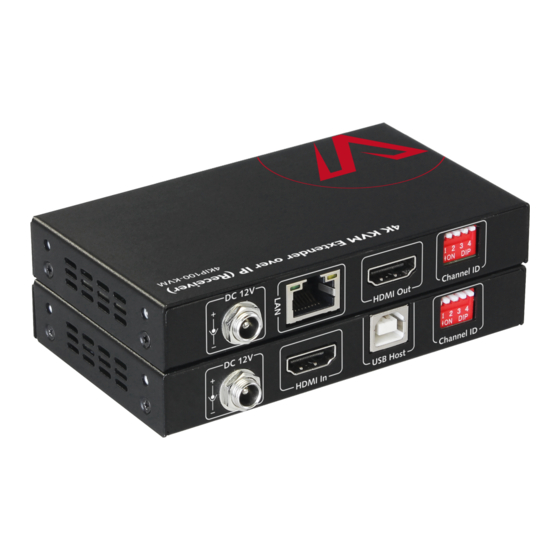

    Introduction Introduction Overview 4KIP100-KVM is a 4K IP based KVM Extender. It could extend 4K video (with zero latency) and USB 2.0 signals over long distances, and it is a plug & play product. Features IP based, 1 Gigabit network support 4K video ...

  • Page 6: Panel

    Introduction Panel Encoder Front Panel Name Description Connect to a decoder or an Ethernet Switch for streaming media output. On: The encoder is paired with the decoder Link LED successfully. On: The device is powered on. Power LED Off: The device is powered off. Rear Panel DC 12V Connect to the DC 12V 1A power adapter provided.
  • Page 7 Introduction laptop. The encoder is USB 2.0 compliant. This DIP switch consists of four manual switches, which are used to route the encoder to decoder based on their positions. For more information, see “Using DIP Switch to Perform Routing”. Note: Channel ID •...
  • Page 8 Introduction Rear Panel DC 12V Connect to the DC 12V 1A power adapter provided. Connect to an encoder or an Ethernet Switch for streaming media input. HDMI Out Connect to display such as TV. This DIP switch consists of four manual switches, which are used to route the encoder to decoder based on their positions.

  • Page 9: Using Dip Switch To Perform Routing

    Using DIP Switch to Perform Routing Using DIP Switch to Perform Routing To route the signal from an encoder to a decoder, toggle each individual switches of the DIP Switch in decoder to the same positions as these in encoder. If you want to link the decoder to a different encoder, change the decoder switch settings in the same way as how the encoder’s switch is positioned.

  • Page 10: Installation And Application

    Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure 4KIP100-KVM is disconnected from the power source. Steps to install the device in a suitable location Attach the installation bracket to the enclosure using the screws that were provided in the package separately.

  • Page 11: Typical Application

    Typical Application Application 1 - Connect directly 4KIP100-KVM could be connected directly with a Cat 5e or above cable. As a normal extender set, it extends the HDMI and USB signals over a long distance up to 120m/395ft. Application 2 - Connect through Ethernet Switch 4KIP100-KVM could be connected through one or more network switches.
  • Page 12 Installation and Application www.avaccess.com services@avaccess.com...

  • Page 13: Specification

    Specification Specification Encoder Technical 1 x HDMI IN (19-pin female HDMI Type-A) 1 x USB HOST (female USB Type-B) Input/Output 1 x 4-Pin DIP Switch 1 x DC 12V connector with locking 1 x LAN (RJ45) Input Signal Type HDMI 1.4b 640x480 , 800x600 8,10...
  • Page 14 Specification General 0 to + 45°C (32 to + 113 °F), 10% to 90%, Operating Temperature non-condensing -20 to +70°C (-4 to +158 °F), 10% to 90%, Storage Temperature non-condensing Human Body Model: ESD Protection ±8kV (air-gap discharge)/ ±4kV (contact discharge) Power Supply DC 12V 1A Power Consumption...
  • Page 15 Specification 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = at 100 Hz, 10 = at 120 Hz PCM 2.0 / 2.1 / 5.1 / 7.1, Dolby Digital 5.1 ch, Dolby Output Audio Format Digital Plus, Dolby TrueHD, DTS 5.1 ch, DTS-HD...

  • Page 16: Trouble Shooting

    Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure the source, display and 4KIP100-KVM are powered Indicator: Please make sure all LED indicators of 4KIP100-KVM are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display device directly.

  • Page 17: Warranty

    The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
  • Page 18 AV Access Technology Limited V1.0.1...
