- Page 1 4K IP based KVM Extender 4KIP100-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ........................... 2 Features ............................. 2 Package Contents ........................2 Panel ............................2 Using DIP Switch to Perform Routing ..............5 Installation and Application................. 5 Brackets Installation ......................5 Application ..........................6 Specification ......................7 Warranty ....................... -
Page 3: Introduction

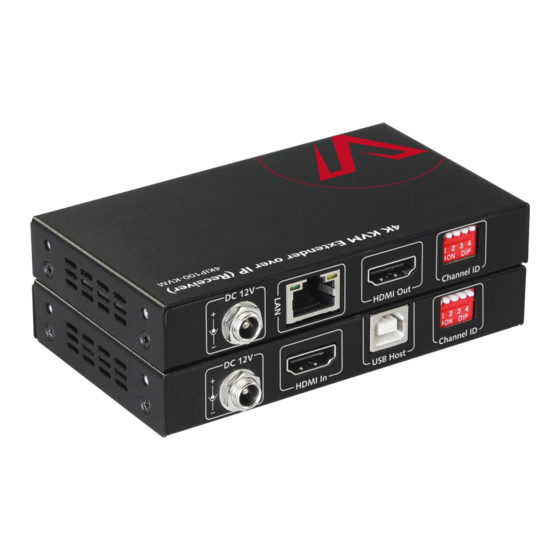

Introduction Introduction Overview This product is a 4K IP based KVM Extender. It could extend 4K video (with zero latency) and USB 2.0 signals over long distances, and it is a plug & play product. Features IP based, 1 Gigabit network support 4K video. ... - Page 4 Introduction Name Description Connect to a receiver or an Ethernet Switch for streaming media output. On: The transmitter is paired with the receiver Link LED successfully. On: The device is powered on. Power LED Off: The device is powered off. Rear Panel Name Description...
- Page 5 Introduction Receiver Front Panel Name Description Connect to USB devices, e.g., keyboard, mouse and Udisk. Device On: The receiver is paired with the transmitter Link LED successfully. On: The device is powered on. Power Off: The device is powered off. Rear Panel Name Description...
-
Page 6: Using Dip Switch To Perform Routing
Installation and Application Brackets Installation Note: Before installation, please ensure 4KIP100-KVM is disconnected from the power source. Attach the installation bracket to the enclosure using the screws that were provided in the package separately. The bracket height can be adjusted up/down or bracket face up or down. -
Page 7: Application
Installation and Application Application Application 1 - Connect directly 4KIP100-KVM could be connected directly with a Cat 5e or above cable. As a normal extender set, it extends the HDMI and USB signals over a long distance up to 120m/395ft. -
Page 8: Specification
Specification Udisk Udisk HDMI Receiver 1 Transmitter 1 Ethernet Switch USB Camera HDMI Transmitter 2 Receiver 2 Udisk Udisk HDMI Transmitter 16 Receiver 16 Specification Transmitter Technical 1 x HDMI IN (19-pin female HDMI Type-A), 1 x USB Input/Output HOST (female USB Type-B), 1 x 4-Pin DIP Switch, 1 x DC 12V connector with locking, 1 x LAN (RJ45) Input Signal Type HDMI 1.4b... - Page 9 Specification Technical Transmission Cat 5e or above: 120m/395ft Distance HDMI: 15m/49ft General Operating Temperature 0 to + 45°C (32 to + 113 °F) Storage Temperature -20 to +70°C (-4 to +158 °F), Humidity 10% to 90%, non-condensing Human Body Model: ESD Protection ±8kV (air-gap discharge)/ ±4kV (contact discharge)
-
Page 10: Warranty
Warranty Products are backed by a limited 1-year parts and labor warranty. For the following cases AV Access Technology Limited shall charge for the service(s) claimed for the product if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
