- Page 1 4K HDBT DP KVM Extender with USB 2.0 4KEX100-DP-KVM User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................2 Panel .............................. 3 Front Panel ......................... 3 Rear Panel ........................... 3 Installation and Application................... 4 Brackets Installation ......................... 4 Application ..........................5 Specification ......................6 Warranty ......................... -
Page 3: Introduction

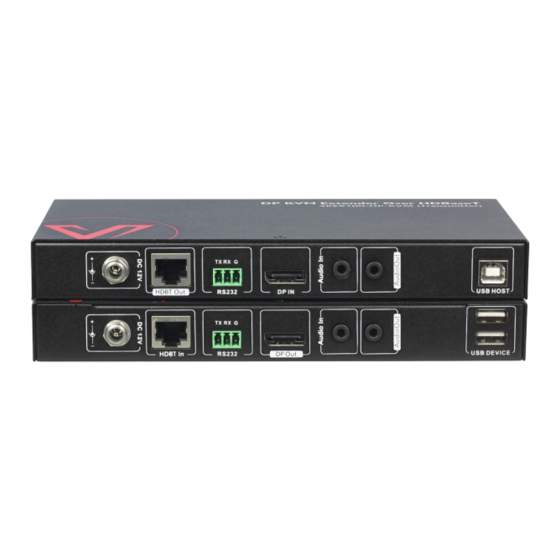

Introduction Introduction Overview This product is a 100m 4K DisplayPort over HDBT extender with USB 2.0 and audio pass-through. It offers the distribution of uncompressed 4K@30Hz UHD video, audio, power, RS232 and USB 2.0 together up to 100m/330ft over a single Cat X cable. With USB 2.0 pass-through, it allows users to control or monitor a remote server from a harsh environment, or operate a physically inaccessible PC, server or workstation remotely. -
Page 4: Panel
Introduction Panel Front Panel Transmitter/Receiver Name Description On: The device is powered on. Power LED Off: The device is powered off. Blinking: The device is working properly. Status LED Off: The device is not working properly. On: HDCP protected content is being transmitted. Blinking: Non-HDCP protected content is being HDCP LED transmitted. -
Page 5: Installation And Application
Installation and Application Receiver Name Description Connect to the DC 12V power adapter provided. Note: Only one power adapter is needed at DC 12V transmitter side. HDBT In Connect to the transmitter via a Cat X cable. RS232 RS232 pass-through. DP Out Connect to a DisplayPort display. -
Page 6: Application
Installation and Application Application PC Serve r Powe r Adapte r Connect to the power adapter provided. Connect to an Connect to the Connect to a USB Host PC. audio source. DP source. Transmitte r Use Cat5e/6/6a/7 to connect the transmitter and receive r. Receive r Connect to Connect to a... -
Page 7: Specification
200 mm × 25 mm ×100 mm (W x H x D) 7.91'' x 0.99'' x 3.95'' Transmitter: 0.5kg/1.10lb Product Weight Receiver: 0.5kg/1.10lb Transmission Distance Note: AV Access recommends the use of T568B straight-through Category cables. Cable Type Range Supported Video 100m/328ft 1080p@60Hz 36bpp... -
Page 8: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 9 注意事项 不得打开、拆解或修理本产品。 不要在炎热、寒冷、尘土飞扬或潮湿的环境下使用；请用干布擦拭该设备。 尽可能地避免抛掷，严重的抛掷力可能会造成机械损坏、故障或划伤表面。 有害物质声明 根据中国《电子信息产品污染控制管理办法》 有害物质 邻苯二甲酸 邻苯二 六价 多溴联 邻苯二甲 邻苯二甲 二 (2-乙基 部件 铅 汞 镉 多溴二苯 甲酸甲 铬 (Cr 苯 酸二异丁 酸二丁基 (Pb) (Hg) (Cd) 醚 (PBDE) 名称 己基) 酯 苯基丁 (PBB) 酯 (DIBP) 酯 (DBP) (DEHP) 酯...
