AV Access HDW200 Quick Start Manual

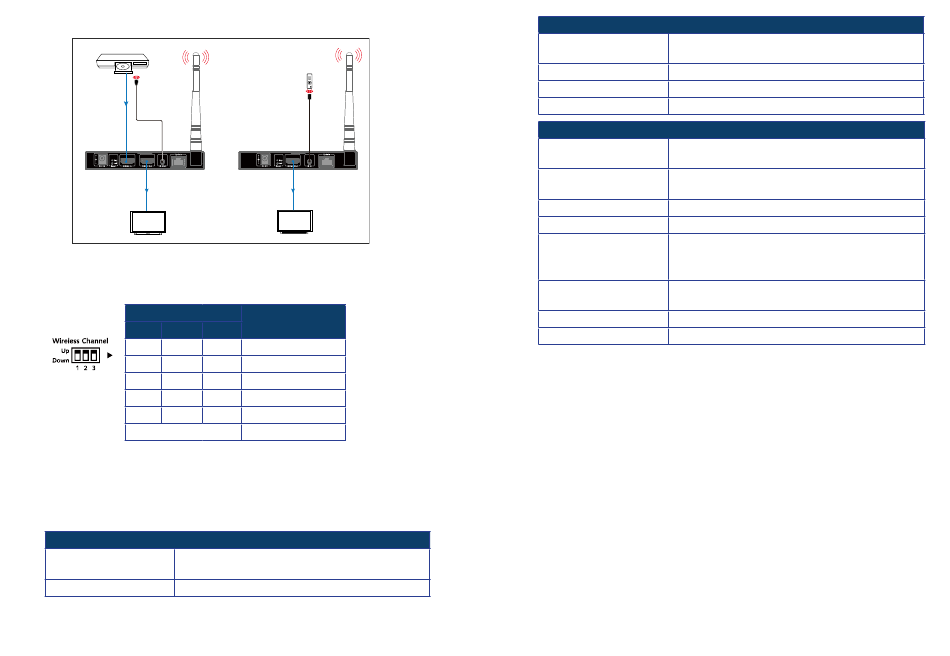

1. Application
DVD Player
IR Emitter
Transmitter
TV
Note:
(1) Ensure the Wireless Channel -- DIP switches of transmitter and
receiver are set to the same positions.
DIP Position
1 2 3
Up Up Up
Up Up Down 2
Up Down Up
Up Down Down 4
Down Up Up
Others
(2) Up to five sets of HDW200 transmitter and receiver can be
deployed in the same zone.
2. Specifications
Technical
Input A/V Port Transmitter: 1 x HDMI
Receiver: 1 x WLAN
Input Resolutions Up to 1080P@60Hz
www.avaccess.com
DVD Player Remote
IR Receiver
Receiver
TV
Channel Number
1
3
5
Reserved
info@avaccess.com
Technical
Output A/V Port Transmitter: 1 x HDMI, 1 x WLAN
Receiver: 1 x HDMI
Output Resolutions Up to 1080P@60Hz
Compliance HDMI 1.3, HDCP 1.4
Transmission Distance 200m/656ft (line of sight)
General
Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Power Supply DC 5V 1A
Power Consumption TX: 3.5W (Max) RX: 1.6W (Max)
ESD Protection Human body model:
• ±8kV (air-gap discharge)
• ±4kV (contact discharge)
Product Dimension 140mm x 21mm x 80mm/5.5'' x 0.83'' x 3.15"
(W x H x D) each for TX and RX (Antennas not included)
Net Weight TX: 0.31kg; RX: 0.30kg
Gross Weight 1.10kg
3. Package Contents
1 x Transmitter; 1 x Receiver; Others: 2 x Antennas; 2 x Power
Adapters (DC 5V 1A); 2 x Exchangeable US Plugs; 1 x IR Emitter;
1 x Broadband IR Receiver (30-50KHz); 4 x Mounting Ears (with
Screws); 1 x Quick Start Guide
4. FAQs
(1) What should I do when Link LED is on, but there's no video output
on the remote display?
• Check and ensure the DIP switches on both transmitter and
receiver(s) are set to the same positions.
• Check and ensure the HDMI source is powered on, and the
transmitter's HDMI In LED is on.
• Connect the HDMI source device directly to the display to see if
there's signal output.
www.avaccess.com info@avaccess.com
