Page 1: User Manual
User Manual RTA1046VW...
Page 2 Wireless IAD User Manual © 2005 All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. Information in this document is subject to change without notice.
Page 3 For Installation Use only the type of power source indicated on the marking labels. Use only power adapter supplied with the product. Do not overload wall outlet or extension cords as this may increase the risk of electric shock or fire. If the power cord is frayed, replace it with a new one.
Page 4 Wireless IAD User Manual This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules.
Page 5: Table Of Contents
Contents Before You Use ... ix Unpacking ... ix Features ... ix ADSL Compliance ... ix ADSL2 Compliance ... x ADSL2+ Compliance ... x Wireless LAN Compliance ... x Voice over IP Features ... xi ATM Features ... xi Bridging Features ...xii Routing Features...xii Security Features ...xii Configuration and Management ...xii...
Page 6 Wireless IAD User Manual Numbered IP over ATM (IPoA)... 54 Numbered IP over ATM (IPoA)+NAT ... 56 Unnumbered IP over ATM (IPoA)... 58 Unnumbered IP over ATM (IPoA)+NAT ... 60 Bridge Mode ... 62 MER... 63 Chapter 4: Web Configuration ... 65 Using Web-Based Manager ...
Page 7 SIP ... 118 SIP Basic ... 118 SIP Extension... 120 Audio Codec ... 121 PSTN Control ... 122 Call Log... 126 Example for Call Features ... 127 Management ... 129 Diagnostics... 129 Management Accounts... 130 Management Control – From Remote ... 130 Management Control –...
Page 8 Wireless IAD User Manual viii...
Page 9: Before You Use
Before You Use Thank you for choosing the Wireless IAD. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL allows you to have both voice and data services in use simultaneously all over one phone line. RTA1046VW Wireless IAD is a DSL broadband access device which allows ADSL connectivity while providing 802.11g wireless LAN interface and voice over IP function for home or office users.
Page 10: Adsl2 Compliance
Wireless IAD User Manual ADSL2 Compliance ITU G.992.3 Annex A (G.dmt.bis) Maximum Rate: 12 Mbps for downstream and 1 Mbps for upstream ADSL2+ Compliance ITU G.992.5 Annex A Maximum Rate: 24 Mbps for downstream and 1.2 Mbps for upstream Wireless LAN Compliance IEEE 802.11g and IEEE 802.11b Data Rate: 54, 48, 36, 24, 18, 12, 9, 6 Mbps for 802.11g;...
Page 11: Voice Over Ip Features
64-bit or 128-bit key length Support 802.1x and WPA/WPA2 Support the Access Control function: only registered WLAN clients are allowed to associate to this device. SSID can be hidden for the security issue (Don’t broadcast SSID). Two SSIDs are supported currently. One SSID can be used for main wireless network and the other SSID can be used for guest wireless network.
Page 12: Bridging Features
Wireless IAD User Manual Support PPPoA or PPPoE Bridged mode (the IP address got from ISP can be passed to the user’s PC and behave as the IP address of the user’s PC.) OAM F4/F5 End-to-End/Segment Loopback Cells Bridging Features Supports self-learning bridge specified in IEEE 802.1d Transparent Bridging Supports up to 4096 learning MAC addresses Transparent Bridging among 10/100 Mb Ethernet, USB, and 802.11g wireless...
Page 13: Subscription For Adsl Service
Remote management accesses control Telnet/SSH session for local or remote management Firmware upgrades through HTTP, TFTP, or FTP The boot loader contains very simple web page to allow the users to update the run-time firmware image. Configuration file backup and restore SNMPv1/v2 agent with MIB-II, ADSL Line MIB Subscription for ADSL Service To use the IAD, you have to subscribe for ADSL service from your broadband...
Page 15: Chapter 1: Overview
Chapter 1: Overview This chapter provides you the description for the LEDs and connectors on the front and rear surface of the IAD. Before you use/install this wireless IAD, please take a look at the information first. Physical Outlook Front Panel The following illustration displays the front panel of the Wireless IAD: LED Indicators The Wireless IAD is equipped with several LEDs on the front panel as described in...
Page 16: Rear Panel
Wireless IAD User Manual Rear Panel The following figure illustrates the rear panel of your Wireless IAD: Connector Phone PSTN Ethernet 1 - 4 12VAC Description Phone set connector PSTN connector RJ-11 connector Ethernet 10/100 Base-T auto-sensing USB client port Power Switch Power connector Note: For use only with power supply OEM type AA-121A5BN,...
Page 17: Chapter 2: System Requirement And Installation
Chapter 2: System Requirement and Installation Chapter 2: System Requirement and Installation System Requirement To access the Wireless IAD via Ethernet, the host computer must meet the following requirements: Equipped with an Ethernet network interface. Have TCP/IP installed. Allow the client PC to obtain an IP address automatically or set a fixed IP address.
Page 18: Connecting The Wireless Iad
Wireless IAD User Manual Connecting the Wireless IAD Follow the steps below to connect the related devices. Connecting the ADSL line: connect the DSL port of the device to your ADSL wall outlet with RJ-11 cable. Please attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your Wireless IAD.
Page 19: Usb Driver Installation
Chapter 2: System Requirement and Installation USB Driver Installation If the Wireless IAD is connected to a PC through the USB interface, you will be prompted for the USB drivers when plugging the USB cable to the PC. Refer to the relevant operating system to install the USB drivers.
Page 20 Wireless IAD User Manual When the complete window of the InstallShield Wizard appears, click Finish. Link your IAD and the PC with a USB cable. The system will detect the USB driver automatically. will copy the proper files for this IAD. Note: If the USB device is not detected automatically, check the USB cable between the PC and the device.
Page 21: For Windows Xp
Chapter 2: System Requirement and Installation 2. On the Hardware tap, click Device Manager. 3. Confirm that the Askey ADSL Router USB Remote NDIS Device is on the Network adapters list. For Windows XP Run the USB installation program from the CD provided in your IAD package.
Page 22 Wireless IAD User Manual When the welcome screen appears, click Next for the next step. When the complete message of InstallShield Wizard appears, click Finish. Link your IAD and the PC with a USB cable. The system will detect the USB driver automatically. Note: If the USB device is not detected, check the USB cable between the PC and the device.
Page 23 Chapter 2: System Requirement and Installation After the file copying finished, a completing message will appear. You can use the wireless IAD now. To make sure your IAD is properly installed, please do the following steps. 1. Right-click on My Computer and press Properties. 2.
Page 24 Wireless IAD User Manual 3. Confirm that the Askey ADSL Router USB Remote NDIS Device is on the Network adapters list.
Page 25: For Windows Vista
Chapter 2: System Requirement and Installation For Windows Vista For Vista users, please press Continue whenever a prompted window asking for permission to continue during USB driver installation process (see the figure below for example). To install the USB driver before connect the router to the PC, here provides two methods.
Page 26 Wireless IAD User Manual When the complete message of InstallShield Wizard appears, click Finish. Link your router and the PC with a USB cable. The system will detect the USB driver automatically. Note: If the USB device is not detected, check the USB cable between the PC and the device.
Page 27 Chapter 2: System Requirement and Installation Method Two – Run a silent installation. Copy the USB driver folder from the driver CD to somewhere on the PC. (In our example, the driver files are put under D:\Askey ADSL USB WHQLed.) Open Start menu, key in cmd in the blank and press enter.
Page 28 Wireless IAD User Manual If the USB driver has not been installed yet, you can also connect the router to the PC with a USB cable and wait for Universal Plug and Play device to detect the router, and then install the driver. Plug the USB cable into the USB port on the PC.
Page 29 Chapter 2: System Requirement and Installation Or if you do not have a disc, but have the driver files on your PC, you can follow the steps below: Press I don’t have the disc. Show me other options. Select Browse my computer for driver software (advanced). Press Browse to set the path for the driver file, and then press Next.
Page 30 Wireless IAD User Manual Wait while the system installing the driver. Now the driver software is installed successfully. Press Close to start using the router. To make sure the USB driver for your router is properly installed, please do the following steps.
Page 31 Chapter 2: System Requirement and Installation 2. On the Control Panel folder, click System and Maintenance. 3. Press System. 4. Click Device Manager.
Page 32 Wireless IAD User Manual 5. Confirm that the Askey ADSL Router USB Remote NDIS Device is on the Network adapters list.
Page 33: Uninstalling The Usb Driver
Chapter 2: System Requirement and Installation Uninstalling the USB Driver For Windows ME To uninstall the USB driver, please follow the procedures below. Method One: Unplug the USB cable from the USB port on your PC. Choose Programs – Askey Broadband – Uninstall Askey ADSL Router USB Driver from the Start menu.
Page 34 Wireless IAD User Manual The Router is safely removed, click OK to continue. Choose Programs – Askey Broadband – Uninstall Askey ADSL Router USB Driver from the Start menu. The InstallShield Wizard dialog will appear. A dialog appears to confirm whether you want to remove the USB driver or not.
Page 35 Chapter 2: System Requirement and Installation Method Two: To safely unplug the USB cable from the USB port on your PC: Go to the right lower corner for Unplug and Eject Hardware and left click on it. Click the dialog for Stop Askey ADSL Router USB Remote NDIS Device.
Page 36: For Windows Xp
Wireless IAD User Manual A Confirm Uninstall dialog will show up, unplug your device from the USB port and click OK. The InstallShield Wizard will guide you till the USB driver is removed. When the Maintenance Complete screen appears, the USB driver is removed successfully.
Page 37 Chapter 2: System Requirement and Installation Choose Programs – Askey Broadband – Uninstall Askey ADSL Router USB Driver from the Start menu. The InstallShield Wizard dialog will appear. A dialog appears to confirm whether you want to remove the USB driver or not.
Page 38 Wireless IAD User Manual A dialog appears to ask you to choose the program that you want to remove. Please select Askey ADSL Router USB Driver and click Change/Remove. The InstallShield Wizard dialog will appear. A dialog appears to confirm whether you want to remove the USB driver or not.
Page 39: For Windows Vista
Chapter 2: System Requirement and Installation For Windows Vista For Vista users, please press Continue whenever a prompted window asking for permission to continue during USB driver uninstallation process (see the figure below for example). To uninstall the USB driver, there are two ways to do it. Please follow the instructions.
Page 40 Wireless IAD User Manual Press System. Click Device Manager. Right click Askey ADSL Router USB Remote NDIS Device on the Network adapters list, and press Uninstall.
Page 41 Chapter 2: System Requirement and Installation Click OK when the Confirm Uninstall window appears. Remember to unplug the USB cable before continue the uninstallation, or you will see the reminder as follows. Unplug and press OK. When the Confirm Device Uninstall screen show up, check Delete the driver software for the device and click OK to continue.
Page 42 Wireless IAD User Manual Method Two – uninstall from program list Note: If your USB driver is installed by UPnP device, you can only use method one (via the Device Manager) to uninstall, because the installed driver will not be shown on the program list.
Page 43 Chapter 2: System Requirement and Installation When Maintenance Complete window shows up, click Finish to exit. The USB driver is successfully removed now.
Page 44: Setting Up Tcp/Ip
Wireless IAD User Manual Setting up TCP/IP If the TCP/IP protocol has not been installed yet, please follow the steps below for installation. In the following illustrations, we will set the PC to get an IP address automatically at the same time. For Windows 98 Open the Start menu, point to Settings and...
Page 45 Chapter 2: System Requirement and Installation The Network window appears. On the Configuration tab, check out the list of installed network components. Option 1: If there is no TCP/IP protocol, click Add. Option 2: If you have TCP/IP protocol, skip to Step 6. Your network interface card.
Page 46 Wireless IAD User Manual On the IP Address tab: Enable Obtain an IP address automatically and click OK. When returning to the Network window, click OK Wait for Windows when copying files. 10. When prompted with System Settings Change dialog box, click Yes to restart your computer.
Page 47: For Windows Me
Chapter 2: System Requirement and Installation For Windows ME 1. Open the Start menu, point to Settings and click on Control Panel. 2. Double-click the Network icon. 3. The Network window appears. On the Configuration tab, check out the list of installed network components.
Page 48 Wireless IAD User Manual 5. Highlight Microsoft on the left side of the windows, and select TCP/IP on the right side. Then click OK. 6. While returning to Network window, highlight TCP/IP protocol for your NIC and click Properties. 7. On IP Address tab: Enable Obtain an IP address automatically and click OK.
Page 49: For Windows Nt
Chapter 2: System Requirement and Installation 8. While returning to the Network window, click OK. 9. Wait for Windows when copying files. 10. When prompted with the System Settings Change dialog box, click Yes to restart your computer. For Windows NT 1.
Page 50 Wireless IAD User Manual 3. The Network window appears. On the Protocols tab, check out the list of installed network components. Option 1: If there is no TCP/IP Protocol, click Add. Option 2: If you have TCP/IP Protocol installed, skip to Step 7. 4.
Page 51 Chapter 2: System Requirement and Installation 6. When returning to the Network window. Open the Protocols tab, then select TCP/IP Protocol and click Properties. Enable Obtain an IP address from a DHCP server and click When prompted with the message below, click Yes to continue.
Page 52: For Windows 2000
Wireless IAD User Manual When returning to Network window, click Close. 10. When prompted with Network Settings Change dialog box, click Yes to restart your computer. For Windows 2000 From the Start menu, point to Settings and then click Network and Dial-up Connections.
Page 53 Chapter 2: System Requirement and Installation Right-click the Local Area Connection icon and then click Properties. On the General tab, check out the list of installed network components. Option 1: If there is no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, skip to Step 6.
Page 54 Wireless IAD User Manual Click Internet Protocol (TCP/IP) and then click OK. When returning to the Local Area Connection Properties window, highlight Internet Protocol (TCP/IP) and then click Properties. Under the General tab, enable Obtain an IP address automatically. Then click OK.
Page 55: For Windows Xp
Chapter 2: System Requirement and Installation For Windows XP Open the Start menu, point to Control Panel and click it. Double click the Network Connection. Right click Local Area Connection and then click Properties.
Page 56 Wireless IAD User Manual On the General tab, check out the list of installed network components. Option 1: If there is no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, skip to Step 7. If there is no TCP/IP protocol installed on your PC, press Install to continue.
Page 57 Chapter 2: System Requirement and Installation When it returns to the General Tab on the Local Area Connection Properties window, highlight Internet Protocol (TCP/IP) and then click Properties. Under the General tab, select Obtain an IP address automatically, and Obtain DNS server address automatically.
Page 58: For Windows Vista
Wireless IAD User Manual For Windows Vista Open the Start menu, point to Control Panel and click it. Click Network and Internet. Select Network and Sharing Center.
Page 59 Chapter 2: System Requirement and Installation Click Manage Network Connection on the left side. Right click Local Area Connection and select Properties. On the Networking tab, you will find Internet Protocol Version 6 and Version 4. Contact your ISP to confirm which one will be used.
Page 60 Wireless IAD User Manual Under the General tab, select Obtain an IP address automatically, and Obtain DNS server address automatically. Then click Ok to exit.
Page 61: Renewing Ip Address On Client Pc
Chapter 2: System Requirement and Installation Renewing IP Address on Client PC After the Wireless IAD gets on line, there is a chance that your PC does not renew its IP address and thus causes the PC not able to access the Internet. To solve this problem, please follow the procedures below to renew PC’s IP address.
Page 62 Wireless IAD User Manual 2. Type cmd in the text box that appears and click OK. Then you will see the command prompt window. Another way to open the command prompt: From Start menu, point to Programs, select Accessories, and then click Command Prompt. 3.
Page 63: For Windows Vista
Chapter 2: System Requirement and Installation For Windows Vista 1. Open the Start menu, and type cmd in the text box then click OK. 2. The command prompt window will appear. 3. Type ipconfig at the command window and press Enter to view the computer’s IP information from DHCP server.
Page 64 Wireless IAD User Manual Note: If you cannot release the IP address successfully and see the message “The requested operation requires elevation,” please go to the Start menu and right click Command Prompt, then set Run as administrator. Press Continue when a dialog asking for permission to continue prompts.
Page 65: Chapter 3: Accessing The Internet
Chapter 3: Accessing the Internet This chapter aims to help you access the Internet in a quick and convenient way. If you need more detailed information for web configuration, please refer to the next chapter for the advanced configuration. Before configuring the Wireless IAD, you must decide whether to configure the Wireless IAD as a bridge or as a router.
Page 66: Ppp Over Atm (Pppoa) Mode
Wireless IAD User Manual PPP over ATM (PPPoA) Mode Description: In this deployment environment, the PPPoA session is between the ADSL WAN interface and BRAS. The Wireless IAD gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN.
Page 67: Ppp Over Ethernet (Pppoe) Mode
PPP over Ethernet (PPPoE) Mode Description: In this deployment environment, the PPPoE session is between the ADSL WAN interface and BRAS. The Wireless IAD gets a public IP address from BRAS when connecting to DSLAM. The multiple client PCs will get private IP address from the DHCP server enabled on private LAN.
Page 68: Numbered Ip Over Atm (Ipoa)
Wireless IAD User Manual Numbered IP over ATM (IPoA) (Internet Service Provider) RDAIUS Server *BRAS: Broadband Remote Access Server Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the Wireless IAD and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as the IAD IP address and the last one is for subnet broadcasting.
Page 69 Check Configure the second IP Address and Subnet Mask for LAN Interface and enter the information needed. Secondary IP Address: 10.3.80.81 Subnet mask: 255.255.255.248 Click Next. Check the network information on the Summary page. Make sure the settings match the settings provided by your ISP. Click Finish. Refer to the TCP/IP properties, specify an IP Address, and fill in other information needed, e.g.: IP Address: 10.3.80.82...
Page 70: Numbered Ip Over Atm (Ipoa)+Nat
Wireless IAD User Manual Numbered IP over ATM (IPoA)+NAT Description: In this deployment environment, we make up a private IP network of 192.168.1.1. NAT function is enabled (on the IAD or use another NAT box connected to hub) to support multiple clients to access the IAD and some public servers (WWW, FTP). If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the Wireless IAD and public server, e.g., Web or FTP server.
Page 71 On the Configure LAN side Settings page, key in the information for your LAN, e.g., Primary IP Address: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254 Check the network information. Make sure the settings match the settings provided by ISP.
Page 72: Unnumbered Ip Over Atm (Ipoa)
Wireless IAD User Manual Unnumbered IP over ATM (IPoA) (Internet Service Provider) RDAIUS Server *BRAS: Broadband Remote Access Server Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the Wireless IAD and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as IAD IP address and the last one is subnet broadcasting.
Page 73 Check the network information on the Summary page. Make sure the settings match the settings provided by your ISP. Click Finish. Refer to the TCP/IP properties, specify an IP Address, and fill in other information needed, e.g.: IP Address: 10.3.80.82 Subnet Mask: 255.255.255.248 Gateway: 10.3.80.81 Preferred DNS server: 168.95.1.1...
Page 74: Unnumbered Ip Over Atm (Ipoa)+Nat
Wireless IAD User Manual Unnumbered IP over ATM (IPoA)+NAT Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the IAD and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as the IAD IP address and the last one is subnet broadcasting.
Page 75 Check Configure the second IP Address and Subnet Mask for LAN Interface and enter the information needed, e.g., Secondary IP Address: 10.3.80.81 Subnet mask: 255.255.255.248 Click Next. Check the network information on the Summary page. Make sure the contents match the settings provided by your ISP. Click Finish. Now the IAD is well-configured.
Page 76: Bridge Mode
Wireless IAD User Manual Bridge Mode (Internet Service Provider) RDAIUS Server *BRAS: Broadband Remote Access Server Description: In this example, the Wireless IAD acts as a bridge which bridging the PC IP addresses from LAN to WAN. The PC IP address can be a static public address that is pre-assigned by the ISP or a dynamic public address that is assigned by the ISP DHCP server, or an IP address received from PPPoE software.
Page 77: Mer
STM-1 (Internet Service Provider) BRAS RDAIUS Server *BRAS: Broadband Remote Access Server Description: In this deployment environment, we make up a private IP network of 192.168.1.1. NAT function is enabled to support multiple clients to access to Internet. In this example, the Wireless IAD acts as a NAT device which translates a private IP address into a public address.
Page 78 Wireless IAD User Manual...
Page 79: Chapter 4: Web Configuration
Chapter 4: Web Configuration Some users might want to set specific configuration for the router such as firewall, data transmission rate…, and so on. This chapter will provide you advanced information of the web pages for the router for your reference.
Page 80: Outline Of Web Manager
Wireless IAD User Manual Outline of Web Manager To configure the web page, please use admin as the username and the password. The main screen will be shown as below. Title Title: Main Menu: Main Window: Current Version: To Have the New Settings Take Effect After selecting or adjusting the settings according to your needs, your customizations will be saved to the flash memory before you restart the IAD.
Page 81: Quick Start
Chapter 4: Web Configuration Quick Start The pages under the Quick Start menu provide user a quick way to set up the IAD. If you do not know much about the router, you can use the Quick Start pages to adjust basic settings to activate your IAD.
Page 82: Connection Type
Wireless IAD User Manual Connection Type The system provides several protocols for you to choose. Your ISP will offer you the most suitable settings of the protocol. Before you set this page, please refer to the protocol that your ISP offered. After clicking on the Next button from the VPI/VCI web page, the following screen will appear.
Page 83 PPP Username & PPP Password: Key in the username and password that you received from your ISP. (e.g., askey4/askey4) Always On: Select this item to make the connection active all the time. Dial on Demand: Select this item to make a connection automatically while in demand.
Page 84 Wireless IAD User Manual You can check the contents on the Summary page. If you find anything incorrect, click Back to modify the settings. If everything is OK, click Finish to accept these settings. Now, the system will reboot to activate the new settings that you have set in this section.
Page 85: Ip Over Atm
IP over ATM If the type you have to choose is IP over ATM, please refer to the following information. IPoA is an alternative of LAN emulation. It allows TCP/IP network to access ATM network and uses ATM quality of service’s features. Choose IPoA and click Next.
Page 86 Wireless IAD User Manual On the Configure LAN side Settings page; you have to fill in the data requested. Primary IP Address & Subnet Mask: Key in the information offered by your ISP for the LAN connection, e.g., 192.168.1.1 for primary IP address and 255.255.255.0 for subnet mask.
Page 87: Bridging
Bridging If the mode you choose is Bridging (or MER), please refer to the following information. The bridging mode can configure your IAD to send and receive packets between LAN and WAN interfaces. The WAN interface is ATM PVC; the LAN interface can be Ethernet, USB, or Wireless.
Page 88 Wireless IAD User Manual DHCP Server Off: Check this item if DHCP service is not needed on the LAN. We choose this item in our example. You can check the settings on the Summary page now. If you find anything incorrect, click Back to modify the settings.
Page 89: Status
Chapter 4: Web Configuration Status Overview This page displays the current status for the ADSL connection, including the System Up Time, ADSL speed, LAN IP address, default gateway, DNS server, firmware version, boot loader version, ADSL driver version, wireless BSSID, Ethernet MAC address, and so on.
Page 90: Adsl Line
Wireless IAD User Manual ADSL Line This page shows all information for ADSL. For knowing the quality of the ADSL connection, please click ADSL BER Test button to have advanced information. Click More Information hyperlink to show more detailed information about ADSL Line Status.
Page 91: Internet Connection
Internet Connection This page displays the connection information for your wireless IAD, such as the PVC name, VPI/VCI value, service category, protocol, invoking NAT and QoS or not, IP address, linking status, and so on. Traffic Statistics This table shows the records of data going through the LAN and WAN interfaces.
Page 92 Wireless IAD User Manual...
Page 93: Advanced Setup
Chapter 4: Web Configuration Advanced Setup Local Network – IP Address This page is the same as you can see on the Configure LAN side Settings page while running the Quick Setup. It allows you to set IP Address and Subnet Mask values for LAN interface.
Page 94: Local Network - Dhcp Server
Wireless IAD User Manual Local Network – DHCP Server This allows you to set DHCP server on LAN interface. DHCP Server On: Check this item if DHCP service is needed on the LAN. The IAD will assign IP address and gateway address for each of your PCs.
Page 95: Local Network - Upnp
Chapter 4: Web Configuration The information added will be shown on the window right away, as the right figure illustrates. That is, the specified address will be reserved and not be assigned by DHCP for other computer(s). You may click Add button to add another set or click Close to exit.
Page 96 Wireless IAD User Manual interrupt the traffic of USB and wireless users, shown as the following figure. When IGMP snooping is invoked, it makes the system aware to establish the best path for multicast service to save LAN bandwidth. Refer the figure below, just as desired, only host A and D will actually receive multicast traffic when IGMP snooping is enabled.
Page 97: Internet - Connections
Chapter 4: Web Configuration Internet – Connections To set WAN settings for each service, please open Advanced – Internet. This page allows you to edit, to remove, or to add WAN settings. If you click the Connect hyperlink under the PVC Name item, the system will connect to WAN automatically.
Page 98 Wireless IAD User Manual After pressing Next, you will see the web page listed as the right one. Choose the protocol that you would like to use. Please refer to Quick Setup for more information if you don’t know how to set the configuration.
Page 99 Chapter 4: Web Configuration The WAN IP settings page will differ slightly according to the protocol that you choose. The graphic is the one that you will see if you choose the PPPoE mode in the previous step. You can select Enable NAT or change the MTU value according to your needs.
Page 100: Internet - Dns Server
Wireless IAD User Manual Internet – DNS Server If Enable Automatic Assigned DNS checkbox is selected, this IAD will accept the first received DNS assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection establishment. If the checkbox is not selected, it is necessary for you to enter the primary and optional secondary DNS server IP addresses.
Page 101: Internet - Adsl
Chapter 4: Web Configuration Internet – ADSL Enable ADSL Port: Check this box to enable this function. It simply invokes the line mode that you choose here for the IAD. Select the support of line modes: There are several selections, and you may select them according to the line modes supported by your ISP and your needs.
Page 102: Ip Routing - Static Route
Wireless IAD User Manual IP Routing – Static Route The table shows all static route status and allows you to add new static IP route or delete static route. A Static IP Routing is a manually defined path, which determines the data transmitting route.
Page 103: Ip Routing - Dynamic Routing
Example – Static Route Here provides you an example of Static Route. For the LAN shown above, if the PC in the subnet of 192.168.1.x wants to access the PC in the subnet of 192.168.10.x, we can set a static route in the device, in which the destination is the PC in the subnet 192.168.10.x and the gateway is router B.
Page 104: Virtual Server - Port Forwarding
Wireless IAD User Manual Virtual Server – Port Forwarding The Router implements NAT to make your entire local network appear as a single machine to the Internet. The typical situation is that you have local servers for different services and you want to make them publicly accessible. With NAT applied, it will translate the internal IP addresses of these servers to a single IP address that is unique on the Internet.
Page 105 IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the router redirects the external service request to the appropriate server (located at another internal IP address). Add New Port Forwarding To set a virtual server, please open the Virtual Server item from the...
Page 106: Virtual Server - Port Triggering
Wireless IAD User Manual For example, select the predefined application name Audio/Video – Media Player 7, set from ALL internet host IP addresses, and forward to 192.168.1.200. Click Apply. Be sure to reboot your IAD for these changes to take effect. The result will be displayed as the following figure.
Page 107: Virtual Server - Dmz Host
Virtual Server – DMZ Host In computer networks, a DMZ (demilitarized zone) is a computer host or small network inserted as a "neutral zone" between a company's private network and the outside public network. It prevents outside users from getting direct access to a server that has company data.
Page 108: Virtual Server - Dynamic Dns
Wireless IAD User Manual Virtual Server – Dynamic DNS The Dynamic DNS (Domain Name System) combines both functions of DNS and DHCP to map a dynamic IP to a fixed domain name. This page allows you to access the virtual servers with a domain name and password. Dynamic DNS: Select Enable to enable Dynamic DNS;...
Page 109: Nat Alg Configuration
NAT ALG Configuration The need for IP address translation arises when a network's internal IP addresses cannot be used outside the network either for security reasons or because they are invalid for use outside the network. Use of NAT (Network Address Translation) devices allows local hosts on such private networks to transparently access the external global Internet and enables access to selective local hosts from the outside.
Page 110: Firewall - Bridge Filtering
Wireless IAD User Manual Firewall The firewall is a kind of software that interrupts the data between the Internet and your computer. It is the TCP/IP equivalent of a security gate at the entrance to your company. All data must pass through it, and the firewall (functions as a security guard) will allow only authorized data to be passed into the LAN.
Page 111: Firewall - Ip Filtering
Select traffic direction from the drop down menu, and check the network interface which you want this rule to apply on. Then, choose a protocol and define the source or destination MAC address which you want to control. There are three options for traffic direction: Outbound means from local network to Internet;...
Page 112 Wireless IAD User Manual This page provides some settings for you to adjust for adding a new outbound IP Filtering. Allow Traffic: Choose No to stop the data transmission, Yes to permit the data pass through. Protocol: Here provides several default policies for security levels for you to choose.
Page 113 Chapter 4: Web Configuration A new IP filtering setting for Outbound traffic is created in the web page. To edit the setting, please click to get into the editing page. To delete the setting, click to erase it. To set another IP filtering, click Add again.
Page 114 Wireless IAD User Manual Quality of Service QoS (Quality of Service) is an industry-wide initiative to provide preferential treatment to certain subsets of data, enabling that data to traverse the Internet or intranet with higher quality transmission service. There have been two generations of quality of service architectures in the Internet. The interpretation of the Type of Service Octet in the Internet Protocol header varies between these two generations.
Page 115: Quality Of Service - Bridge Qos
Chapter 4: Web Configuration Quality of Service – Bridge QoS To classify the upstream traffic by assigning the transmission priority for different users’ data, please use Bridge QoS to prioritize the data transmission. The Bridge QoS allows you to set the settings based on layer two bridge packets.
Page 116: Quality Of Service - Ip Qos
Wireless IAD User Manual WAN 802.1p: If 802.1p is enabled on Internet connection, WAN 802.1p value of the upstream packets can be overwritten by the selected value. You may select a priority from the drop-down menu. If you set the LAN 802.1p Priority 0 as the traffic condition, choose Low traffic priority for this rule, set DSCP as BE, and WAN 802.1p as no...
Page 117 Source IP/ Subnet Mask/ Port: Key in the source IP address (ex.: 192.168.1.0) and subnet mask (ex.: 255.255.255.0) for the application (ex.: FTP, HTTP, and so on) that you want to invoke the QoS traffic rule. You may simply enter the source port, ranging from 0 to 65535, as the traffic condition.
Page 118: Port Mapping
Wireless IAD User Manual Port Mapping This page allows you to configure various port mapping groups which contains specific Internet connections and LAN ports. The user data will be only transmitted and received among the interfaces in the group. Virtual LAN Function on Ethernet: If you click Disabled, the LAN ports for Ethernet ports will only be shown as an Ethernet interface.
Page 119 Now we are going to map USB, Wireless, and the first Ethernet port together with the bridge mode PVC. Click br_0_35 and press Add button, then use the same way to add USB, Wireless, and Ethernet1 to grouped interfaces. The four items are moved to the right box now.
Page 120 Wireless IAD User Manual...
Page 121: Wireless
Chapter 4: Web Configuration Wireless This page allows you to configure the wireless function on you IAD. You may setup the settings for security, access control, and repeater features for the device. Basic Settings To set the basic configuration for the wireless features, please open Basic item from the Wireless menu.
Page 122 Wireless IAD User Manual Transmission Mode: It decides the mode of data transmission. Choose the one that you want to use from the drop-down menu. There are 802.11b only, 802.11g only and Mixed Mode provided here. Transmission Rate: It decides the speed of data transmission.
Page 123: Security
Chapter 4: Web Configuration Security To configure security features for the Wireless interface, please open Security item from Wireless menu. This web page offers eight authentication protocols for you to secure your data while connecting to networks. There are nine selections including 64-bit and 128-bit WEP, 802.1X, WPA, WPA-PSK, WPA2, WPA2-PSK, mixed WPA2/WPA, and mixed WPA2/WPA-PSK.
Page 124 Wireless IAD User Manual Authentication Type: The ADSL Router supports two authentication types: Open System and Shared key. This should be considered with the WEP (Wired Equivalent Privacy) mechanism. Open System means that it allows any client to authenticate and attempt to communicate with a bridge.
Page 125 For 802.1X Wireless Network When a wireless client requests to access a network, it is required to be authenticated by a central authentication server (RADIUS Server). Only an authenticated user can be granted by the network access and thereby those unauthorized will be blocked.
Page 126 Wireless IAD User Manual For WPA (Wi-Fi Protected Access) The WPA (WiFi-Protected Access) authentication is suitable for enterprises. It must be used in conjunction with an authentication server such as RADIUS to provide centralized access control and management. It can provide stronger encryption and authentication solution than none WPA modes.
Page 127 For WPA-PSK; WPA2-PSK; Mixed WPA2/WPA-PSK WPA-PSK (WPA-Pre-Shared Key) is useful for small places without authentication servers such as the network at home. It allows the use of manually-entered keys or passwords and is designed to be easily set up for home users.
Page 128 Wireless IAD User Manual For WPA-2; Mixed WPA2/WPA Wireless Security: The WPA2 is suitable for enterprises. It must be used in conjunction with an authentication server such as RADIUS to provide centralized access control and management. It can provide stronger encryption and authentication solution than other WPA mode.
Page 129: Access Control
Access Control The web page allows you to enable the wireless MAC control configuration. Access Control: Click Off to disable this function. Click On in Allow mode to allow the devices using matched MAC address to link to the AP. And click On in Deny mode to disturb the listed wireless MAC address to access the AP.
Page 130: Repeater
Wireless IAD User Manual Repeater A repeater is an electronic device that receives a weak or low-level signal and retransmits it at a higher level or higher power, so that the signal can cover longer distances without degradation. The example figure illustrates the releationship among the repeaters and the clients.
Page 131: Voice Over Ip
Voice over IP VoIP (Voice over IP) is a voice service provided by the ISP or VSP (Voice Service Provider). It compresses the voice signal into data package and transfers the data through the IP network. That is, it is a telecommunications service of sounds by the open Internet.
Page 132: Sip
Wireless IAD User Manual SIP (Session Initiation Protocol) is a signaling protocol for Internet conferencing, telephony, presence, events notification and instant messaging. Besides the combination with other internet technology, such as HTTP, SMTOP, RTSP, etc., and the communication service of integrating audio and other multimedia like Instant Messaging and Presence service, it can be used to build the network telephone.
Page 133 SIP Transport Port: Key in the port number for the SIP proxy server provided by your ISP. The default port here is 5060. SIP Registrar Address: Enter the IP address or Domain name for the SIP Registrar Address. Port: Key in the port number for the SIP Registrar server provide by your ISP.
Page 134: Sip Extension
Wireless IAD User Manual SIP Extension More advanced functions are provided here, these are optional settings. Please check what you need for the Wireless IAD settings. Encode SIP option with the User Agent: It means the device name will be conveyed with the packets transmitted to other places.
Page 135: Audio Codec
SIP Min-SE value: As implied in the name, the value you type here is the minimum value for the session timer. The default value is 180 seconds. Do NOT send My Phone Number: This item allows the caller’s ID or name not to be sent to the receiver.
Page 136: Pstn Control
Wireless IAD User Manual PSTN Control PSTN means Public Switched Telephone Network. It is one kind of telephone system which uses the copper cable to transmit analog sound. PSTN is also known as POTS (Plain Old Telephone System). This page allows you to change the prefix digits to dial one PSTN phone call. If your device is on the PSTN mode, it is not necessary for you to set the prefix digits for the PSTN phone calls.
Page 137 Chapter 4: Web Configuration Select Tone/Ring Signals for: Different places have different tone/ring signals. You have to make sure the location of the receiver and choose a proper one. Simply use the drop-down list to select. Prefix digits to dial PSTN phone call: The digits that you type here must be dialed before the phone number for a...
Page 138 Wireless IAD User Manual Definitions of FXS and FXO FXS (Foreign eXchange Subscriber) interface delivers POTS service from the local phone company and connects to subscriber equipment (e.g., phone, fax, modem.. and so on). That is, an FXS interface will point to the subscriber directly. An FXS interface can provide primary service of dial tone, battery current and ring voltage to a subscriber device.
Page 139 Chapter 4: Web Configuration Connection Diagram for the Application of FXS-FXO General VoIP Call VoIP Call with Prefix Digits VoIP Call that fits dial plan...
Page 140: Call Log
Wireless IAD User Manual Call Log This page shows the log information for the call. There are three items that you can choose for viewing details in the list below. They are Outgoing Calls, Incoming Calls and Missed Incoming Calls. To see either one of them, simple click the radio button of that item.
Page 141: Example For Call Features
Example for Call Features The figures below shows the call features for this model: Note: The availability of these call features is dependent on your VoIP Service Provider Call Transfer 1 User 1 calls User 2 2 User 2 answers 3 User 2 hits hook/flash button to transfer call 4 User 2 hears dial tone and dials User 3...
Page 142 Wireless IAD User Manual...
Page 143: Management
Chapter 4: Web Configuration Management Diagnostics To check the linking status for the network and your computer, a diagnostic test can guide you to detect the network problem. The testing items are listed and examined one by one. If the previous one is failed, than the items following that one will be failed, too.
Page 144: Management Accounts
Wireless IAD User Manual Management Accounts This page allows you to change the user name and password for accessing your wireless IAD. For the Admin Account, the default setting for both username and password are admin. If you want to change the username and the password, please modify the User Name and New Password, and then...
Page 145: Management Control - From Local
Authorized Host IP Address List: Decide whether all internet hosts can access your IAD or only authorized internet hosts can access. Click Apply to save your setting. Management Control – From Local You can allow local access to your router via the checked interfaces. Authorized Host IP Address List: Refer to Remote Management Control.
Page 146 Wireless IAD User Manual Connect to ACS: Choose to connect to ACS with or without SSL (Secure Socket Layer) protocol according to your ISP. If the ACS URL starts with http://, choose without SSL mode; if it begins with https://, select with SSL. ACS URL Address: Key in the Auto-Configuration Server URL Address provided by the ISP,...
Page 147 Chapter 4: Web Configuration Press Trusted CA Certificates to Import Certificate obtained from your ISP, a window (as shown in the figure) will be prompted for you to import certificate. Note: The certificate may have been imported in this device already, please check with your ISP.
Page 148: Internet Time
Wireless IAD User Manual Internet Time The clock of the IAD must synchronize with global Internet time. The time you set in the screen will be adapted to system log. Update Now: Click this button to refresh the current time. Set Time by (Time Server or Manual): The default setting is Manual.
Page 149: System Log
Chapter 4: Web Configuration System Log As shown on the web page, you can view the system log and configure system log whenever you want. To view the system log, you must configure system log first. Press Configure System Log to start. Configuring System Log You can enable or disable the log function, and choose log level,...
Page 150 Wireless IAD User Manual Therefore, when the log level is “Debugging” and the display level is “Error”, the CPE logs the most detailed message but shows error level data only. Mode: You can choose where to store the logs; the options include Local, Remote and Both.
Page 151 Viewing System Log – Remote Side (Server) To view the system log on the Log Server (10.11.95.2), a log viewing tool must be installed. 1. Download the Kiwi Syslog Daemon from Kiwi Enterprises. Kiwi Syslog Daemon is a freeware Syslog Daemon for Windows.
Page 152 Wireless IAD User Manual Viewing System Log – Local Side (Wireless IAD) For viewing the system log on local side, click the View System Log button on the webpage for system log configuration. The system log record on the IAD will be displayed on a screen shown as below. The Date/Time records the logging time, and the Facility field distinguishes different classes of system log message.
Page 153: Backup Config
Chapter 4: Web Configuration Backup Config To backup your settings of the wireless IAD, you can use Backup Config web page to save the configuration. Click Backup button and the warning window will be prompted. Click OK to continue the backup procedure. The system will ask your command about the next procedure.
Page 154: Update Firmware
Wireless IAD User Manual After opening the backup file, click Restore. Update Firmware If you have to or want to upgrade the firmware for this IAD, you can open the Update Firmware web page and choose the correct file by pressing Browse.
Page 155: Upnp For Xp
UPnP for XP Universal plug and play (UPnP) is architecture for pervasive peer to peer network connectivity of intelligent appliances and PCs of all form factors. It is designed to bring easy-to-use, flexible, standards-based connectivity to ad-hoc or unmanaged networks whether in the home, in a small business, public places, or attached to the Internet.
Page 156 Wireless IAD User Manual 6. Double click on the icon, and the IAD will open a web page via the port for UPnP function. The IE address will be directed to the IP address for the configuration main page as shown in the graphic. 7.
Page 157: Chapter 5: Troubleshooting
Chapter 5: Troubleshooting If the suggested solutions in this section do not resolve your issue, contact your system administrator or Internet service provider. Problems with LAN PCs on the LAN cannot get IP addresses from the Wireless IAD. The chances are that the interface used as DHCP server is modified and the client PCs do not renew IP addresses.
Page 158: Problems With Upgrading
Wireless IAD User Manual Problems with Upgrading The following lists the error messages that you may see during upgrading and the action to take. Error message: All the ADSL LEDs light up and cannot light off as usual. Possible cause: When users are executing firmware upgrade and saving settings to the IAD, the power for the IAD is lost for some unknown reasons, the normal web page for the IAD might be damaged.
Page 159: Chapter 6: Glossary
Chapter 6: Glossary ARP (Address Resolution Protocol ) ARP is a TCP/IP protocol for mapping an IP address to a physical machine address that is recognized in the local network, such as an Ethernet address. A host wishing to obtain a physical address broadcasts an ARP request onto the TCP/IP network. The host on the network that has the IP address in the request then replies with its physical hardware address.
Page 160 Wireless IAD User Manual Private IP Address Private IP addresses are also LAN IP addresses, but are considered “illegal” IP addresses to the Internet. They are private to an enterprise while still permitting full network layer connectivity between all hosts inside an enterprise as well as all public hosts of different enterprises. The ADSL Router uses private IP addresses by assigning them to the LAN that cannot be directly accessed by the Internet or remote server.
Page 161 Chapter 6: Glossary...
Page 162: Appendix A: Specifications
Interface Regulatory Approvals and Compliance Power Requirement and Operation Environment Requirement Physical Appendix A: Specifications One RJ-11 port for ADSL connection One RJ-11 port (FXO port) for connecting to PSTN line Two RJ-11 ports (FXS ports) for VoIP phone calls Four RJ-45 ports for IEEE 802.3/802.3u 10/100 Base-T auto-sensing and auto-crossover Ethernet connection One USB client port compliant to USB 1.1...
Page 163 Appendix A: Specifications...
Page 164: Appendix B: Client Setup For 802.1X, Wpa, And Wpa-Psk
Appendix B: Client Setup for 802.1x, WPA, and Retreiving Client Certificate This step is only required if you intend to authenticate with EAP/TLS. While there are many ways you may receive a certificate from your Certificate Authority, the example here is to show you how to retrieve your certificate from a Microsoft Certificate Services server via its easy web interface.
Page 165 Appendix B: Client Setup for 802.1x, WPA, and WPA-PSK Make sure that Request a certificate is selected, and click Next. Select User Certificate, then Next. Click Submit in the following step.
Page 166 Wireless IAD User Manual You may retrieve your certificate by clicking Install this certificate. You'll receive a confirmation message about accepting the certificate, click Yes...
Page 167: Enabling 802.1X Authentication And Security
Appendix B: Client Setup for 802.1x, WPA, and WPA-PSK Enabling 802.1x Authentication and Security Click Run from the Start menu. Type services.msc and click OK. Scroll to the bottom of the list. Double click on the Wireless Zero Configuration service and verify that it is set to Automatic and that it is Started.
Page 168 Wireless IAD User Manual Ensure that Enable network access control using IEEE 802.1X is selected, and Smart Card or other Certificate is selected from the EAP type. 10. Click Properties under EAP type. 11. You can choose whether to use one of your certificates you have loaded on the computer, or use a smart card for access.
Page 169: Enabling Wpa Authentication And Security
Appendix B: Client Setup for 802.1x, WPA, and WPA-PSK 14. Click OK twice to close the dialogs until return to Wireless Networks tab of wireless properties. Now we can see the wireless network which we have just set up being displayed on the Prefered networks.
Page 170 Wireless IAD User Manual The Enable network access control using IEEE 802.1X is selected by default, and Protected EAP (PEAP) is selected from the EAP type. Click Properties under EAP type. 10. Choose Use a certificate on this computer option and select Use simple certificate selection (Recommended).
Page 171: Enabling Wpa-Psk Authentication And Security
Appendix B: Client Setup for 802.1x, WPA, and WPA-PSK Enabling WPA-PSK Authentication and Security Click the Start button, select Control Panel, then Network Connections. Right click on your wireless network card and select Properties. Click on the Wireless Networks tab. Click Add to continue.
Page 172 Wireless IAD User Manual The Network with WPA-PSK authentication has been set up, and is displayed in the preferred networks field. Now the configuration for WPA-PSK authentication is completed.

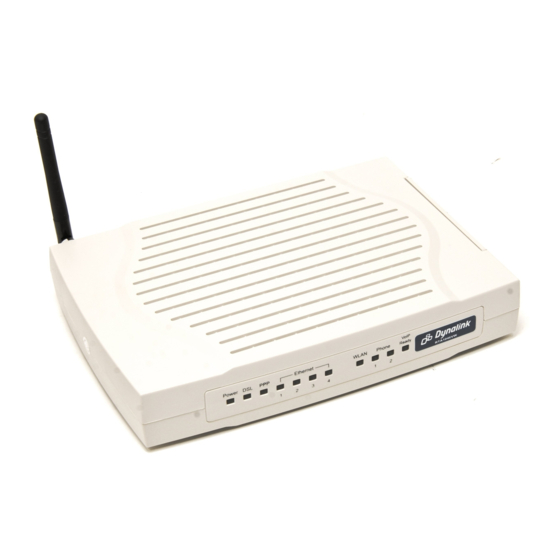

Dynalink ADSL2+ Wireless VoIP Router RTA1046VW User Manual

Before You Use

Chapter 1: Overview

Chapter 2: System Requirement and Installation

Chapter 3: Accessing the Internet

Chapter 4: Web Configuration

Chapter 5: Troubleshooting

Chapter 6: Glossary

Appendix A: Specifications

Appendix B: Client Setup for 802.1X, WPA, and WPA-PSK

Quick Links

User Manual

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynalink ADSL2+ Wireless VoIP Router RTA1046VW

Summary of Contents for Dynalink ADSL2+ Wireless VoIP Router RTA1046VW

Table of Contents
