Dynalink RTA1335 User Manual

Adsl2+ 4-port modem router
Hide thumbs Also See for RTA1335:
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual

RTA1335

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTA1335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynalink RTA1335

Summary of Contents for Dynalink RTA1335

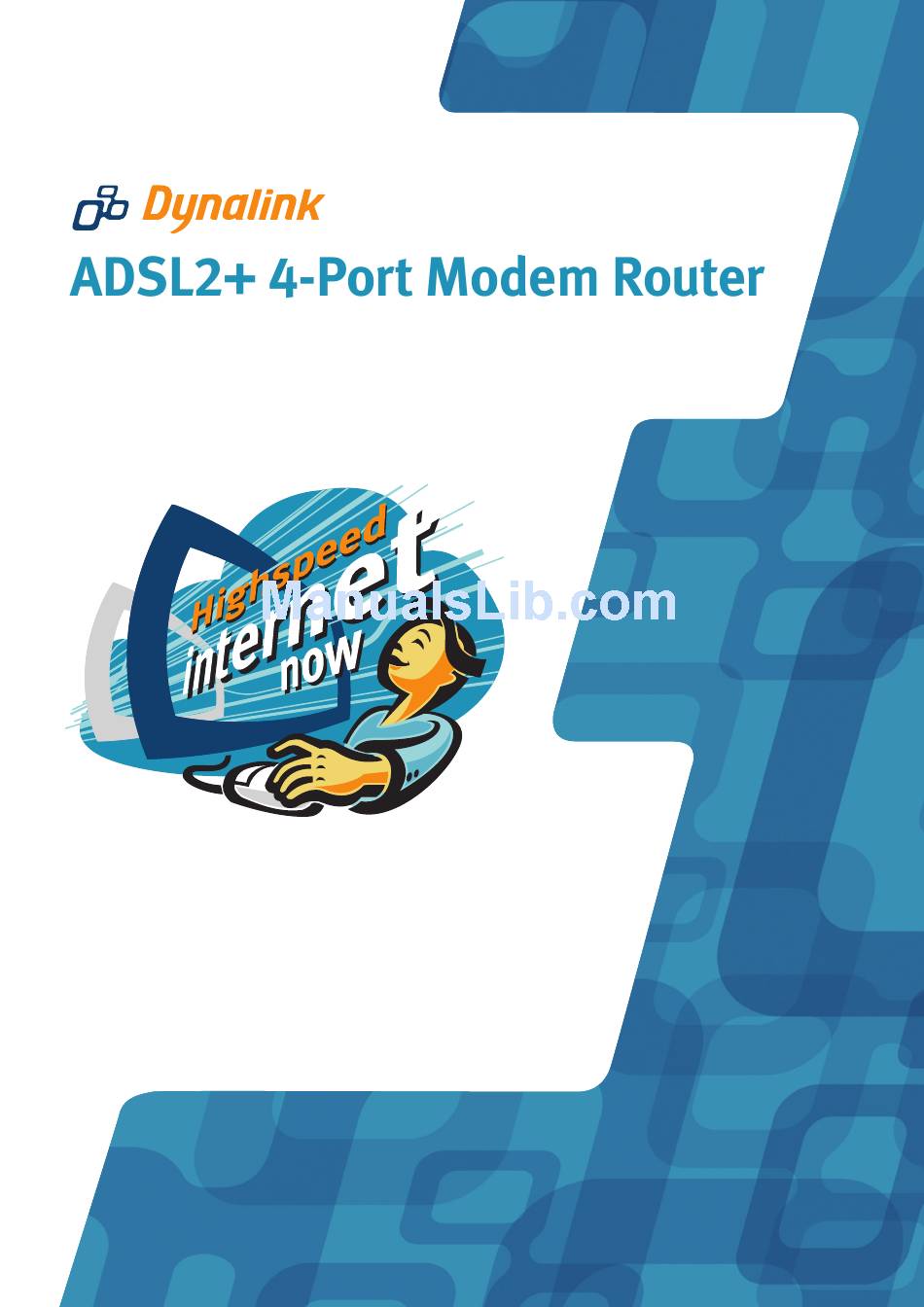

  • Page 1: User Manual

    User Manual RTA1335...
  • Page 2 Safety Notes Use only the type of power source indicated on the marking labels. For Installation Use only power adapter supplied with the product. Do not overload wall outlet or extension cords as this may increase the risk of electric shock or fire. If the power cord is frayed, replace it with a new one. Proper ventilation is necessary to prevent the product overheating.
  • Page 3 ADSL Router User Manual This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. FCC Class B Notice This device complies with Part 15 of the FCC Rules.

  • Page 5: Table Of Contents

    Contents Contents Preface ....................vii Features ......................vii Unpacking ......................ix Subscription for ADSL Service................ix Chapter 1: Overview .................1 Physical Outlook ....................1 Front Panel ....................1 Rear Panel ....................2 Chapter 2: System Requirement and Installation..........3 System Requirement .................... 3 Choosing a place for the ADSL Router..............
  • Page 6 ADSL Router User Manual Quick Start......................37 Connect to Internet...................37 Quick Setup .....................37 Connection Type ..................38 PPP over ATM/ PPP over Ethernet..............39 IP over ATM .....................42 Bridging....................45 Status .......................47 Overview ....................47 ADSL Line ....................48 Internet Connection ..................49 Traffic Statistics..................49 DHCP Table ....................49 Routing Table ...................50 ARP Table ....................50 Advanced Setup....................51...

  • Page 7: Preface

    RTA1335 ADSL2+ Router is a low-cost DSL broadband access device for home or office users. It supports ADSL2/ADSL2+ and is backward compatible to ADSL, even offers auto-negotiation capability for different flavors (G.dmt, G.lite, or T1.413 Issue 2) according to central office...

  • Page 8: Bridging Features

    ADSL Router User Manual Support PPPoA or PPPoE Bridged mode (the IP address got from ISP can be passed to the user’s PC and behave as the IP address of the user’s PC.) OAM F4/F5 End-to-End/Segment Loopback Cells Bridging Features Supports self-learning bridge specified in IEEE 802.1D Transparent Bridging Supports up to 4096 learning MAC addresses Transparent Bridging among 10/100 Mb Ethernet...

  • Page 9: Unpacking

    ADSL Router User Manual Unpacking Check the contents of the package against the pack contents checklist below. If any of the items is missing, then contact the dealer from whom the equipment was purchased. ADSL Router Power Adapter and Cord RJ-11 ADSL Line Cable RJ-45 Ethernet Cable Quick Start Guide...
  • Page 10 ADSL Router User Manual...

  • Page 11: Chapter 1: Overview

    Chapter 1: Overview Chapter 1: Overview This chapter provides you the description for the LED and connector for front and rear view of the router. Before you use/install this router, please take a look at this information first. Physical Outlook Front Panel The following illustrations show the front panel of the ADSL Router (with USB interface and without USB interface):...

  • Page 12: Rear Panel

    ADSL Router User Manual Function Color and Status Definition No Ethernet signal is detected. Ethernet Flash Green User data going through Ethernet port Solid Green Ethernet interface is ready to work. Rear Panel The following figures illustrate the rear panel of your ADSL Router. Connector Description RJ-11 connector...

  • Page 13: Chapter 2: System Requirement And Installation

    Chapter 2:System Requirement and Installation Chapter 2: System Requirement an d Installation System Requirement To access the ADSL Router via Ethernet, the host computer must meet the following requirements: With Ethernet network interface. Must have TCP/IP installed. Set client PC with obtain an IP address automatically or set fix IP address. With a web browser installed: Internet Explorer 5.x or later.

  • Page 14: Connecting The Adsl Router

    ADSL Router User Manual Connecting the ADSL Router Follow the steps below to connect the related devices. Connecting the ADSL line. Connect the DSL port of the device to your ADSL wall outlet with RJ-11 cable. " Please attach one end of the Ethernet cable with RJ-45 connector to the LAN port of your ADSL Router.

  • Page 15: Setting Tcp/Ip

    Chapter 3: Configuration For connecting through a hub, please refer to the following diagram for an example. Setting TCP/IP In order to access the Internet through the router, each host on your network must install/setup TCP/IP. Please follow the steps below for select a network adapter.

  • Page 16: For Windows 98

    ADSL Router User Manual For Windows 98 Click on the Start menu, point to Settings and click on Control Panel. Double-click the Network icon The Network window appears. On the Configuration tab, check out the list of installed network components. Option 1: If you have no TCP/IP protocol, click Add.
  • Page 17 Chapter 3: Configuration On the left side of the windows, highlight Microsoft and then select TCP/IP on the right side. Then click OK When returning to Network window, highlight TCP/IP protocol for your NIC and click Properties. On IP Address tab: Enable Specify an IP address option.
  • Page 18 ADSL Router User Manual When returning to Network window, click Wait for Windows copying files. When prompted with System Settings Change dialog box, click Yes to restart your computer.

  • Page 19: For Windows Me

    Chapter 3: Configuration For Windows ME 1. Click on the Start menu, point to Settings and click on Control Panel. 2. Double-click the Network icon. 3. The Network window appears. On the Configuration tab, check out the list of installed network components. Option 1: If you have no TCP/IP protocol, click Add.

  • Page 20: For Windows Nt

    ADSL Router User Manual 9. Wait for Windows copying files. 10. When prompted with the System Settings Change dialog box, click Yes to restart your computer. For Windows NT 1. Click Start, point to Settings, and then click Control Panel. 2.
  • Page 21 Chapter 3: Configuration 5. Click Yes to use DHCP. 6. Insert the Windows NT CD into your CD-ROM drive and type the location of the CD. Then click Continue. 7. Returning to the Network window, you will find the TCP/IP Protocol among the list.
  • Page 22 ADSL Router User Manual When returning to Network window, click Close. When prompted with Network Settings Change dialog box, click Yes to restart your computer.

  • Page 23: For Windows 2000

    Chapter 3: Configuration For Windows 2000 From the Start menu, point to Settings and then click Network and Dial-up Connections. Right-click the Local Area Connection icon and then click Properties. On the General tab, check out the list of installed network components. Option 1: If you have no TCP/IP Protocol, click Install.
  • Page 24 ADSL Router User Manual Highlight Protocol and then click Add. Click Internet Protocol (TCP/IP) and then click OK. When returning to Local Area Connection Properties window, highlight Internet Protocol (TCP/IP) and then click Properties. Under the General tab, enable Use the following IP Address.

  • Page 25: For Windows Xp

    Chapter 3: Configuration For Windows XP From the Start menu, point to Control Panel and then click Network and Internet Connections. Click Network Connection and then click Properties. Click Network Connection and then click Properties.3. On the General tab, check out the list of installed network components.

  • Page 26: Configure Pc To Get Ip Address From Dhcp

    ADSL Router User Manual Configure PC to get IP address from DHCP If your ADSL Router operates as a DHCP server for the client PCs on the LAN, you should configure the client PCs to obtain a dynamic IP address. Please follow the previous section to install TCP/IP component.

  • Page 27: For Windows Nt

    Chapter 3: Configuration For Windows NT On the IP Address tab, click on the drop-down arrow of Adapter to select required adapter. Enable Obtain an IP address from a DHCP server and then click OK.. When prompted with the message below, click Yes to continue.

  • Page 28: For Windows Xp

    ADSL Router User Manual For Windows XP On the IP Address tab, select Obtain an IP address automatically. Then click OK. Renew IP Address on Client PC There is a chance that your PC does not renew its IP address after the ADSL Router is on line and the PC cannot access the Internet.

  • Page 29: For Windows Nt

    Chapter 3: Configuration 3. When the figure below appears, click Release and then Renew to get an IP address. For Windows NT 1. Select Run from the Start menu. 2. Select Run from the Start menu. 3. Type cmd in the dialog box and the click 4.

  • Page 30: For Windows 2000

    ADSL Router User Manual For Windows 2000 1. From the Start menu, point to Programs, Accessories and then click Command Prompt. 2. Type ipconfig at prompt. Then you will see the IP information from DHCP server. 3. If you want to get a new IP address, type ipconfig /release to release the previous IP address and then type ipconfig /renew to get a new one.

  • Page 31: Chapter 3: Connecting And Accessing Internet

    Chapter 3:Connecting and Accessing Internet Chapter 3: Connecting and Accessin g Internet This chapter is to help you accessing into Internet with a quick and convenient way. If you need more detailed information for web configuration, please get into the next chapter for the advanced configuration. Prior to configuring the ADSL Router, you must decide whether to configure the ADSL Router as a bridge or as a router.

  • Page 32: Ppp Over Atm (Pppoa) Mode

    ADSL Router User Manual PPP over ATM (PPPoA) Mode Default Private IP Dynamic Public IP 192.168.1.1 assigned by BRAS 192.168.1.3 STM-1 Loop (Internet Service Provider) Ethernet ADSL BRAS DSLAM Router RDAIUS 192.168.1.2 Server PC(S) PPP over ATM *BRAS: Broadband Remote Access Server PPPoA+NAT+DHCP on Private LAN Description:...

  • Page 33: Ppp Over Atm (Pppoa) Ip Extension Mode

    Chapter 3:Accessing Internet PPP over ATM (PPPoA) IP Extension Mode Default Private IP 192.168.1.1 Dynamic Public IP assigned by BRAS Loop STM-1 (Internet Service Provider) Ethernet ADSL BRAS DSLAM Router RDAIUS Server PPP over ATM *BRAS: Broadband Remote Access Server PPPoA+NAT+DHCP on Private LAN Description:...

  • Page 34: Ppp Over Ethernet (Pppoe) Mode

    ADSL Router User Manual PPP over Ethernet (PPPoE) Mode Default Private IP Dynamic Public IP 192.168.1.1 assigned by BRAS 192.168.1.3 STM-1 (Internet Service Provider) Loop Ethernet ADSL BRAS DSLAM Router 192.168.1.2 RDAIUS Server PC(S) PPP over Ethernet *BRAS: Broadband Remote Access Server PPPoE+NAT+DHCP on Private LAN Description:...

  • Page 35: Ppp Over Ethernet (Pppoe) Ip Extension Mode

    Chapter 3:Accessing Internet PPP over Ethernet (PPPoE) IP Extension Mode Default Private IP 192.168.1.1 Dynamic Public IP assigned by BRAS (Internet Service Provider) STM-1 Loop Ethernet ADSL DSLAM BRAS Router PC(S) RDAIUS Server PPP over Ethernet *BRAS: Broadband Remote Access Server PPPoE IP Extension Mode Description:...

  • Page 36: Numbered Ip Over Atm (Ipoa)

    ADSL Router User Manual Numbered IP over ATM (IPoA) Default Private IP 192.168.1.1 10.3.75.51 STM-1 Loop 10.3.75.49 (Internet Service Provider) 10.3.70.1 ADSL BRAS DSLAM Router 10.3.75.50 RDAIUS PC(S) Server IP over ATM *BRAS: Broadband Remote Access Server Public IP Pre-assigned by ISP Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the...
  • Page 37 Chapter 3:Accessing Internet Check the network information. Make sure the settings match the settings provided by ISP. Click Finish. Set TCP/IP for your computer. Specify an IP Address, subnet mask and set default gateway. eg: IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49 Now the router is well configured.

  • Page 38: Numbered Ip Over Atm (Ipoa)+Nat

    ADSL Router User Manual Numbered IP over ATM (IPoA)+NAT Description: In this deployment environment, we make up a private IP network of 192.168.1.1. NAT function is enabled (on ADSL Router or use another NAT box connected to hub) to support multiple clients to access the Router and some public servers (WWW, FTP).
  • Page 39 Chapter 3:Accessing Internet LAN. Primary IP Address: 192.168.1.1 Subnet mask: 255.255.255.0 Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254 Check Configure the second IP Address and Subnet Mask for LAN Interface and type in the second IP address and subnet mask. Then click Next. Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248 Check the network information.

  • Page 40: Unnumbered Ip Over Atm (Ipoa)

    ADSL Router User Manual Unnumbered IP over ATM (IPoA) Default Private IP 192.168.1.1 10.3.75.51 STM-1 Loop 10.3.75.49 (Internet Service Provider) ADSL BRAS DSLAM Router 10.3.75.50 RDAIUS PC(S) Server IP over ATM *BRAS: Broadband Remote Access Server Public IP Pre-assigned by ISP Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server.
  • Page 41 Chapter 3:Accessing Internet Set TCP/IP for your computer. Specify an IP Address, subnet mask and set default gateway. eg: IP Address: 10.3.75.51 Subnet Mask: 255.255.255.248 Gateway: 10.3.75.49 Now the router is well configured. You can access into Internet.

  • Page 42: Unnumbered Ip Over Atm (Ipoa)+Nat

    ADSL Router User Manual Unnumbered IP over ATM (IPoA)+NAT Description: If you apply for multiple IP addresses from your ISP, you can assign these public IP addresses to the ADSL Router and public server, e.g., Web or FTP server. Typically the first IP is network address, the second is used as router IP address and the last one is subnet broadcasting.
  • Page 43 Chapter 3:Accessing Internet Start IP Address: 192.168.1.2 End IP Address: 192.168.1.254 Check Configure the second IP Address and Subnet Mask for LAN Interface and type in the second IP address and subnet mask. Then click Next. Secondary IP Address: 10.3.75.49 Subnet mask: 255.255.255.248 Check the network information.

  • Page 44: Bridge Mode

    ADSL Router User Manual Bridge Mode Default Private IP 192.168.1.1 Loop STM-1 (Internet Service Provider) PPPoE Client S/W ADSL BRAS DSLAM Router RDAIUS Server PC(S) PPP over Ethernet *BRAS: Broadband Remote Access Server Bridge Mode Description: In this example, the ADSL Router acts as a bridge which bridging PC IP address from LAN to WAN. PC IP address can be a static public address that is pre-assigned by ISP or a dynamic public address that is assigned by ISP DHCP server, or can be got from PPPoE software.

  • Page 45: Chapter 4: Web Configuration

    Chapter 4:Web Configuration Chapter 4: Web Configuration Some users might want to set specific configuration for the router such as firewall, data transmission rate… and so on. This chapter will provide you advanced information of the web pages for the router for your reference. Using Web-Based Manager Once your host PC is properly configured, please proceed as follows: Start your web browser and type the private IP address...

  • Page 46: Outline Of Web Manager

    ADSL Router User Manual Outline of Web Manager For configure the web page, please use admin as the username and the password. The main screen will be shown as below. Title: It indicates the title of this management interface. Main Menu: Includes Quick Start, Status, Advanced and Management.

  • Page 47: Quick Start

    Chapter 4:Web Configuration Quick Start The pages for the Quick Start provide user a quick way to set for the router. If you do not know more about the router, you can use the Quick Start pages to adjust basic settings to make your router activating.

  • Page 48: Connection Type

    ADSL Router User Manual Connection Type The system provides several protocols for you to choose. Your ISP will offer you the most suitable settings of the protocol. Before you set this page, please refer to the protocol that your ISP gave you. After clicking on the Next button from the VPI/VCI web page, the following screen will appear.

  • Page 49: Ppp Over Atm/ Ppp Over Ethernet

    Chapter 4:Web Configuration PPP over ATM/ PPP over Ethernet If the type you choose is PPP over ATM or PPP over Ethernet, please refer to the following information. According to the ISP’s configuration on the server, you can choose PPPoE and PPPoA modes.
  • Page 50 ADSL Router User Manual page, you have to fill in the data requested here. Primary IP Address: Type in the first IP address that you got from your ISP for your LAN connection. Subnet Mask: Type in the subnet mask that you got from your ISP for your LAN connection.
  • Page 51 Chapter 4:Web Configuration You can check it at this time. If you find something is incorrect, click Back to change the settings. If everything is OK, click Finish to accept these settings. Now, the system will reboot to activate the new settings that you have done in this section.

  • Page 52: Ip Over Atm

    ADSL Router User Manual IP over ATM If the type you have to choose is IP over ATM, please refer to the following information. IPoA is an alternative of LAN emulation. It allows TCP/IP network to access ATM network and uses ATM quality of service’s features.
  • Page 53 Chapter 4:Web Configuration your ISP for your LAN connection. Configure the second IP Address and Subnet Mask for LAN interface: Check this box to make another set of IP Address and Subnet Mask to connect to your router if they are not included in the range that DHCP server accepts.
  • Page 54 ADSL Router User Manual Now, the system will reboot to activate the new settings that you have done in this section. Please wait for 2 minutes for restarting the router.

  • Page 55: Bridging

    Chapter 4:Web Configuration Bridging If the type you choose is Bridging, please refer to the following information. The bridging mode can configure your router to send packets received on any port such as ATM PVC or Ethernet with a broadcast MAC address to all other ports.
  • Page 56 ADSL Router User Manual of the data greater than the number set here will be divided into several packets for transmitting. Type in the number into the field of MTU. The default setting is 1500. DHCP Server On: Check this item if DHCP service is needed on the LAN.

  • Page 57: Status

    Chapter 4:Web Configuration Status Overview This page is displaying the current status for the DSL connection.

  • Page 58: Adsl Line

    ADSL Router User Manual ADSL Line This page shows all information for ADSL. For knowing the quality of the ADSL connection, please click ADSL BER Test button to have advanced information. Click More Information to show more detailed information about ADSL Line Status.

  • Page 59: Internet Connection

    Chapter 4:Web Configuration When the test is over, the result will be shown on the following dialog for your reference. Click Close to close this dialog. Internet Connection This page displays the connection information for your router, such as PVC name, category, protocol, invoking NAT or not, IP address, link status and so on.

  • Page 60: Routing Table

    ADSL Router User Manual Routing Table This table shows the routing method that your router uses. ARP Table This table shows the IP address record for IP-to-Physical translation in your router.

  • Page 61: Advanced Setup

    Chapter 4:Web Configuration Advanced Setup Local Network- IP Address This page is the same as you can see in the Configure LAN side Settings page while running the Quick Setup. It allows you to set IP Address and Subnet Mask values for LAN interface. Primary IP Address: Type in the first IP address that you got from your ISP for your LAN connection.
  • Page 62 ADSL Router User Manual DHCP Server On: Check this item if DHCP service is needed on the LAN. The router will assign IP address, gateway address for each of your PCs. Start IP Address: Type in the start point IP address. End IP Address: Type in the end point IP address.
  • Page 63 Chapter 4:Web Configuration The new one will be shown on the dialog right away. That is, the specified address will be reserved and not be assigned by DHCP for other computer.

  • Page 64: Local Network - Upnp

    ADSL Router User Manual Local Network – UPnP The UPnP is available only for Windows XP. If you are not user of Windows XP, this page does not have any meaning to you. This page allows you to enable the UPnP function through the web page for your router.
  • Page 65 Chapter 4:Web Configuration If you choose Non Realtime VBR, you have to type in the following data. The range for Peak Cell Rate is from 1 to 1690. The range for Sustainable Cell Rate is from 1 to 1689 and must be smaller than Peak Cell Rate.

  • Page 66: Internet - Dns Server

    ADSL Router User Manual Internet - DNS Server If Enable Automatic Assigned DNS checkbox is selected, this router will accept the first received DNS assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection establishment. If the checkbox is not selected, it is necessary for you to enter the primary and optional secondary DNS server IP addresses.

  • Page 67: Internet - Adsl Settings

    Chapter 4:Web Configuration Internet - ADSL Settings Enable ADSL Port: Check this box to enable this function. It simply invokes the line mode that you choose here for the router. Select the support of line modes: There are several selections for your choosing.

  • Page 68: Configuring Other Routers On Your Lan

    ADSL Router User Manual Display the interface that the data transmitting is passing through. Delete: Allow you to remove the selected static route settings. Adding a New One To add a static route, please choose Static Route - Add. Type the destination network address, subnet mask and gateway that you get from ISP and click Apply.

  • Page 69: Adsl Router

    Chapter 4:Web Configuration Destination: Normally 0.0.0.0 but check your router documentation. Subnet Mask: Normally 0.0.0.0 but check your router documentation. Gateway: The IP Address of the Router. Other Routers on the Local LAN Other routers on the local LAN must use the Router’s Local Router as the Default Route. The entries will be the same as the Router’s local router, with the exception of the Gateway IP Address.

  • Page 70: Virtual Servers-Port Forwarding

    ADSL Router User Manual Virtual Servers-Port Forwarding The Router implements NAT to let your entire local network appear as a single machine to the Internet. The typical situation is that you have local servers for different services and you want to make them publicly accessible.

  • Page 71: Ip Address Seen By Internet Users

    Chapter 4:Web Configuration IP Address seen by Internet Users Please note that, in the above picture, both Internet users are connecting to the same IP address, but using different protocols. To Internet users, all virtual servers on your LAN have the same IP Address. This IP Address is allocated by your ISP.

  • Page 72: Virtual Servers-Port Triggering

    ADSL Router User Manual From Internet Host IP Address: Select the initial place for port forwarding. If you choose SINGLE, a box will appear for you to fill in the IP address for the specific host. And, if you choose SUBNET, the boxes of IP and Subnet will appear for you to fill in the IP address and subnet mask for the specific host as the start point.
  • Page 73 Chapter 4:Web Configuration Or define by yourself by typing the words into the field of User defined. Click Apply to complete the setting.

  • Page 74: Virtual Servers - Dmz Host

    ADSL Router User Manual Virtual Servers - DMZ Host Direct Mapping Zone (DMZ) uses a technology that makes Router forwarding all incoming packet to internal specific server. To close the function of DMZ Host, please click Discarded. To activate a DMZ host, please click Forwarded to the DMZ host radio button and type the IP Address into the field of IP address of DMZ host, then click Apply.

  • Page 75: Nat - Dynamic Dns

    Chapter 4:Web Configuration NAT - Dynamic DNS The Dynamic DNS (Dynamic Domain Nasme System) combines both functions of DNS and DHCP to map a dynamic IP into a fixed domain name. This page allows you to access into virtual servers with a domain name and password.

  • Page 76: Firewall - Ip Filtering

    ADSL Router User Manual Firewall – IP Filtering The firewall is a software that interrupts the data between the Internet and your computer. It is the TCP/IP equivalent of a security gate at the entrance to your company. All data must pass through it, and the firewall (functions as a security guard) will allow only authorized data to be passed into the LAN.
  • Page 77 Chapter 4:Web Configuration Then, to add a new IP Filtering, click Add. This page provides some settings for you to adjust for adding a new outbound IP Filtering. Allow Traffic: No stops the data transmission, Yes lets the data pass through. Protocol: Here provide several default policies for security levels for you to choose.
  • Page 78 ADSL Router User Manual A new IP filtering setting for Outbound traffic is created in the web page. To edit the setting, please click the pencil mark to get into the editing page. To delete the setting, click the trash mark to erase it. To set another IP filtering, click Add again.

  • Page 79: Management

    Chapter 4:Web Configuration Management Diagnostics To check the link status for the network and your computer, a diagnostic test can guide you to detect the network problem. The testing items are listed and accomplished one by one. If the previous one is failed, than the items below that failed one will be failed too.

  • Page 80: Admin Account

    ADSL Router User Manual Admin Account This page allows you to type in the password for accessing into your DSL Router. For the Admin Account, the default setting for user password is admin. If you want to change the username and the password, please retype the new password in the Confirm field for confirmation.

  • Page 81: Interntet Time

    Chapter 4:Web Configuration Interntet Time The router’s clock must synchronize with global Internet’s time. The time you set in the screen will be adapted to system log. Update: Click this button to refresh the current time. Set Time by: The default setting is Manual. If you select Time Server, you don’t need to type in the time setting manually.
  • Page 82 ADSL Router User Manual There are 8 types for log level and display level for your choose. The default is Debugging. The mode selection includes Local, Remote and Both. The default one is Local. If you choose Remote or Both, all the events will be sent to the specified UDP port of the specified log server.

  • Page 83: Backup Config

    Chapter 4:Web Configuration Backup Config To backup your configuration for the router to your computer, you can use Backup Config web page to save the settings. And when you want to restore the settings in the future, simply open Backup Config web page and use Browse button to located the file and click Restore.

  • Page 84: Upnp For Xp

    ADSL Router User Manual UPnP for XP Universal plug and play (UPnP) is an architecture for pervasive peer to peer network connectivity of intelligent appliances and PCs of all form factors. It is designed to bring easy-to-use, flexible, standards-based connectivity to ad-hoc or unmanaged networks whether in the home, in a small business, public spaces, or attached to the Internet.
  • Page 85 Chapter 4:Web Configuration 7. Now, the NAT traversal function will be provided. The ADSL router will create a new virtual server automatically for mapping while the router detecting the computer running some Internet applications.
  • Page 86 ADSL Router User Manual...

  • Page 87: Chapter 5: Troubleshooting

    Chapter 5:Troubleshooting Chapter 5: Troubleshooting If the suggested solutions in this section do not resolve your issue, contact your system administrator or Internet service provider. Problems with LAN PCs on the LAN cannot get IP addresses from the ADSL Router. The chances are that the interface used as DHCP server is modified and the client PCs do not renew IP addresses.

  • Page 88: Problems With Upgrading

    ADSL Router User Manual Request time out Then the DNS is not reachable. Check your DNS setting on the ADSL Router. Problems with Upgrading The following lists the error messages that you may see during upgrading and the action to take. Error: All the ADSL LEDs light up and cannot light off as usual.

  • Page 89: Chapter 6: Glossary

    Chapter 6: Glossary Chapter 6: Glossary ARP (Address Resolution Protocol ) ARP is a TCP/IP protocol for mapping an IP address to a physical machine address that is recognized in the local network, such as an Ethernet address. A host wishing to obtain a physical address broadcasts an ARP request onto the TCP/IP network.
  • Page 90 ADSL Router User Manual configured and mapped to a private workstation address when accesses are made through the gateway to a public network. For example, the ADSL Router is assigned with the public IP address of 168.111.2.1. With NAT enabled, it creates a Virtual LAN. Each PC on the Virtual LAN is assigned with a private IP address with default value of 192.168.1.2 to 192.168.2.254.
  • Page 91 Chapter 6: Glossary the cells belonging to the same connection can be distinguished. A unique and separate VPI/VCI identifier is assigned in advance to indicate which type of cell is following, unassigned cells, physical layer OAM cells, metasignaling channel or a generic broadcast signaling channel.
  • Page 92 ADSL Router User Manual...

  • Page 93: Appendix A: Specifications

    Appendix A: Specifications Appendix A: Specifications Interface One RJ-11 port for ADSL connection Four RJ-45 ports for IEEE 802.3/802.3u 10/100 Base-T auto-sensing and auto-crossover Ethernet connection One hidden reset button for restoring to factory default settings Regulatory EMI: FCC part 15 Class B, CE Approvals and Immunity: FCC part 68 Class B Compliance...
