MER

ISP
(Internet Service Provider)
AAA
RDAIUS
Server
*BRAS: Broadband
Remote Access Server
Description:
In this deployment environment, we make up a private IP network of 192.168.1.1.
NAT function is enabled to support multiple clients to access to Internet.
In this example, the Wireless IAD acts as a NAT device which translates a private IP
address into a public address. Therefore multiple users can share with one public IP
address to access the Internet through this IAD. The public address can be a static
public address that is pre-assigned by ISP or a dynamic public address that is
assigned by the ISP DHCP server.
Configuration:
1. Start your browser and type 192.168.1.1 in the URL box to access ADSL
web-based manager.
2. Go to Quick Start – Quick Setup. Uncheck Auto Scan Internet Connection
(PVC). Key in the VCI and VPI value, e.g.,
VPI – 0
VCI – 37
Then click the Next button.
3. On the Configure Internet Connection – Connection Type page, select
Bridging and then click the Next button.
4. On the WAN IP Settings page, select Obtain an IP address automatically;
then, select Obtain DNS server address automatically.
5. Check Enable NAT. Then click Next.
6. On the Configure LAN side Settings page, key in the IP address and subnet
mask for your LAN. Check DHCP Server On box, and enter the start and end
points, e.g.:
Primary IP address:192.168.1.1
Subnet Mask:255.255.255.0
Start IP Address:192.168.1.2
End IP Address: 192.168.1.254
Then key in the leased time that you want. And click Next
7. Check the network information on the Summary page. Make sure the contents
match the settings provided by your ISP. Click Finish.
8. Now the IAD is well-configured. You can access the Internet.
Chapter 3: Accessing the Internet

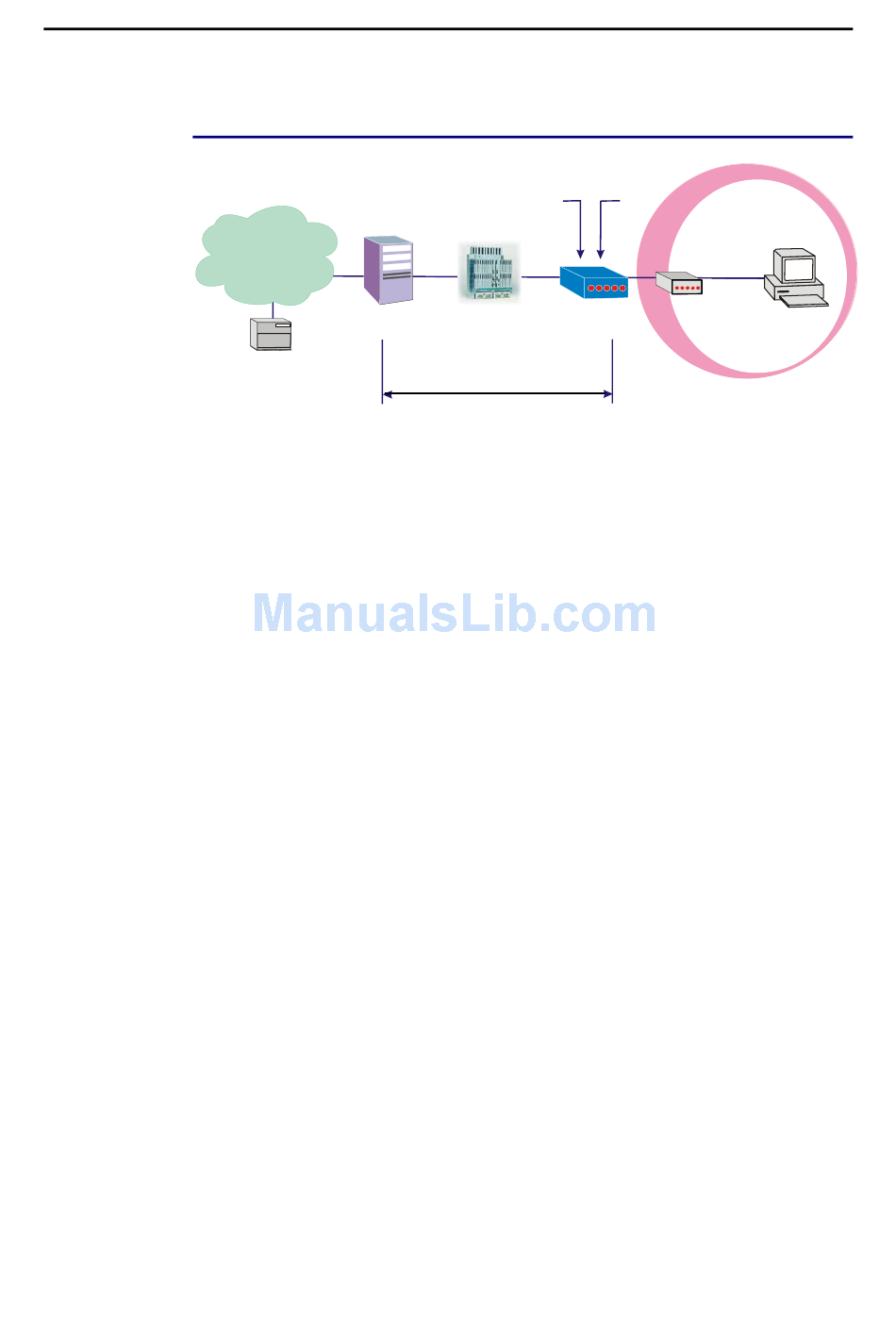

Public IP
assigned by BRAS
Loop
STM-1
DSLAM
BRAS
MER
Default Private IP
192.168.1.1
Ethernet
Wireless
Hub
IAD
PC
63
