Wireless IAD User Manual

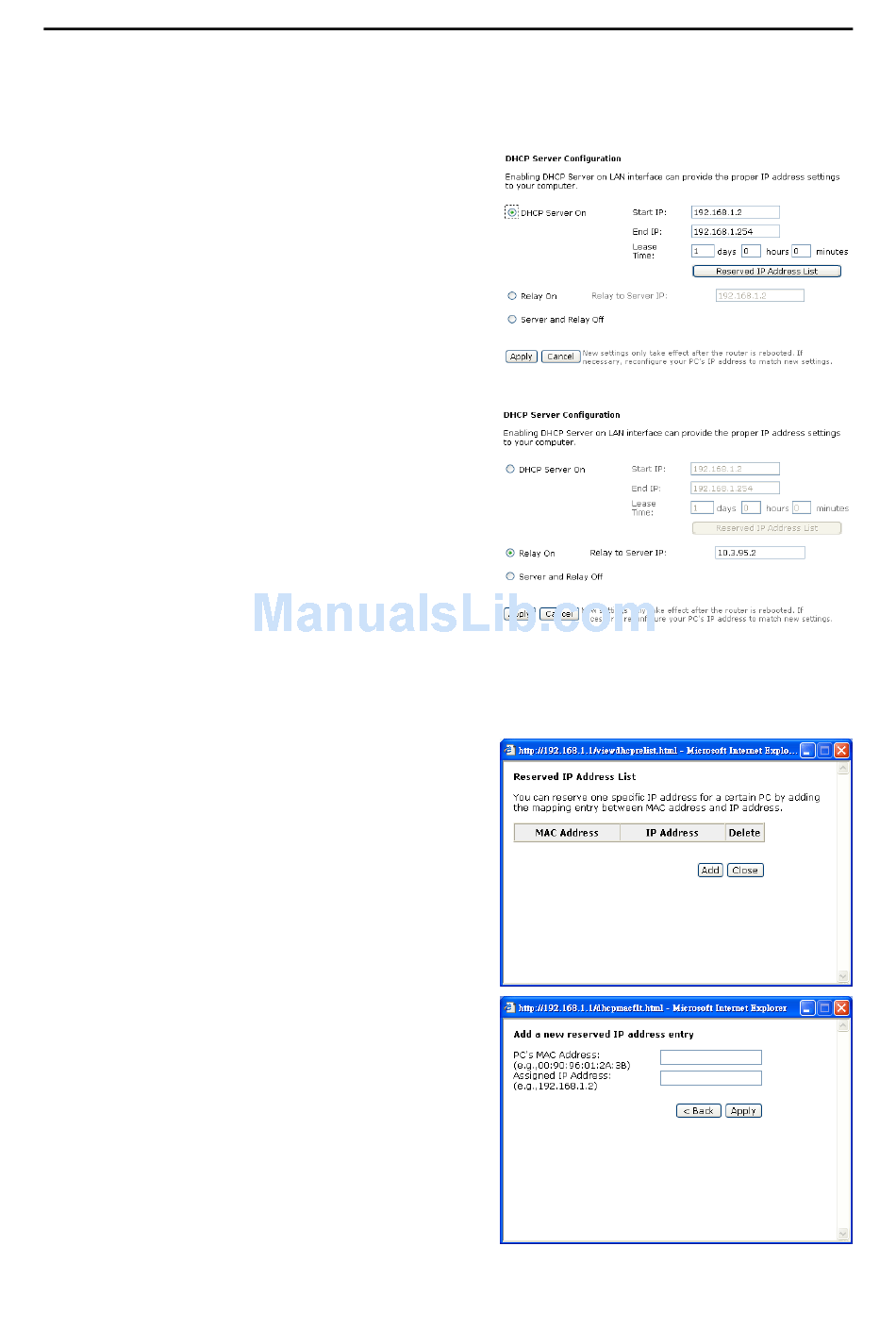

Local Network – DHCP Server
This allows you to set DHCP server on LAN interface.
DHCP Server On:
Check this item if DHCP service is
needed on the LAN. The IAD will
assign IP address and gateway
address for each of your PCs.
You have to key in Start IP Address,
End IP Address, and Lease Time.
The default lease time is 1day.
Relay On:
Click this button to have a relay
setting. And type the Server IP in the
IP field.
When the DHCP server is served by
another device rather than the IAD
itself, you can relay to that specific
server and enter the IP address of it,
as 10.3.95.2 in our example.
Server and Relay Off:
Check this item if DHCP service isn't
needed on the LAN.
Apply:
Click this button to activate the
settings listed above.
You can reserve one specific IP
address for a certain PC for particular
purpose. Simply add a mapping entry
of MAC address & IP address for that
PC by pressing the Reserved IP
Address List button. The window as
the one shown in the right column will
appear.
Click the Add button to open another
dialog window, shown as the right. On
PC's MAC Address and Assigned IP
Address boxes, please type the
correct information according to your
need and click Apply.
80
