Now we are going to map USB,
Wireless, and the first Ethernet port
together with the bridge mode PVC.
Click br_0_35 and press Add button,
then use the same way to add USB,
Wireless, and Ethernet1 to grouped
interfaces. The four items are moved
to the right box now.
When the setting is done, click Apply.
Now we can check the result of the
port mapping configuration. We have
a default group, in which PPPoE mode
will be applied through Ethernet port 2,
3, and 4, and we have another group
named bridge, in which the bridge
mode will be applied on USB,
Wireless, and Ethernet port1.
You may click to edit the created
group, press to delete it, or click Add
to create another group.

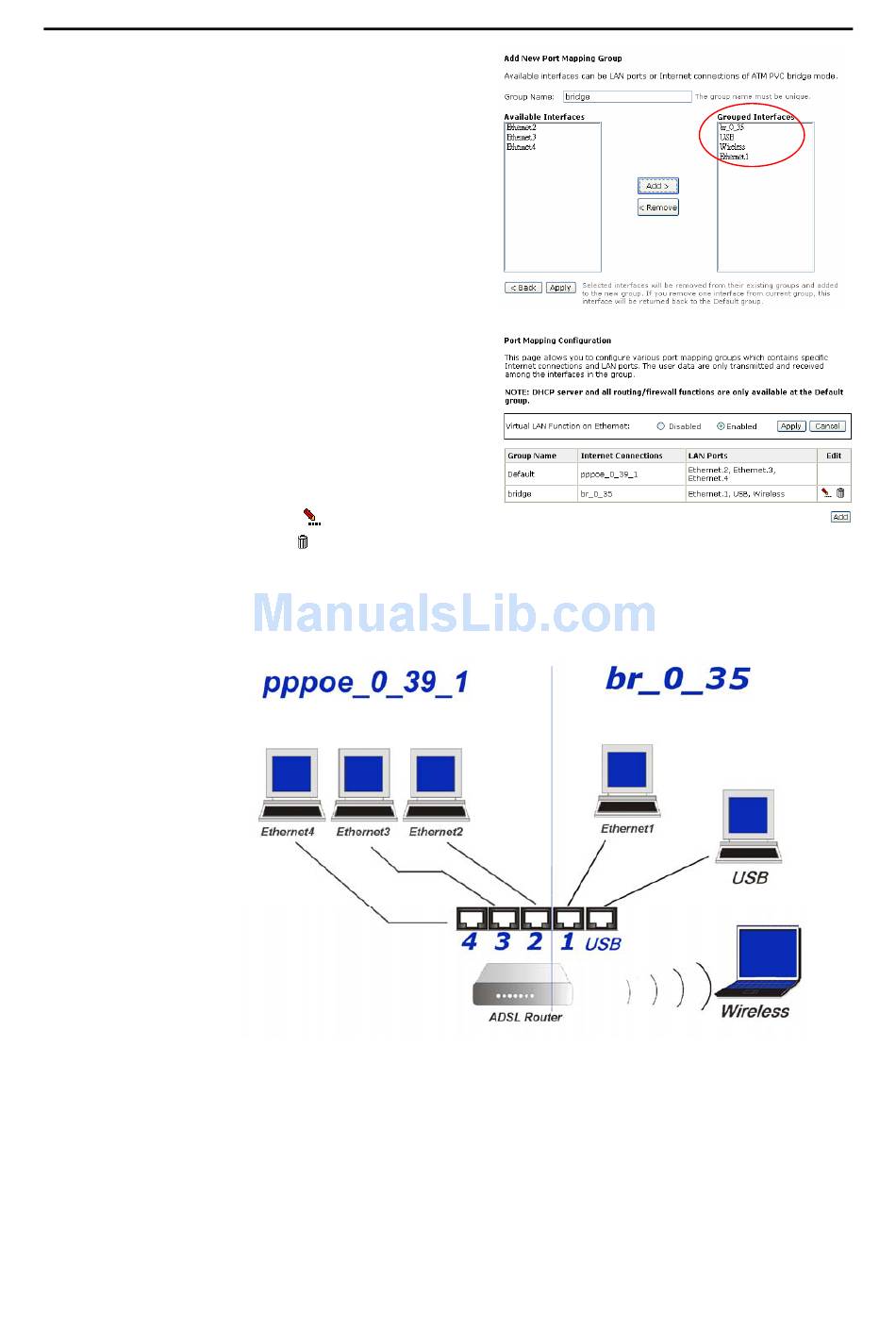

The following relationship figure illustrates the port mapping configuration.
Under this configuration, any devices that is connected to USB, Wireless, or
Ethernet port 1 will connect to the internet through the bridge mode PVC br_0_35,
while the PCs using Ethernet port 2, 3, and 4 will access the internet by the PPPoE
connection pppoe_0_39_1.
